• Model NO.：JTWN
• Total Power(Kw)：14-25
• Cutter Head Speed(Rpm)：3800
• Cutter Head Diameter(mm)：158
• Shaving Depth(mm)：0.5-2
• Max. Log Input Length(Cm)：140
• Max.Log Input Width(Cm)：60
• Working Distance(mm)：1400-1700
• Weight(Kg)：2480-3130
• Transport Package：Container
• Trademark：Jiutian
• Origin：Henan, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. JTWN Total Power(Kw) 14-25 Cutter Head Speed(Rpm) 3800 Cutter Head Diameter(mm) 158 Shaving Depth(mm) 0.5-2 Max. Log Input Length(Cm) 140 Max.Log Input Width(Cm) 60 Working Distance(mm) 1400-1700 Weight(Kg) 2480-3130 Transport Package Container Trademark Jiutian Origin Henan, China Production Capacity 20 Sets/Month

Product Description

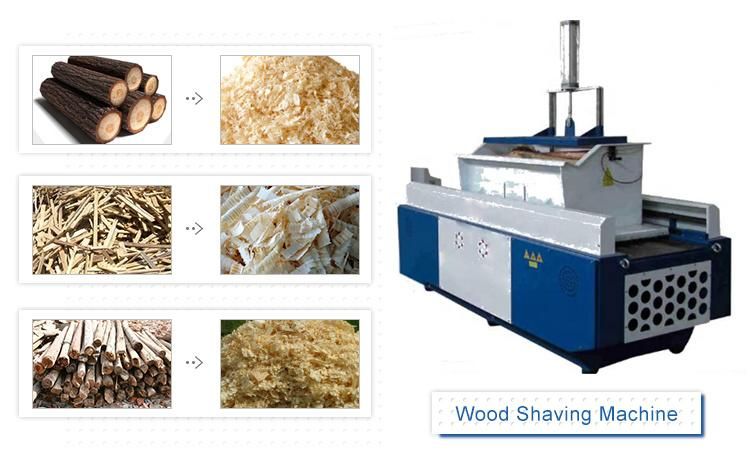

Wood Shavings MachineProduct Introduction
  The wood shaving machine produced by our company is a new product that adopts new technology and then improves it according to the needs of wood shavings and the current status of wood. This wood shaving machine can process all kinds of wood (such as sticks, branches, logs, furniture scraps from furniture factories, waste wood branches, etc.) into batches of thin wood shavings with uniform thickness. The wood enters the machine through the feed port and is sliced by the blade inside the machine to punch the shavings. The size and thickness of the shavings are even, which is not much different from the wood shavings produced by the wood factory, it also saves time and labor. The use of wood shavings: it can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.
  Zhengzhou Jiutian Machinery is a professional manufacturer of wood shaving machines. This poplar shaving machine can process finished wood or waste wood with a length of 45CM to 140CM. The product structure is advanced, the energy consumption is low, the environment protection is efficient, and you can adjust the shavings to different sizes according to your different uses. The produced shavings have high quality, the blade has high wear resistance and long service life. The hydraulic power unit imported from Germany is used to ensure the continuous work and stability of the hydraulic tie rod.
Working Principle1. Put the log into the feeding port. When the machine is started, rotate it back and forth, and press it down to the plane of the machine planer. After cutting with the knife and stick, blow out the cabinet under the airflow.2. The wood shaving machine body is mainly composed of the casing, knife roll, motor, power distribution cabinet, hydraulic system, and other parts. Its base is welded with high-strength steel plates, which is the supporting foundation of the whole wood shaving machine.3. The blade mounted on the knife roller is a professionally manufactured blade bolt. The blade is fixed on the knife roller by a pressure block; it can be adjusted up and down within a certain range according to the thickness of the shavings.4. Wood shaver knife roller: Stop the machine, open the cover, and replace the blade.Characteristics
1. No need for civil engineering;
2. Electrical control systems are imported from Europe;
3. Four-axis planing (increasing shavings yield);
4. The size and thickness of the shavings can be adjusted arbitrarily (to meet the needs of different markets);
5. Adjust the number of compressions according to the number of materials to achieve energy saving and emission reduction;
6. No other wearing parts except knives (supporting sharpener equipment, knives can be used for many times);
7. The transmission part adopts hydraulic technology to ensure the stability of the equipment operation and avoid crashes;
8. The overall structure is made by laser cutting and CNC machining center to ensure the interchangeability of machine parts;
9. The high degree of automation, equipped with an automatic feeding system, to achieve uninterrupted feeding, greatly reducing labor costs.

Applications
  The wood shaving machine can process logs, branches, and boards edge into shavings. The shavings produced are the same as the shavings produced by the furniture factory. The fully automatic feeding equipment greatly improves the production speed and saves time and labor.
  It can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.
Technical Parameters

Model	JTWN-166-2	JTWN-166-4
Number of cutter heads(piece)	2	4
Length of the blade(cm)	60	60
Number of blades(piece)	7*2=14	7*4=28
Power supply	380v-50hz-3p	380v-50hz-3p
Total power(kw)	14	25
Cutter head speed(rpm)	3800	3800
Cutter head diameter(mm)	158	158
Shaving depth(mm)	0.5-2	0.5-2
Max. Log input length(cm)	140	140
Max.log input width(cm)	60	60
Working distance(mm)	1400	1700
Machine dimensions(cm)	333*158*138	382*158*138
Weight(kg)	2480	3130
Capacity(kg/h)	800-1500	1500-2000

Our Company

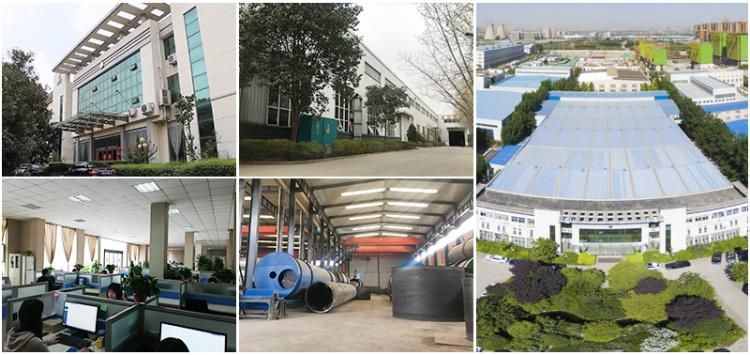

    Zhengzhou Jiutian Technology Machinery Co., Ltd. is located in Zhengzhou city, Henan province, our machine has exported to more than 30 countries and regions and all of our products are approved CE quality inspection certificates.

Pre-sale services:
Act as a good advisor and assistant of clients; enable them to get rich and competitive
from the returns of their investment.
1) Select a suitable equipment model.
2) Design and manufacture products according to clients' special requirements.
3) Train technical personnel for clients.
4) Professional suggestion for the customer.

Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
1)take photos(including raw material, semi-products, final products, and loading products)
1) Pre-check and accept products ahead of delivery.
2) Prepare all clearance documents, so that the customer clearance smoothly.

After-sale services:
Provide considerate services to minimize clients' worries.
1) Provide civil engineering drawings of the equipment.
2) Free training(including installation, maintenance) for every customer.
3) Install and debug the equipment, ensure the dryer running smoothly.
4) Examine the equipment regularly.
5) Take the initiative to eliminate the troubles rapidly at the site.
6) Distribute the guarantee fittings door-to-door.
7) Provide technical exchange and support.

Contact Us
If you are interested in our product, or if you have any questions, please feel free to contact us. We will reply to you within 24 hours!
