• Model NO.：MJ143A
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• Maximum processing width：320mm
• Maximum processing thickness：110mm
• Maximum blade diameter：400mm
• Minimum sawing length：400mm
• Feeding speed：5-21m,min
• Saw shaft diameter：50mm
• Saw shaft speed：3800m,min
• Saw shaft motor power：37kw
• Total power：42.3kw
• Air pressure：0.6MPa
• Dimensions：3200*1200*1600mm
• Machine weight：2000kg
• Saw shaft lifting motor power：0.55kw
• Feed motor power：4kw
• Voltage：380V 50Hz 3Phase
• Transport Package：Films
• Specification：3200*1200*1600mm
• Trademark：ZICAR
• Origin：China
• HS Code：846591
• Production Capacity：100

Basic Info.

Model NO. MJ143A Certification CE Customized Customized Condition New Color Customized Maximum processing width 320mm Maximum processing thickness 110mm Maximum blade diameter 400mm Minimum sawing length 400mm Feeding speed 5-21m/min Saw shaft diameter 50mm Saw shaft speed 3800m/min Saw shaft motor power 37kw Total power 42.3kw Air pressure 0.6MPa Dimensions 3200*1200*1600mm Machine weight 2000kg Saw shaft lifting motor power 0.55kw Feed motor power 4kw Voltage 380V 50Hz 3Phase Transport Package Films Specification 3200*1200*1600mm Trademark ZICAR Origin China HS Code 846591 Production Capacity 100

Product Description

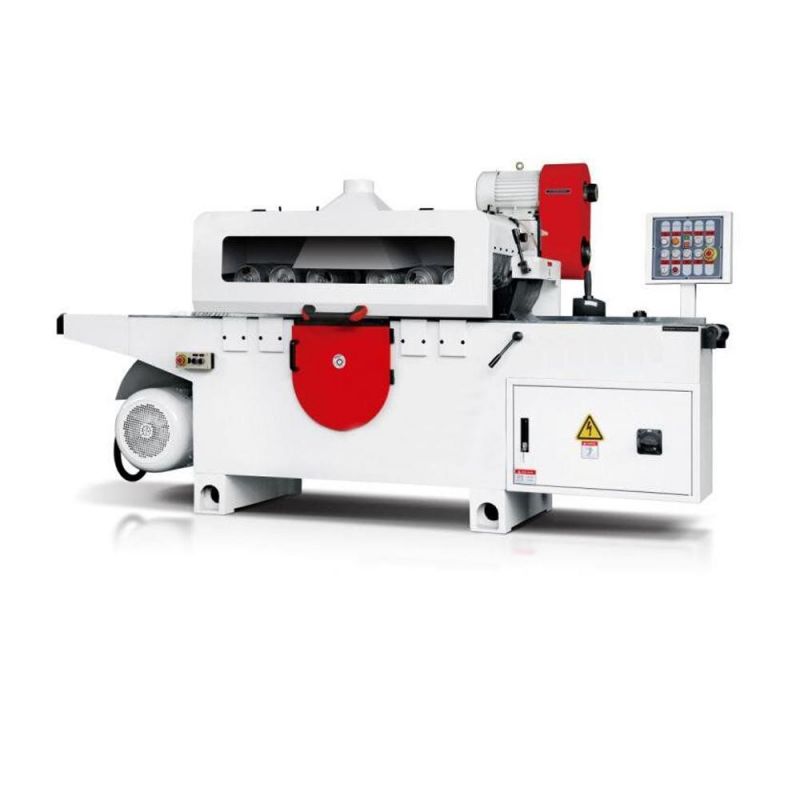

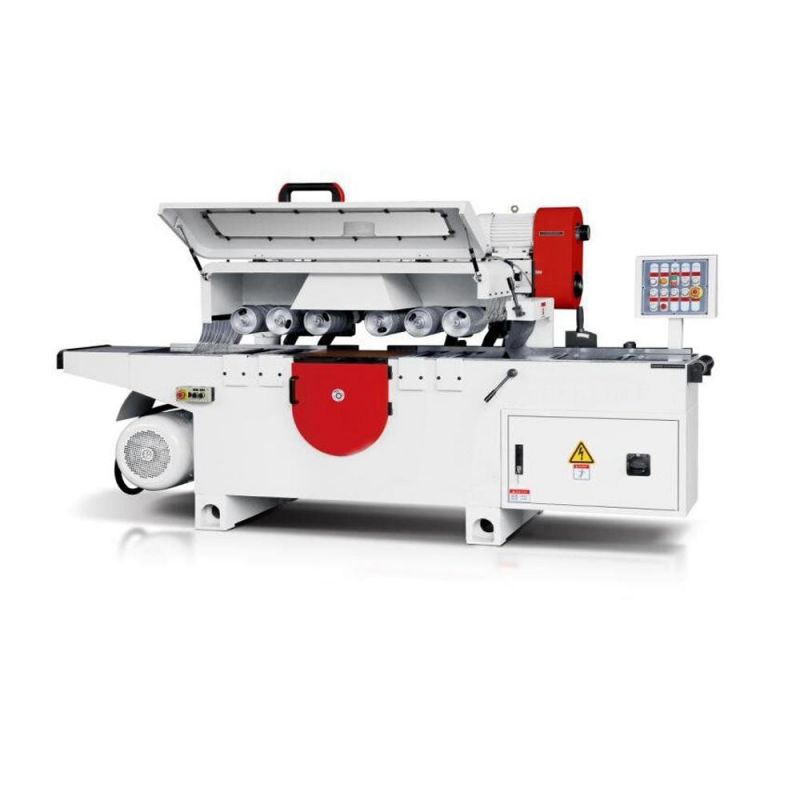

 ZICAR Wood Multi MJ143A Good Quality Multi-ripping Rip Saw Blade


Features
 1.The working bed is welded by high-quality steel plate and treated with aging, it's strong enough without deformation.

2.Press roller body and main shaft sleeve are made of high-grade cast iron, after aging, to ensure the machine has high reliable stability and accuracy retention.

3.The main shaft is processed with special materials and special processes, with high precision and strong durability.

4.The new panel design is beautiful and convenient to handle, to adjust the speed.

5.With triple safety rebound devices.

6.Completely sealed safe cover can avoid saw dust and isolate noise efficiently, also can protect workers.

7.The machine is mainly suitable for longitudinal sawing of large-width wood, and is composed of three major parts: bed table,roller box and main shaft.

Specifications

Model	MJ143A
Max.processing width	320mm
Max.processing thickness	110mm
Max.saw blade diameter	400mm
Saw blade thickness	4mm
Mini.sawing length	400mm
Feeding speed	5-21m/min
Saw shaft diameter	50mm
Saw shaft speed	3800m/min
Saw shaft motor power	37kw
Saw shaft lifting motor power	0.55kw
Feed motor power	4kw
Bed cover lifting motor power	0.75kw
Total power	42.3kw
Feed roller diameter	140mm
Air pressure	0.6Mpa
Dimensions	3200×1200×1600mm
Machine weight	2000kg

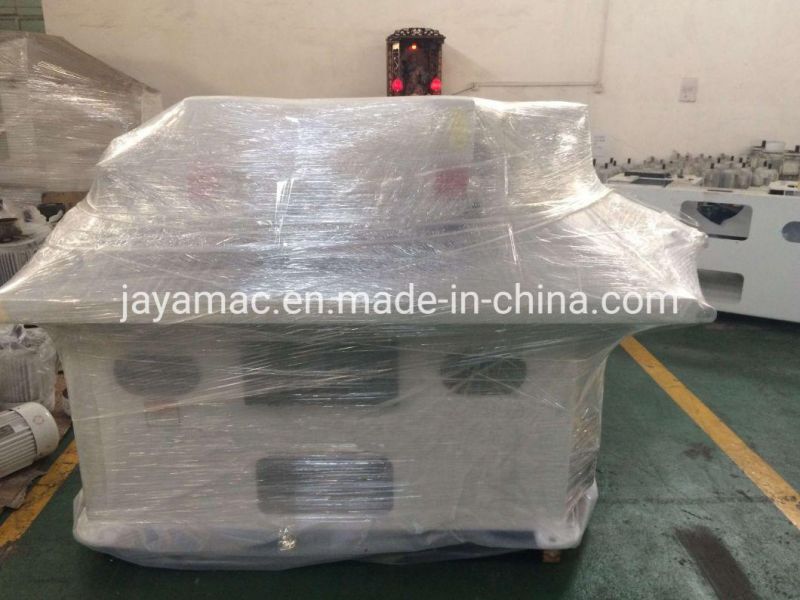

Packaging

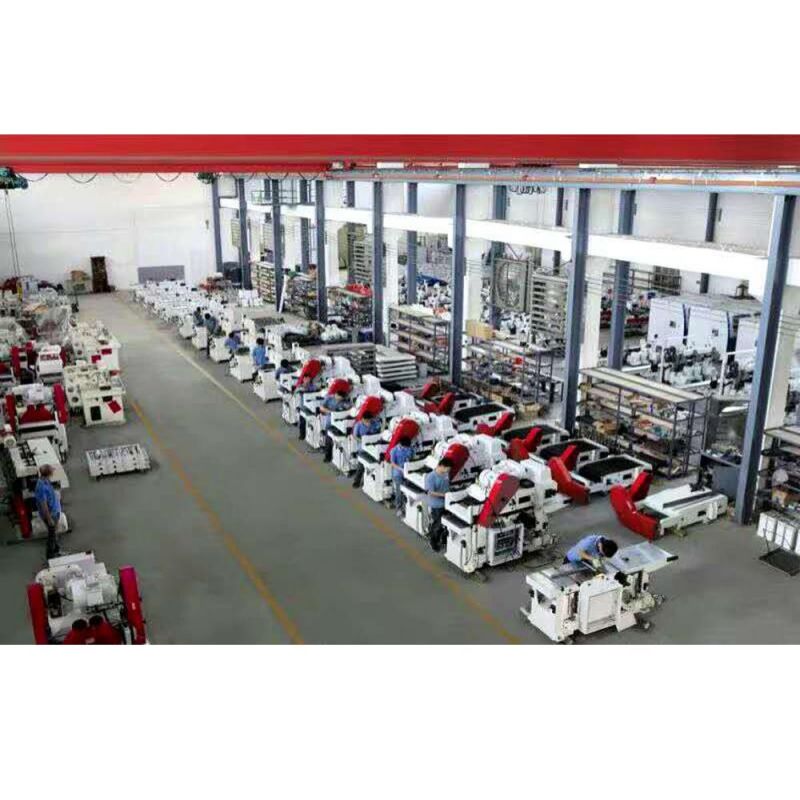

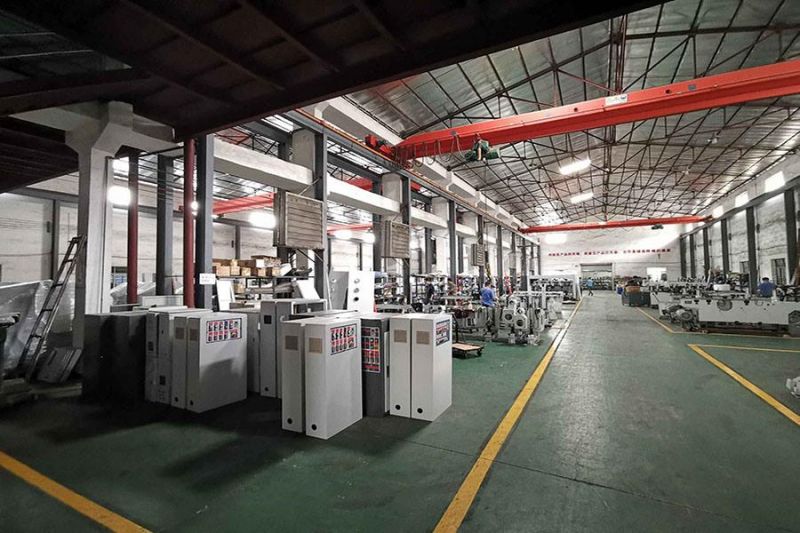

Our Company




JAYA INTERNATIONAL, has been dealing in woodworking machinery for more than 27 years,started from Jaya Trading at the beginning of 1992. In 2008, we made great investment andbecame the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over59 years' history of manufacturing all kinds of China- ·made woodworking machinery since1960, especially for the MQ & ML series combined woodworking machine, it has the extremelyimportant guiding function in the circle. During the past few years, with the development of thecompany and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood makingmachine and related hardware, ect.

Thanks for our top quality, excellent service and competitive price, thanks for all the supportfrom our customers, now our machine has got great reputation as the brand ZICAR forwoodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery,PLYTEC for plywood making machine all over the world with the following advantages:

* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
* ISO9001:2000, CE certified, 15 national patents
* One-stop service, meet needs of the customers from individuals to international companies.
* OEM service accepted.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
* lnquiries are typically answered within 8 hours.
* After sale Service: experienced and knowledgeable team of technical support
* Annual turnover: USD 20 million

We trust that our experience and intimate knowledge of this line will entitle us to yourconfidence.
The more you know us, the more you trust us!


FAQ

1.Our Payment Way?

L/C and T/T or other ways.

2.Delivery Time?

30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?

(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.

(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.

(3)24 hour technical support by email or calling.

(4)User-friendly English manual for machine using and maintaining.

4.Our srvices?

(1)One-stop service, meet needs of the customers from individuals to international companies.

(2)OEM service accepted.

(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.

(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
