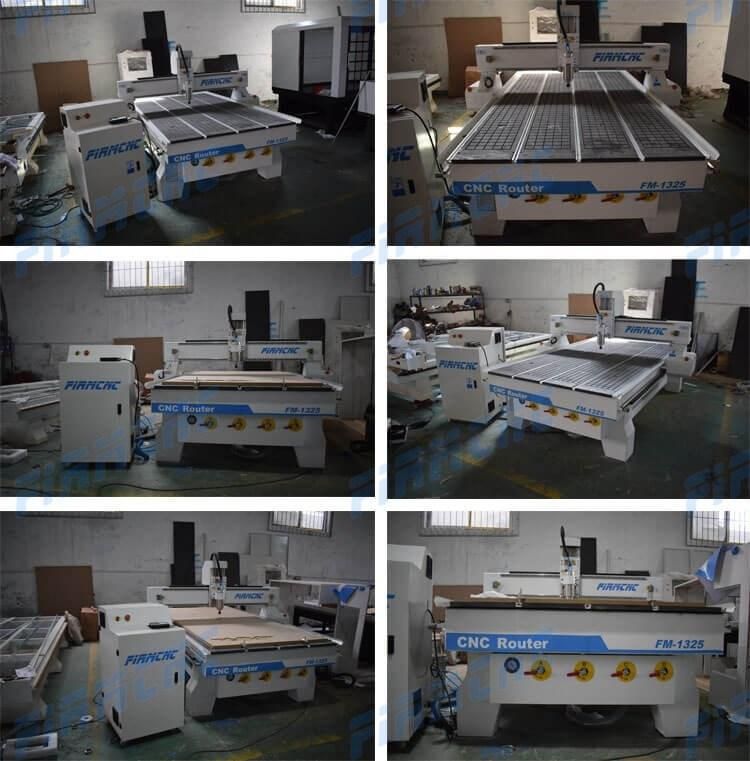

1300*2500mm Furniture Wood Carving CNC Router Machine
Jinan Firm CNC Equipment Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO
Base Info
- Model NO.：FM1325
- Customized：Customized
- Condition：New
- Color：Customized
- Product Name：CNC Router
- Table1325 CNC Router：1300*2500*200mm
- Spindle：3kw Water Cooling Spindle
- Table：Vacuum Table with T-Slot Table
- Guid Rail：Taiwan Hiwin Guid Rail
- Transmission：X Y: Gear Transmission Z: Ball Screw
- Inverter：Fuling,Delta Inverter
- Driver System：Stepper,Servo Motor and Drivers
- Contorl System：Weihong Nk105 DSP Control System
- Reposition Accuracy：0.02mm
- Transport Package：Standard Plywood Case
- Specification：CE, SGS, ISO
- Trademark：FIRMCNC
- Origin：Shandong, Jinan
- HS Code：8456100090
- Production Capacity：80 Sets, Months
Description
Basic Info.
Model NO. FM1325 Customized Customized Condition New Color Customized Product Name CNC Router Table1325 CNC Router 1300*2500*200mm Spindle 3kw Water Cooling Spindle Table Vacuum Table with T-Slot Table Guid Rail Taiwan Hiwin Guid Rail Transmission X Y: Gear Transmission Z: Ball Screw Inverter Fuling/Delta Inverter Driver System Stepper/Servo Motor and Drivers Contorl System Weihong Nk105 DSP Control System Reposition Accuracy 0.02mm Transport Package Standard Plywood Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Shandong, Jinan HS Code 8456100090 Production Capacity 80 Sets/ MonthsProduct Description
1300*2500mm Furniture Wood Carving CNC Router Machine
Application:
Wood-working industry: Ideally suitable for furniture decoration, musical instruments, wooden crafts, solid wood furniture, MDF paint-free door,
kitchen doors, bedside cabinets, windows and doors etc.
Decoration industry: Art model, Wall Art, decoration processing, gifts wrpping, etc.
Technical parameters:
Product name | 1325 cnc router |
Engraving area(W*L*thickness)(mm) | 1300*2500*200mm |
Spindle Power | 3.0KW water cooling spindle |
Spindle Rotate(rpm) | 0~24000rpm |
Motor Driver | Stepper motor |
Machine Structure | Industry square tube structure |
Transmission System | Taiwan TBI ball screw transmission |
X,Y,Z Rail | Taiwan HIWIN square rail |
Mechanical Accuracy | <0.03/300mm |
Support Format | G code or HPGL |
Working Voltage | AC220V/50Hz or 380V/50Hz |
Support Format | G Code |
Range of Application | Woodworking relief engrave ,Cutting , Hollow |
Machine Net Weight | 1500Kg |

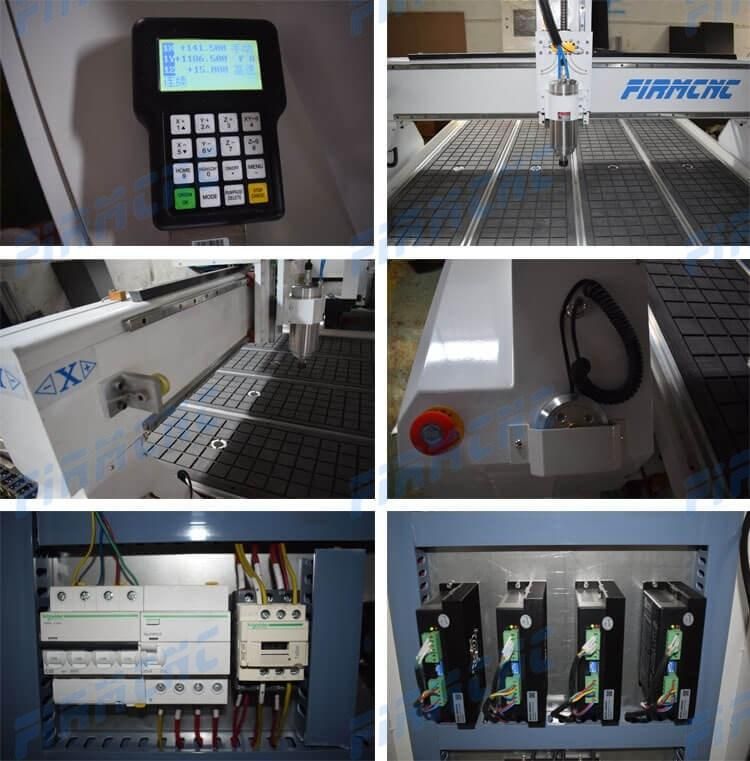

All 1325 cnc router accessory parts are original, such as water cooling spindle, Weihong NK105 DSP control system, etc. welcome to our factory to check the machine if possible.

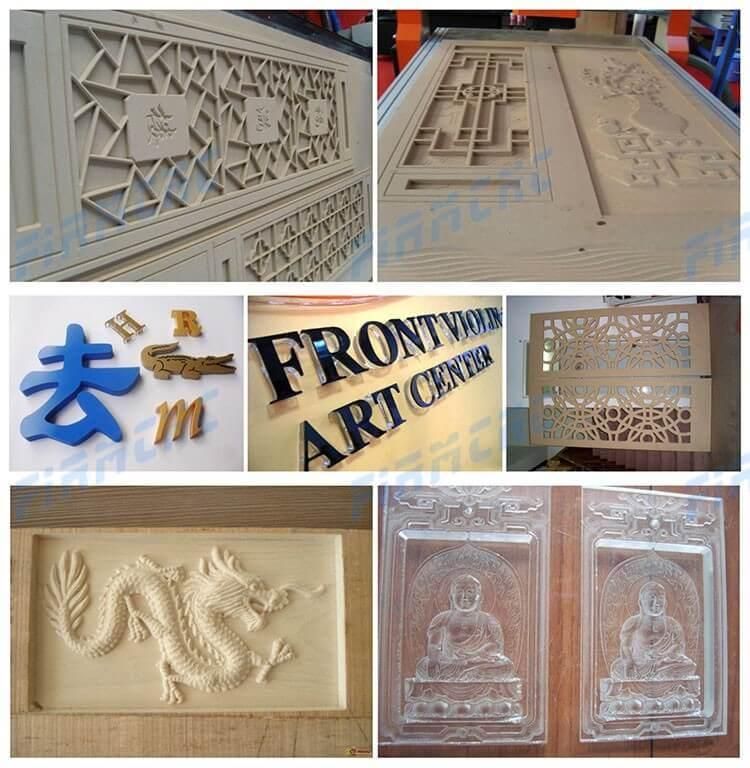

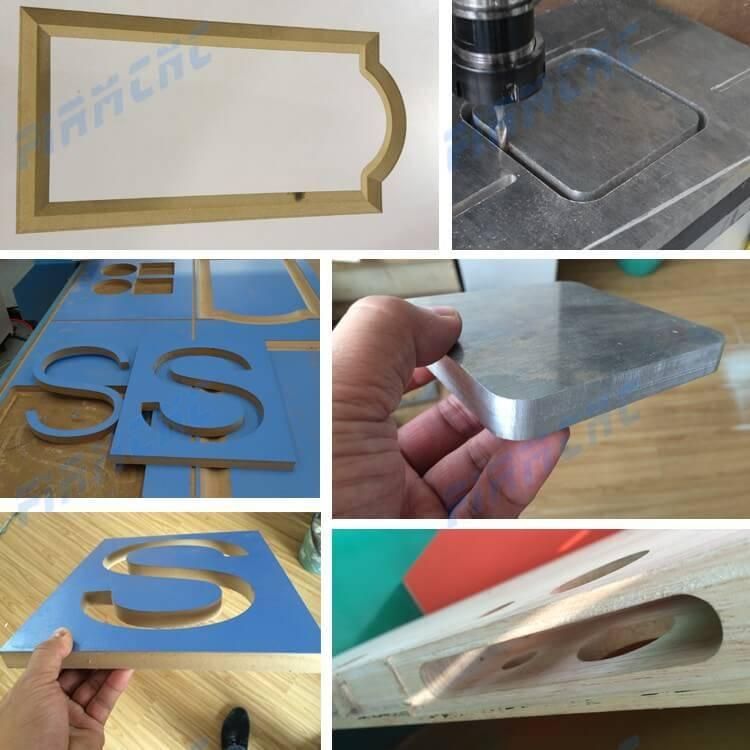

Samples
were produced by cnc machine router, no matter what materials, the samples can be produced for you according to your requirements.
CNC Router Process technical, it can keep the cnc router machine long service life.

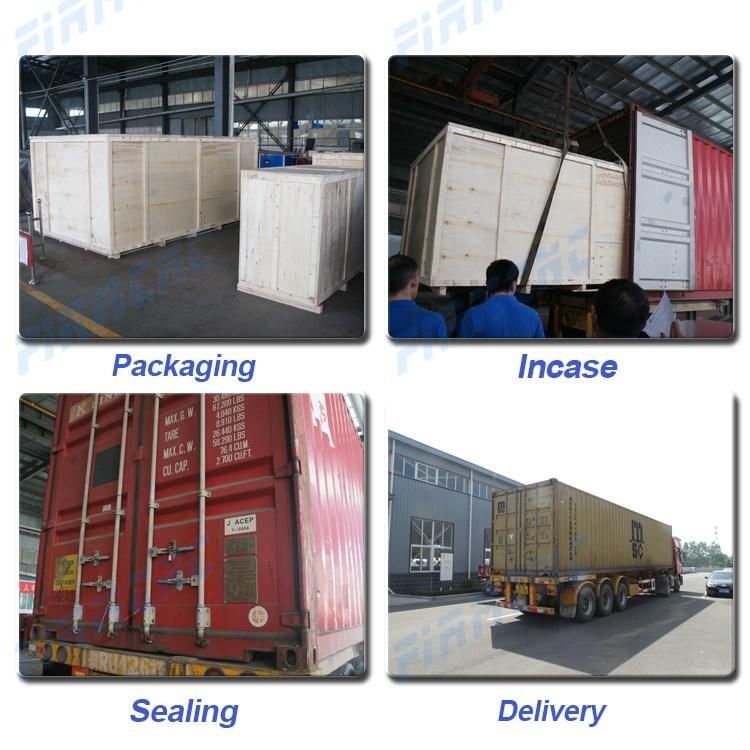

Firstly, packed the woodworking cnc router machine with plastic sheet for clearing and damp proofing.
Secondly, then put the cnc router in the plywood case for safety and clashing.
Thirdly, transport the plywood case into the container.
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

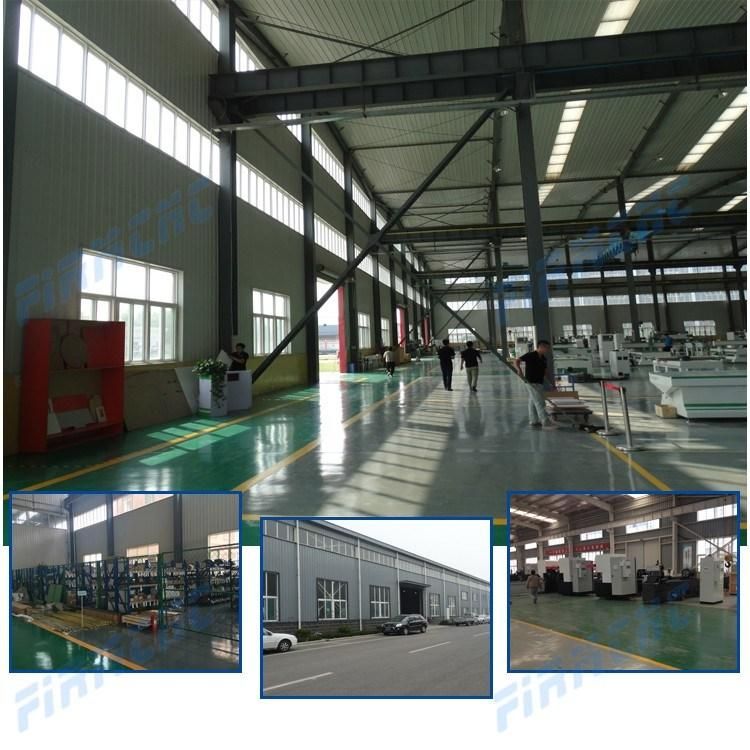

Jinan Firm CNC Equipment Co., Ltd is located in Jinan,Shandong PR, Founded in 2003. Loader of cnc router appliance manufacture. We are an all-round enterprice, which is comprehensive in R&D, manufacture, and sales on cnc router appliances.
