• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Table Size(Mm)：1600*3100
• Engraving Area：1300*2500*200
• Spindle Power：3.0kw Water Cooling Spindle
• Spindle Rotate(Rpm)：6000~24000
• Motors：Big Stepper Motors
• Rail：Taiwan Hiwin Square Rail
• Rack：Helical Rack
• Feeding Speed：Manual
• Data Transmission：PC Connect
• Support Format：G Code or Hpgl
• Transport Package：Wooden Box
• Specification：CE SGS ISO
• Trademark：FIRMCNC
• Origin：Shandong, Jinan
• HS Code：8456100090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Table Size(Mm) 1600*3100 Engraving Area 1300*2500*200 Spindle Power 3.0kw Water Cooling Spindle Spindle Rotate(Rpm) 6000~24000 Motors Big Stepper Motors Rail Taiwan Hiwin Square Rail Rack Helical Rack Feeding Speed Manual Data Transmission PC Connect Support Format G Code or Hpgl Transport Package Wooden Box Specification CE SGS ISO Trademark FIRMCNC Origin Shandong, Jinan HS Code 8456100090 Production Capacity 5000 Sets/Year

Product Description

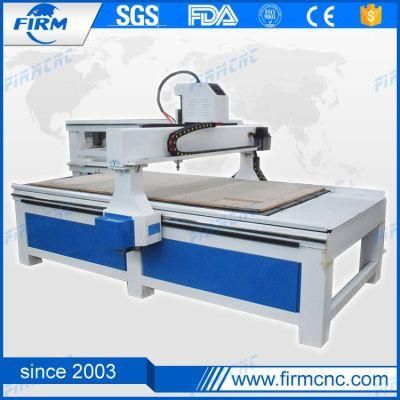

Multi-Fuction MDF Boards 1325 Woodworking CNC Router

Features:
1.Economical and good looks structure .
2.Stepper motor and leadshine driver ensure the mahcine high precise.
3.Taiwan TBI ball screw,make the mahcine working mre accurate.
4.Artcam design software,easy operate and learn.
5.DSP control system,offline working ,support continue when power/tools filure.
6.Dust collector,can suck the dust ,keep the machine clean and tidy.
7.Water tank ,ensure the machine can cut and engraving on metal and non-metal materials.
8.Rotary ,can processing round materials

Technical specification:

Brand	Firm
Model	FM-1325
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

Main configuration

Samples

Packaging & Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Services
# One year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours

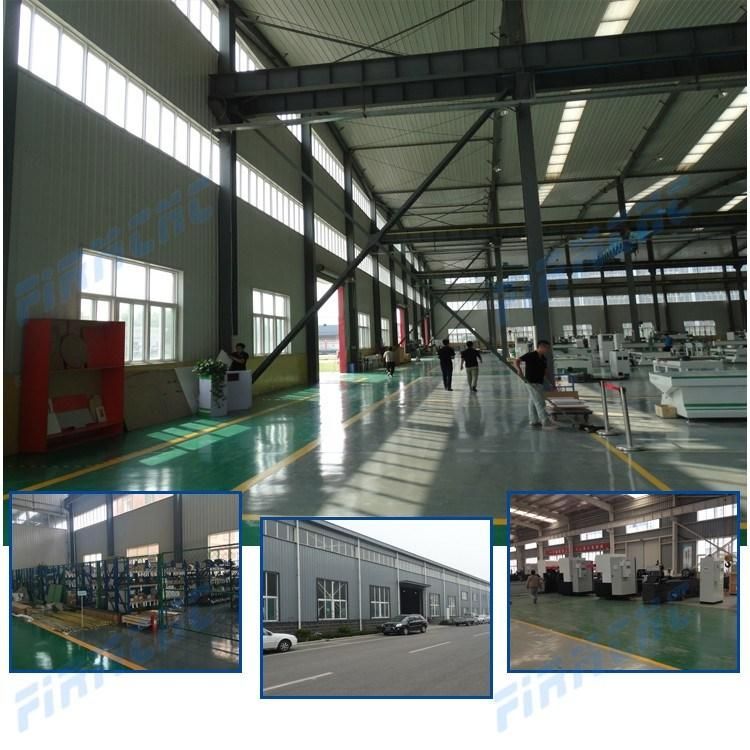

Company Information
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.



FAQ
Question 1: How long about the machine's guarantee?
Answer: 1 year
Question 2: How about your after service?
Answer: Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer: Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer: 30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
And the last I really want to tell you we also can produce the machine as your requested including the brand of the parts, the color of the machine body...If there are any questions please let us to answer.
