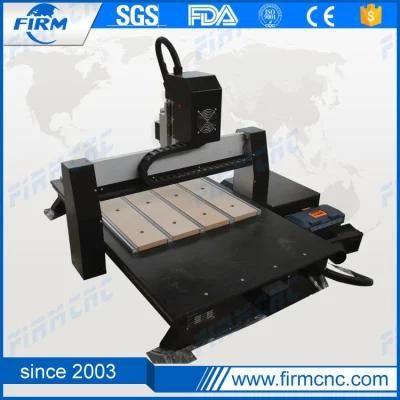

Mini CNC Milling Machine Portable Metal CNC Router 6090

Jinan Firm CNC Equipment Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：CE, ISO

Base Info

  • Model NO.：FM6090
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Key Word：Metal CNC Router
  • Engraving Area：600*900mm
  • Spindle Power：2.2kw Water Cooling Spindle
  • Spindle Rotate(Rpm)：6000~24000
  • Motor and Driver：Stepper Motor & Drivers
  • Rials：Square Guide Rails
  • Transmission：Tbi Ball Screw
  • Conrtol System：DSP or Mach3
  • Transport Package：Wooden Box
  • Specification：CE ISO SGS
  • Trademark：FIRMCNC
  • Origin：Jinan Shandong China
  • HS Code：8456100090
  • Production Capacity：30 Sets,Month

Description

Basic Info.

Model NO. FM6090 Customized Customized Condition New Color Customized Key Word Metal CNC Router Engraving Area 600*900mm Spindle Power 2.2kw Water Cooling Spindle Spindle Rotate(Rpm) 6000~24000 Motor and Driver Stepper Motor & Drivers Rials Square Guide Rails Transmission Tbi Ball Screw Conrtol System DSP or Mach3 Transport Package Wooden Box Specification CE ISO SGS Trademark FIRMCNC Origin Jinan Shandong China HS Code 8456100090 Production Capacity 30 Sets/Month

Product Description

Mini cnc milling machine Portable metal cnc router 6090

FM6090 is the main products of Jinan Firm CNC Equipment Co., Ltd and widely used in furniture, industrial equipment parts, decoration, building models, advertisement...It can cutting and engraving materials including MDF, wood to make the cabinet door, solid wooden door, computer desk, assembling desk, it also can engrave on the HDF, wood board, acrylic, plan cutting, 3D embossment...And we also have vacuum table which are professional for not too heavy materials as your requested.

Main features:
1. Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2. Powerful stepper motor driver, Imported linear guide rails, running smoothly, high accuracy, long time service.
3. Gear wheel/ rack transmission, high precision, could engrave 1mm letter clearly.
4. Water cooling spindle (24000rpm), apply to long time processing of wood products.
5. The advanced professional control system compatible with many instruction format, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
6. All the spare parts are provided by most famous brand, with stable high quality.
7. It can do three-dimensional processing fast, smoothly, engraving or cutting.
8. Our software is compatible with type3/artcam/castmate/weitai and so on.
9. Through the CE quality authentication

Technical specification :
BrandFirm
ModelFM6090
Working FormFull-automatic
Spindle Power2.2KW water cooling spindle
Spindle Rotate(rpm)6000~24000
Motor DriverStepper motor (Chinese servo motor or imported
servo motor is optional)
Tool Diameter(mm)Ø3.175,Ø4,Ø6, Ø12.7mm
Machine StructureIndustry square tube structure
Transmission SystemImported ball screw or high accuracy gear rack
X,Y,Z RailImported square rail
Mechanical Accuracy<0.03/300mm
Engraving Speed(mm/min)8000~12000mm/min
Feeding Speedmanual
Data TransmissionPC connect
Support FormatG code or HPGL
Working VoltageAC220V/50Hz or 380V/50Hz
Support FormatG Code or HPGL
Range of ApplicationWoodworking relief engrave ,Cutting , Hollow
Machine Net Weight1200Kg

Mini CNC Milling Machine Portable Metal CNC Router 6090
Main configuration
Mini CNC Milling Machine Portable Metal CNC Router 6090
Samples
Mini CNC Milling Machine Portable Metal CNC Router 6090

Packaging & Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Services:
# One year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours

Company Information:
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.
Mini CNC Milling Machine Portable Metal CNC Router 6090
Customer visit factory
Mini CNC Milling Machine Portable Metal CNC Router 6090

FAQ:
Question 1: How long about the machine's guarantee?
Answer: 1 year
Question 2: How about your after service?
Answer: Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer: Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer: 30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
