• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Key Word：CNC Wood Router
• Working Area：1300* 2500mm
• Contorl System：DSP,Nc-Studio,Mach3
• Working Voltage：AC380V,50Hz AV220,50Hz
• Motor：Step Motor ( Optional Servo Motor )
• Engraving Speed：10-15m,Min
• Guide Rail：Hiwin Square Guide Rail
• Transmission Way：Rack Gear
• Table Structure：Vacuum and T-Slot Table
• Software：Artcam , Type3
• Transport Package：Standard Export Woode Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Key Word CNC Wood Router Working Area 1300* 2500mm Contorl System DSP/Nc-Studio/Mach3 Working Voltage AC380V/50Hz AV220/50Hz Motor Step Motor ( Optional Servo Motor ) Engraving Speed 10-15m/Min Guide Rail Hiwin Square Guide Rail Transmission Way Rack Gear Table Structure Vacuum and T-Slot Table Software Artcam / Type3 Transport Package Standard Export Woode Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

Specification

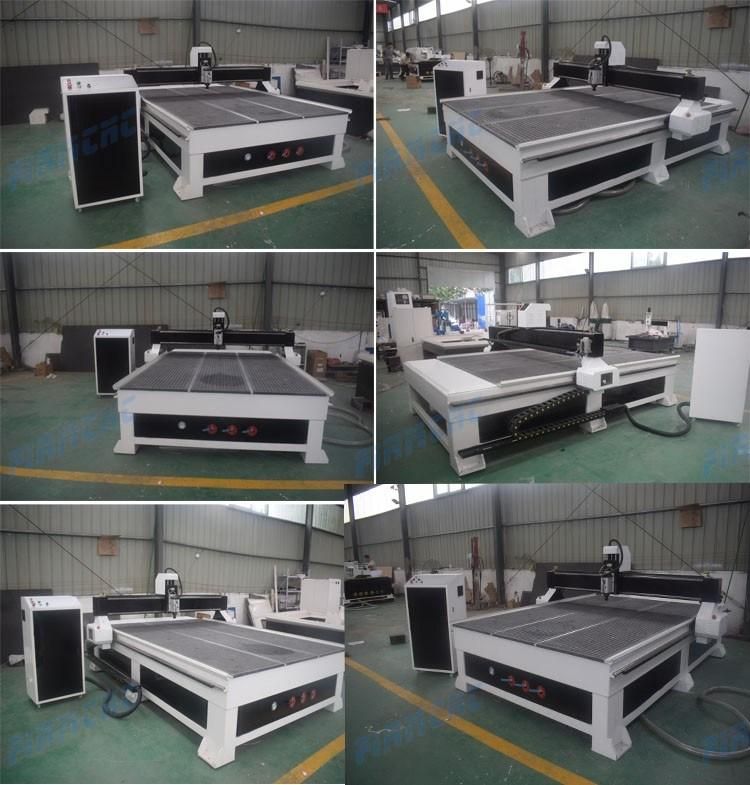

# 1325 wood carving machine
#T-slot table structure
#3.0kw water cooled spindle, step motor

Hot Sale CNC Wood Cutting Engraving Machine CNC wood Router

Features
1. CNC wood carving machine main features
1.3.0KW water cooling spindle, high precision. Vacuum table or aluminium profile table, high accuracy rack gear and oil lubrication system
2.CONTROL SYSTEM----standard is Mach3 controller, DSP/Ncstudio/Syntec for your choose,  DSP control system,
(dsp controller is offline working, support continue when power/ toos filure)
3.TABLE STRUCTURE----Aluminium profile/ vacuum table/ combination of aluminium and vacuum table
tool setting gauge
4.Stepper motor and leadshine driver ensure the mahcine high precise.
5.Taiwan TBI ball screw,make the mahcine working mre accurate.
6.Artcam design software,easy operate and learn.

Technical Data:

Description	Parameter
X,Y,Z working area	1300x2500x200mm
Table size (mm)	1450×2940mm
Resolution	±0.03/300mm
Repeatability	±0.03mm
Table Structure	Vacuum table
Lathe Structure	Welding steel structure
X,Y structure	Rack pinion, Hiwin linear rails
Z structure	TBI Ball screw, Hiwin square rails
Rated power	3Kw (without spindle)
Max. rapid	32000mm/min
Max. Working speed	25000mm/min
Spindle power	5.5Kw spindle
Spindle speed	0-24000RPM
Working mode	Stepper or servo
Working voltage	AC380V/50/60Hz,3Ph(Option 220V,3Ph)
Command code	G code
Operating system	Mach3 system (Ncstudio, Syntec,DSP )
Interface	USB
Memory	128M
Tool holder	ER25
X,Y working accuracy	<0.03mm
Software	Artcam, Type3 UcancameV9
Working temperature	Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation)
Packing size	3300X2100X2300mm
Net weight	1200KG
Gross weight	1500KG
Optional Spare Parts	Air-cooling spindle
	Double bag dust collection,vacuum pump
	rotary

Application
Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.
Mainly for the production of cupboard door, real wooed, the furniture and so on, also can be used in the production of MDF cutting.
Samples of wood cnc router

Our Services
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with different languages.
