• Model NO.：FM6090
• Customized：Customized
• Condition：New
• Color：Customized
• Control System：DSP,Nc-Studio,Mach3
• Motor Type：Stepper,Servo
• Spindle Power：2.2kw Water Cooling Spindle
• Table Surface：T-Slot Table
• Working Speed：8-15m ,Min
• Guide Rail：Taiwan Hiwin Square Linear Rail
• Transmission Way：Rack Gear
• Working Area：900 *600mm
• Rotary Axis Diameter：150mm, 200mm, 300mm etc
• Software：Artcam , Type3
• Transport Package：Wooden Box
• Specification：CE ISO SGS
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8456100090
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM6090 Customized Customized Condition New Color Customized Control System DSP/Nc-Studio/Mach3 Motor Type Stepper/Servo Spindle Power 2.2kw Water Cooling Spindle Table Surface T-Slot Table Working Speed 8-15m /Min Guide Rail Taiwan Hiwin Square Linear Rail Transmission Way Rack Gear Working Area 900 *600mm Rotary Axis Diameter 150mm, 200mm, 300mm etc Software Artcam / Type3 Transport Package Wooden Box Specification CE ISO SGS Trademark FIRMCNC Origin Jinan, China HS Code 8456100090 Production Capacity 30 Sets/Month

Product Description

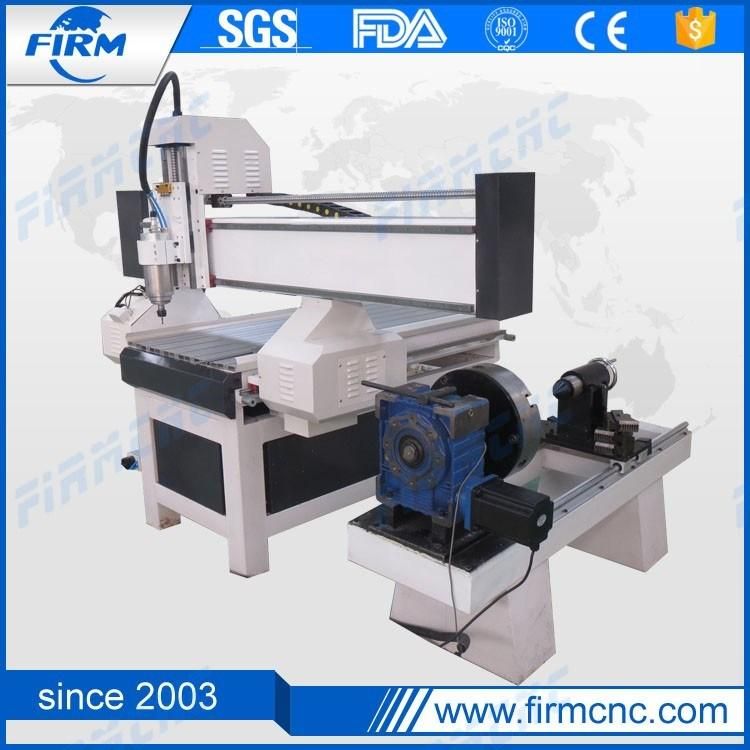

MDF Boards Furniture Door Woodworking CNC Machine



JiNan Firm CNC Equipment Co., ltd is one of the most famous professional manufacturer of all kinds of CNC Routers in China, because of the good service and the high quality products we have obtained the good raputation overseas.


Our Advertising CNC Router FM-6090 is a very popular products for sales, it widdly used in the
Advertising industry, it can engrave/cutting/carving PVC, chevron board, double color boards, Arcylic and so on, because of the good quality and the most compitive price we have recept many orders from all over the world.

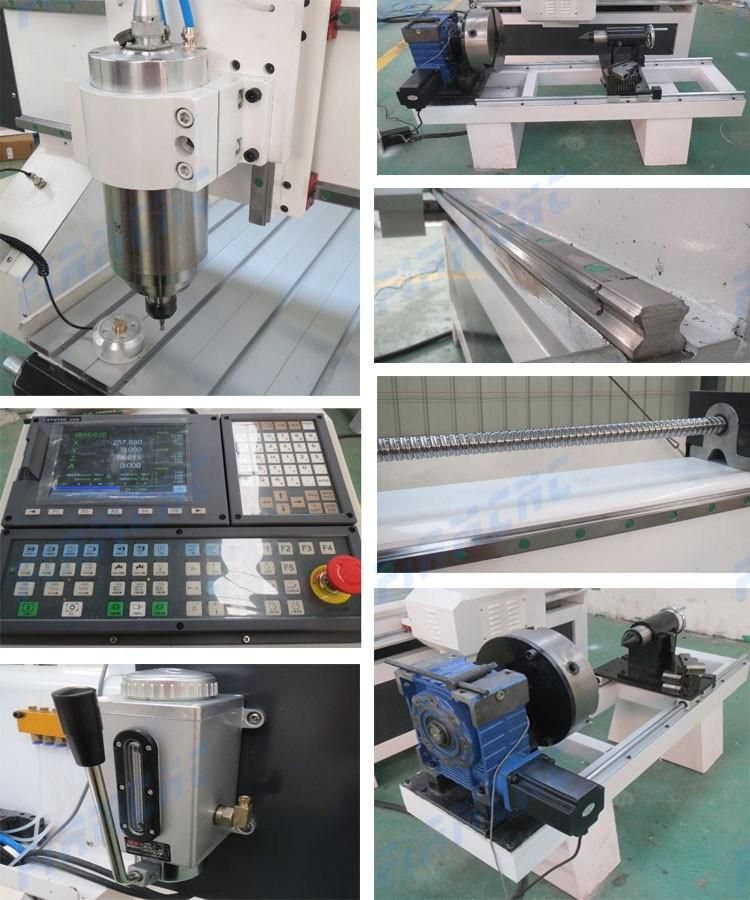

Performance Characteristics:
1Fuselage strong deformation, good rigidity, high precision, reliable performance, Durable in use.
2The z axis adopts imported high precision ball screw, the smooth movement, ensure high precision machine tools.
3X, y axis adopt rack driving, running speed is three times more than screw machine
4Main configuration or chooses import, joint venture brand components, stable performance
5table overall thickening, USES the whole cast iron large gantry
6Using domestic well-known brand water-cooled spindle, low noise, large cutting force, can ensure bulk processing for a long time.
7The whole machine structure design, good to ensure long service life.
8The application of high performance subdivision driver ensure machine high speed and precision.
9Compatible with Type3 / Artcam/Castmate/Proe/CAXA/soft wen tai, etc
10Have breakpoints, power failure continued carving function


Technical specification

Brand	Firm
Model	FM-6090
Working Form	Full-automatic
Spindle Power	2.2KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported  servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

Service:
# One year warranty for the machine
# Replacing all parts for free during warranty
# If necessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer technical service within 24 hours.



JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330        Fax : 0086-0531-69986330
Website: http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091

Last but most important, if you are interest in or have any questions about this CNC router, please contact us without any hesitate, we will offer the best service for you.
