• Model NO.：ELE CNC1325-4
• Customized：Customized
• Condition：New
• Color：Customized
• X,Y,Z Working Area：1300X2500X200mm
• Table Surface：Vacuum and T-Slot Working Table, 4 Zones
• Frame：New Style Heavy Duty Welded Structure
• X, Y Structure：Rack and Pinion Drive, #20 Hiwin Rail Linear Guide
• Z Structure：Hiwin Rail Linear Guide and Ball Screw
• Spindle Power：4.5kw Italy Hsd Air Cooling Spindle
• Spindle Speed：0-18000rpm
• Inverter：5.5kw Delta Inverter
• Drive Motors：Stepper
• Command Language：G Code
• Operating System：DSP A18
• Computer Interface：USB
• Rotary Device：200mm Diameter*2200mm Length
• Software Compatibility：Type3,Ucancamev9 Software, (Option: Artcam Softwar
• Collet：Er32
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

Table Surface

Vacuum and T-slot working table,4 zones

Frame

New style heavy duty Welded Structure

X, Y Structure

Rack and Pinion Drive, #20 Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Spindle Power

4.5kw Italy HSD air cooling spindle

Spindle Speed

0-18000RPM

Inverter

5.5kw Delta inverter

Drive Motors

Stepper

Working Voltage

380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)

Command Language

G Code

Operating System

DSP A18

Computer Interface

USB

Rotary device

200mm diameter*2200mm length

Collet

ER32

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

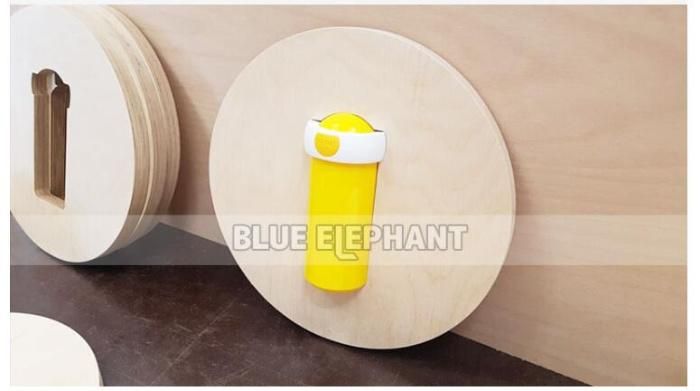

Sample & Application

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration
wood crafts; gift box; jewelry box

5. Others
Relief sculpture and 3D engraving and Cylindrical object.


Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions

After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.





Packaging & Delivery

Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.

Delivery Detail: Shipped in 25-30 working days after payment.

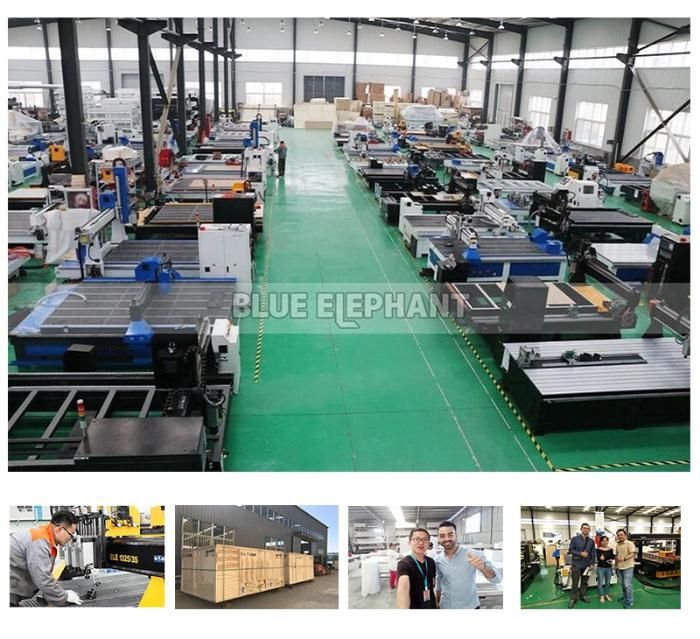

Company Introduction

Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
