• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC220V,3pH,50Hz(Option:380V)
• Dimension(L*W*H)：3050*1940*2200mm
• Spindle Power：1 Set 4.5kw and 2 Sets 3kw Italy Hsd Air Cooling S
• Control System：DSP A15 Control System
• Spindle Speed：0-18000rpm
• Inverter：5.5kw Taiwan Delta Inverter
• Working Area：1300*2500*200mm
• Linear Rail：Taiwan Hinwin,PMI 20# Linear Guide
• Motor and Driver：Stepper
• Structure：Thicken and Bigger Welded Steel Tube Frame
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELECNC-1325 Customized Customized Condition New Color Customized Voltage AC220V/3pH/50Hz(Option:380V) Dimension(L*W*H) 3050*1940*2200mm Spindle Power 1 Set 4.5kw and 2 Sets 3kw Italy Hsd Air Cooling S Control System DSP A15 Control System Spindle Speed 0-18000rpm Inverter 5.5kw Taiwan Delta Inverter Working Area 1300*2500*200mm Linear Rail Taiwan Hinwin/PMI 20# Linear Guide Motor and Driver Stepper Structure Thicken and Bigger Welded Steel Tube Frame Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

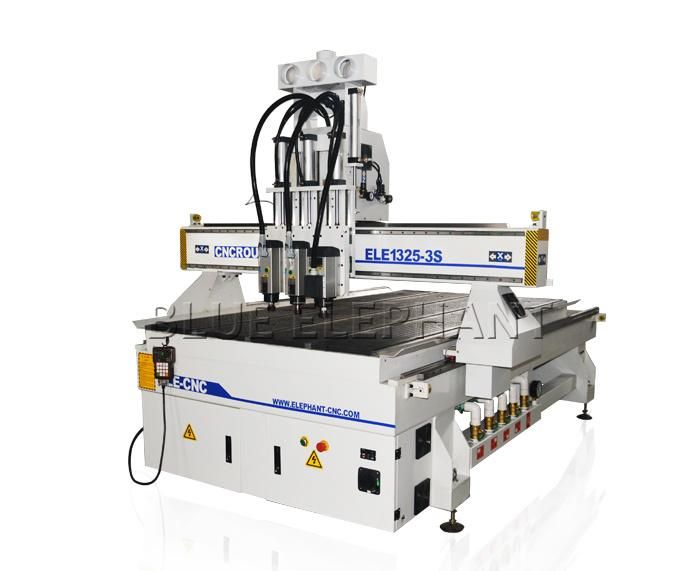

1325 pnumatic cnc router three heads cnc milling machine with three spindles

Advantages

• New type thicker and bigger heavy duty welded frame and gantry
• 2* 3 KW HSD + 4.5 KW HSD air cooling spindle with good quality for cutting and carving.
• YAKO 2811 bigger and stronger driver for long time working.
• DSP A15 handle controller ,very convenience for operation.

Features

Working size:1300*2500*200mm
Spindle:3kw*2 HSD air cooling spindle; 4.5kw HSD air cooling spindle

Inverter:5.5kw Taiwan Delta inverter

DSP A15 control system
Motor and driver: FL118 stepper motor and YAKO 2811 bigger and stronger driver

Working table:T-slot &vacuum work table
Taiwan HIWIN Linear Guide #20 for XYZ axis
Helical rack & gear transmission for XY axis
Taiwan TBI ball screw for Z axis

Japan Omron Limit switch

FrenchSchneider rotary safety switch
New type thicker and bigger heavy duty welded frame and gantry
5.5kw air type circulation vacuum pump

------Dust hood 4 pieces with 3 pipe and one support

------220 v 3phase 50 hz(380v for optional)

Parameters

Descriptions	Parameters
Modle	ELECNC1325-3S
Working area	1300*2500*200mm
Control system	DSP A15 control system
Spindle	1 set 4.5kw HSD air cooling spindle , 2 set 3kw HSD air cooling spindle
Spindle speed	0-18000RPM
Inverter	5.5kw Taiwan DELTA Inverter
Motor and driver	FL118 stepper motor , YAKO 2811 big driver
Voltage	220V, 3ph, 50Hz(380v for optional)
Linear rail	Taiwan HINWIN/PMI 20# linear guide
Table structure	New type thicker and bigger heavy duty welded frame and gantry
Table surface	Vacuum T-slot working table,4 zones
X,Y axis transmission	Helical rack and pinion drive for X,Y axis
Z axis transmission	Taiwan TBI 2510 ball screw for z axis
Vacuum pump	5.5kw air type circulation vacuum pump

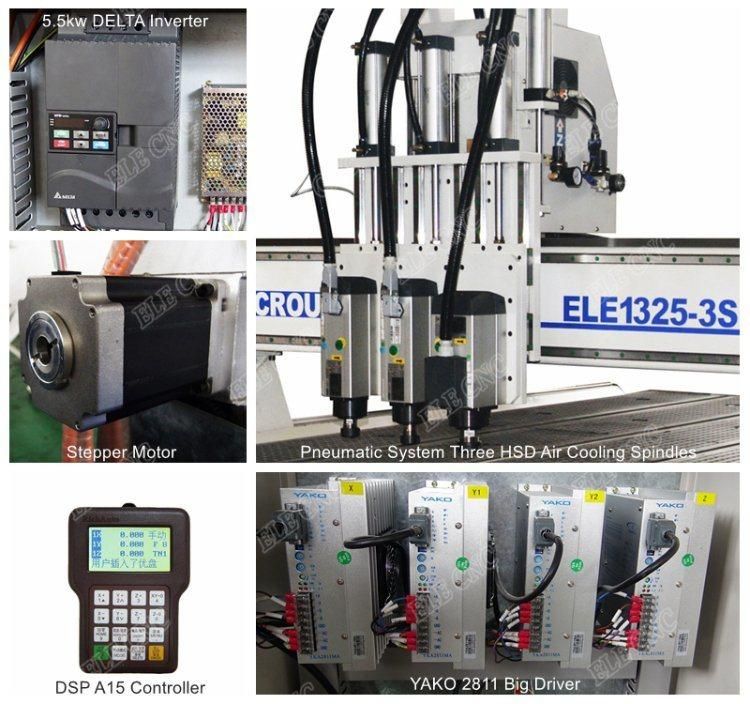

Product details

Applications

For wood , MDF , acrylic , mainly for doors , cabinet , furniture , etc.

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sign making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

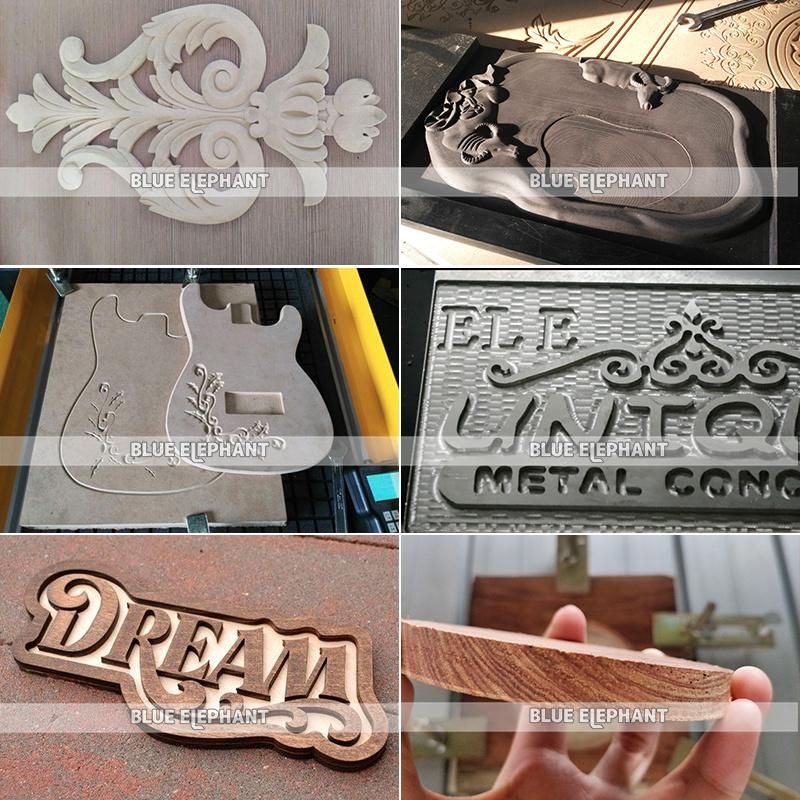

Samples show


Packaging & Shipping

Packaging Details: 1.Outside package:Standard marine export plywood case.
                               2.inner package:Stretch film and plastic film for humidity.
                               We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

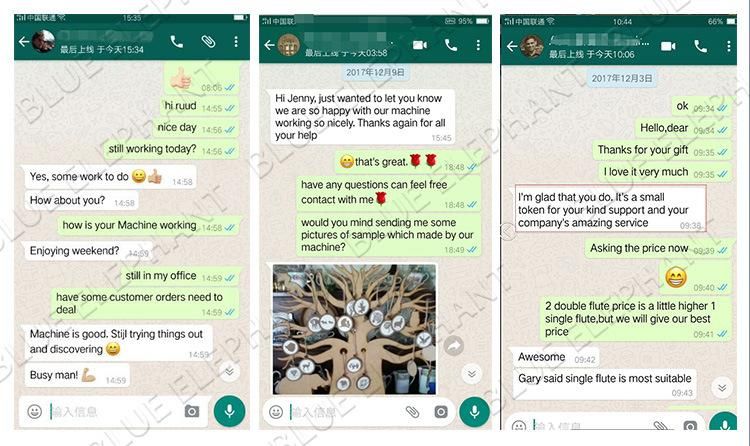

Customers Feedback





Services
1.Teach you professional cnc router machine technology.
2.Provide you lifelong cnc router technology support service.
3.One year for the whole machine, lifelong maintenance.
4.Within 24 hours to solve the problem you're facing, high efficiency, high quality.
5.Network video communication and online telephone service in our work day.
6.Engineers always stand by at any time for going abroad for after sales service face to face if you need.
7.Completely service system on pre-sales, in sales, after sales, protecting customer's constantly working, equipped with easy learned installation guide, maintenance guide, instructions for use, etc.
