2036 6s Multi Spindles CNC Router Wood Cutting Machine for Violin Making

Jinan Blue Elephant CNC Machinery Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Spindle Over
  • Spindle Number：One Head with Six Spindles
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：CE, ISO, SGS BV TUV

Base Info

  • Model NO.：ELECNC2036-6S
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Voltage：380V,220V, 3phase, 50,60Hz
  • Dimension(L*W*H)：3200*2140*1850mm
  • Spindle：6 Sets 2.2kw Water Cooling Spindle with 6 Pieces
  • Inverter：6 Sets 2.2kw Fuling Inverter
  • Motor：6 Sets 2.2kw Fuling Inverter
  • Driver：FL118 Bigger Stepper Motor and Yako2811 Driver
  • Collet：Er20
  • X, Y Structure：20#Taiwan Hiwin Linear Guide and Helical Rack
  • Transport Package：Standard Export Wooden Case
  • Specification：2000*3600*200mm
  • Trademark：BLUE ELEPHANT
  • Origin：Shandong, China
  • Production Capacity：200 Sets Per Month

Description

DescriptionsParametersProduct name2036 one head with six spindles cnc routerModle2036/6Working area2000*3600*200mmControl system

NC PM95A control system with computer control box

Spindle

6 sets 2.2kw water cooling spindle with 6 pieces spindle clamp

Spindle speed0-24000RPMInverter

 6 sets 2.2kw fuling inverter

Motor and driver

FL 118 stepper motor and YAKO 2811 bigger and stronger driver

Voltage380V, 3ph, 50HzLinear rail

Sweden ABBA #25 linear guide for all axis

Table structureNew type thicker and bigger heavy duty welded frame and gantryTable surface

T-slot work table,1400mm length

X,Y axis transmissionHelical rack and pinion drive for X,Y axisZ axis transmissionTaiwan TBI 2510 ball screw for z axislubrication systemManual lubrication system

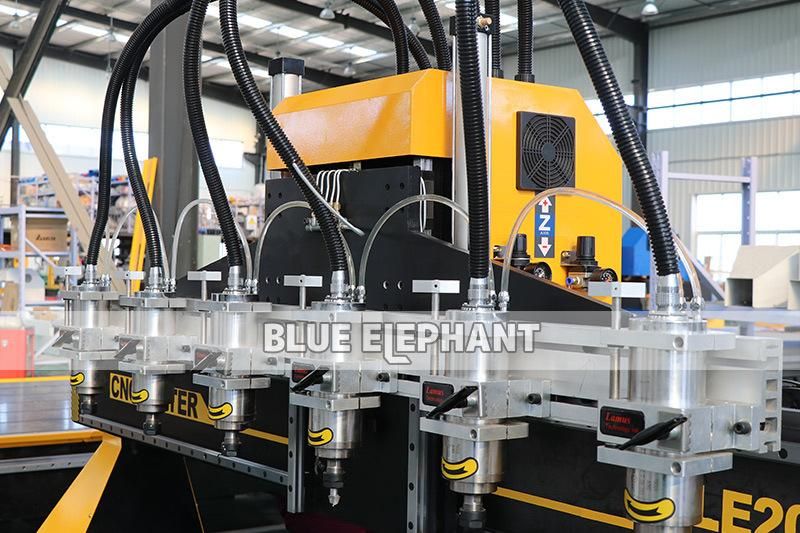

 Details
2036 6s Multi Spindles CNC Router Wood Cutting Machine for Violin Making
2036 6s Multi Spindles CNC Router Wood Cutting Machine for Violin Making

Applications

1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold


Packaging & Delivery

Packaging Details:  1.Outside package:Standard marine export plywood case.

                                  2.inner package:Stretch film and plastic film for humidity.

                                 We can package according to your requests.

Delivery Detail:  Shipped in 20 working days after payment.

2036 6s Multi Spindles CNC Router Wood Cutting Machine for Violin Making
Our Service

1.Teach you professional cnc router machine technology.
2.Provide you lifelong cnc router technology support service.
3.One year for the whole machine, lifelong maintenance.
4.Within 24 hours to solve the problem you're facing, high efficiency, high quality.
5.Network video communication and online telephone service in our work day.
6.Engineers always stand by at any time for going abroad for after sales service face to face if you need.
7.Completely service system on pre-sales, in sales, after sales, protecting customer's constantly working, equipped with easy learned installation guide, maintenance guide, instructions for use, etc.

Our Factory
2036 6s Multi Spindles CNC Router Wood Cutting Machine for Violin Making

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • We have our R & D department, Quality control department, and after sale & service department.
  • Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
  • We had got CE and ISO9001 certification always offer best quality machine.
  • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
  • Just looking forward to service every customer, like you.
2036 6s Multi Spindles CNC Router Wood Cutting Machine for Violin Making
