• Model NO.：ELE 1325
• Customized：Customized
• Condition：New
• Color：Customized
• X,Y,Z Working Area：1300X2500X200mm
• Spindle：Water Cooling Spindle
• Control System：DSP A11 Control System
• Drive Motors：FL118 Stepper Motor and Leadshine 860h Driver
• Table Surface：Vacuum and T-Slot Table
• Power(W)：10kw
• Weight：1700kg
• Spindle Speed：0-24000rpm
• Inverter：3.7kw Fuling Inverter
• Transport Package：Standard Export Wooden Case
• Specification：CE, FDA, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

T-slot vertical Table

Frame structure

Cast iron

X, Y Structure

20#Taiwan HIWIN Linear guide and helical rack

Z Structure

Ball screw and#20 Taiwan HIWIN Linear guide

Stepper Motor

FL118

Max. Rapid Travel Rate

45000mm/min

Max. Working Speed

30000mm/min

Stepper driver

Leadshine 860H

Spindle Speed

0-24000RPM

Spindle power

Double 3kw water cooling spindle

Inverter

3.7kw Fuling Inverter

Command Language

G Code

Control System

DSP A11

Computer Interface

USB

Flash Memory

512M(U Disk)

Collet

ER20

X,Y Resolution

<0.01mm

Software Compatibility

Type3 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

 PS:All the working area and specifications can be customized according to your requests.

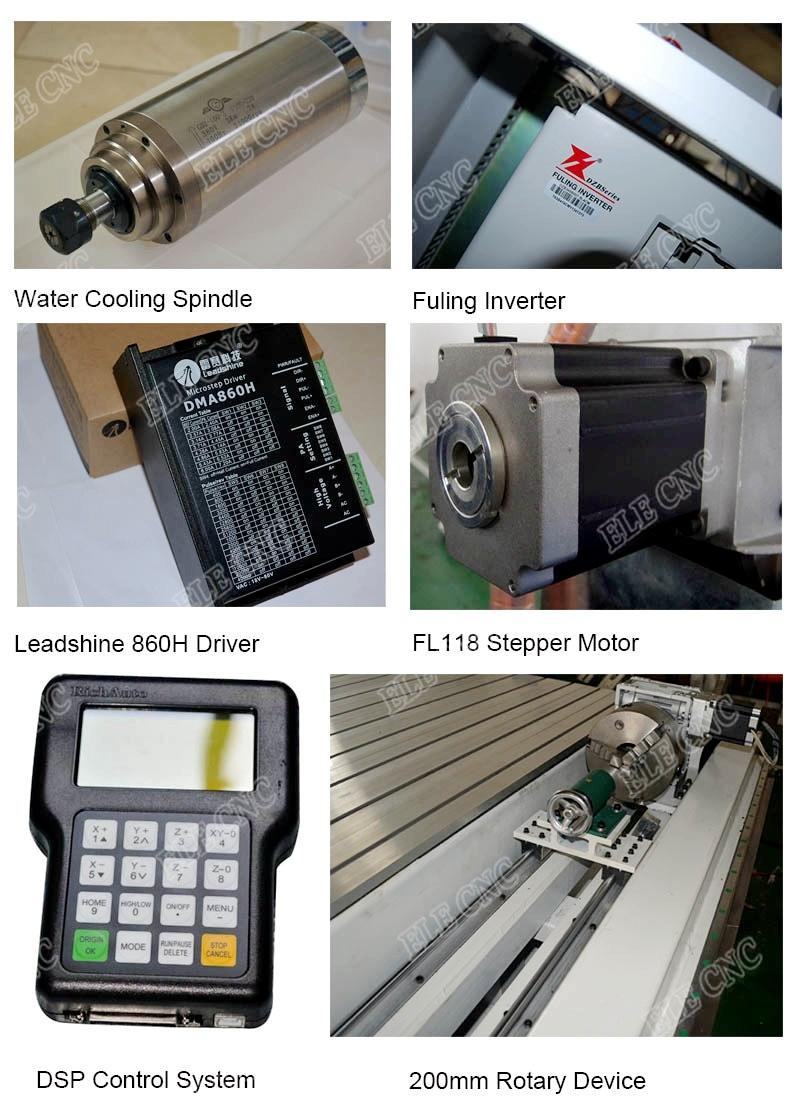

Product Details of cnc router 1325:

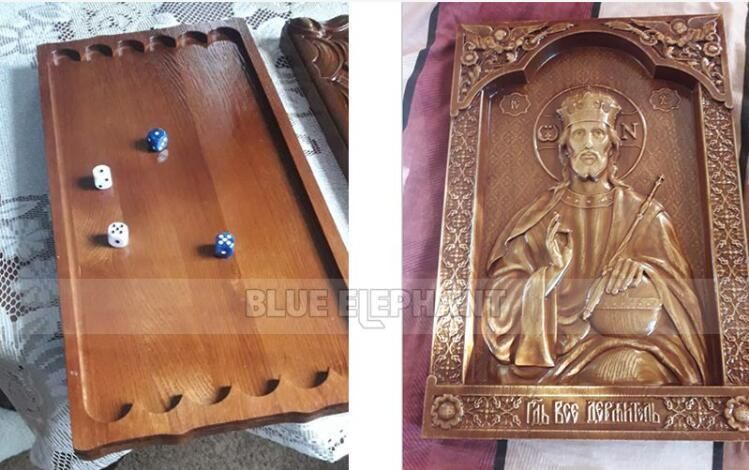

Applications

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.



Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

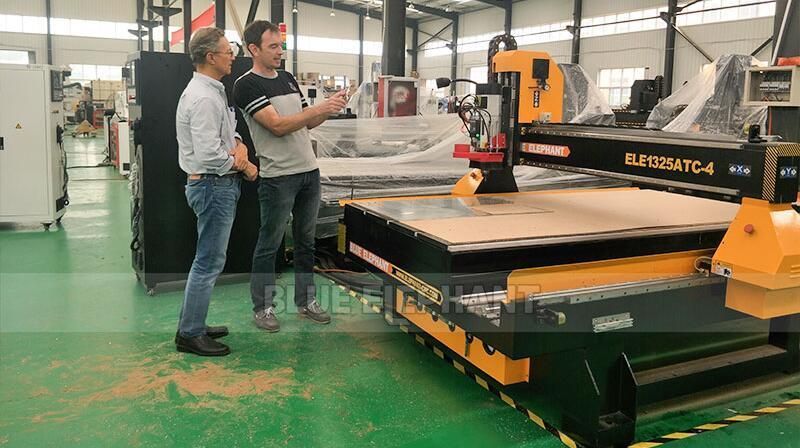

Welcome to our factory:
