Ele 1325 Cabinet Door Making CNC Router Machine for Wood Carving
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE, ISO, SGS BV TUV
Base Info
- Model NO.:ELE 1325
- Customized:Customized
- Condition:New
- Color:Customized
- Voltage:380V,3pH,50Hz(Option:220V)
- Dimension(L*W*H):1300X2500X200mm
- Spindle:3kw Waer Cooling Spindle
- Control System:Mach3 4 Axis Control System
- Spindle Speed:0-24000rpm,Min
- Table Structure:T-Slot&Vacuum Table
- Drive Motor:Stepper
- X, Y Structure:Helical Rack and Pinion Drive, Hiwin Rail Linear B
- Transport Package:Standard Export Wooden Case
- Specification:CE, ISO, SGS
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
- Production Capacity:200 Sets Per Month
Description
Description
Parameter
X,Y,Z Working Area
1300x2500x200mm
Table Surface
T-slot and vacuum working table
Structure
Industrial class square tube strong structure
X, Y ,Z Structure
20#Taiwan ABBA Linear guide and helical rack
X,Y Resolution
<0.01mm
Spindle Power
3KW waer cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
750w Leashine Stepper Motor
Inverter
3.7kw Fuling Inverter
Control System
Mach3 4 axis control system
Lubrication
Manual Lubrication system
Dust Collector
2.2kw dust collector with 2 pockets
Rotary device
200mm rotary device
Control box
Single Control box
Option
Oil mist cooling system
Limit switch
Japan OMRON limit switch for X, Y, Z axis
Command Language
G Code
Computer Interface
USB
Software Compatibility
ARTCAM 2012 software, (Option: Artcam Type3 Software)
Tool change
simple tool change
Applications:
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Packaging & ShippingPackaging Details:1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
Our Services
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

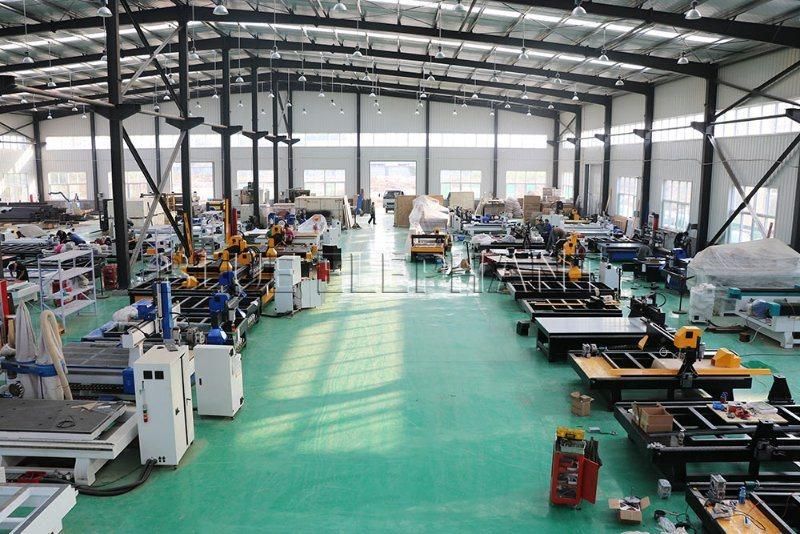

Our Factory
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
