• Model NO.：ZSF-60D
• Panel Thinkness：10-60mm
• Min.length panel：160mm
• Min.width panel：60mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：4480*910*1540 mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：300sets,Month

Basic Info.

Model NO. ZSF-60D Panel Thinkness 10-60mm Min.length panel 160mm Min.width panel 60mm Manufacturing Principles Glue Tank Underneath Customized Customized Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 4480*910*1540 mm Trademark Mars Origin China HS Code 8465990000 Production Capacity 300sets/Month

Product Description

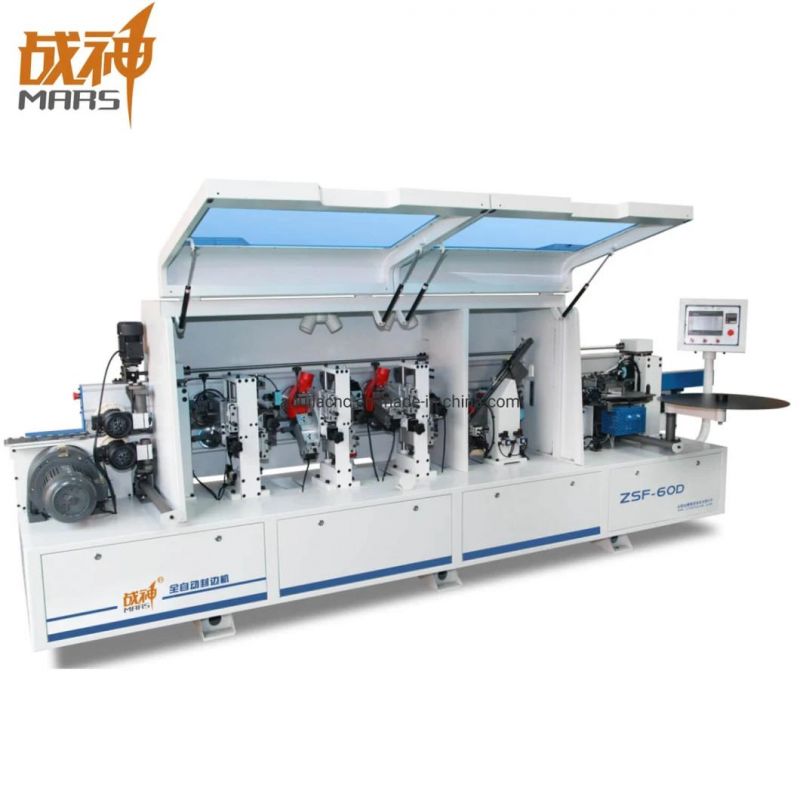

ZSF-60D Automatic Edge Bander/Bander Machine
 Keywords:15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                  Three Brand: Mars, Golden Eagle,Borio



Description:
ZSF-60D Automatic Edge Bander/Bander Machine is MARS featured machine for pre-milling,gluing,end cutting,rough trimming,fine trimming,scraping and buffing,suitable for panel furniture, cabinets, wardrobes, office furniture, custom furniture, wooden doors, decoration and other industries.Now it's popular in the market.

Functions:
The functions of this machine include pre-milling,gluing,end cutting,rough trimming,fine trimming,scraping and buffing.

Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.


Application Scope:
Suitable for panel furniture, cabinets, wardrobes, office furniture, custom furniture, wooden doors, decoration and other industries.


Parameters:

Model	ZSF-60D Automatic Edge Bander Machine
Outward Size (mm) Length * Width * Height	4480*910*1540mm
Motor power	10.6kw Total power
Feed speed	17-25m/min
Edge thickness	0.4-3mm
Panel thickness	10-60mm
Panel Length	>=150
Panel Width	>=60
Working pressure	0.6Mpa
Minimum Panelsize	300(L)*60(W) mm & 150(L)*150(W)mm
Total weight	1600kg

Accessories:

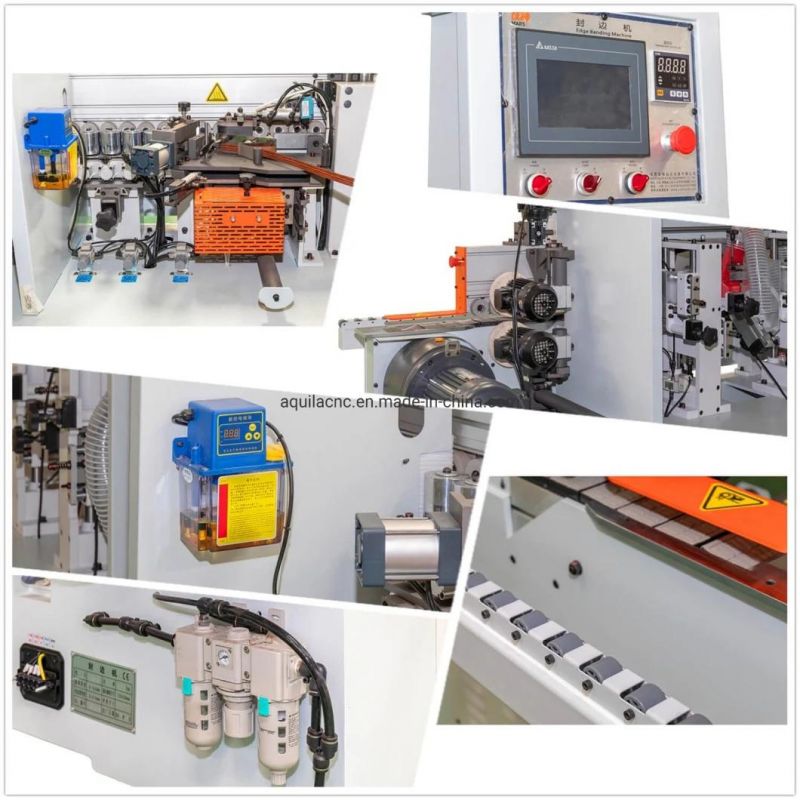

Performance Features:
1.This edge bander is ideal for building an automatic production line. Stability and controlled ability are the most important factors for an equipment to be part of production line.
2. Pre-milling equipment with double trim-blades works on the waved effect that is caused by precise saw.
3. The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.
4. End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.
5. Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even.
6. Scraping unit for a perfect finishing of the applied edge.
7. The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface.
8. Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc.

Samples:
