• Model NO.：C100B
• Control System：Nc Studio
• Drive System：Leadshine 758 Servo Motor
• Transport Package：Wooden Case Package
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. C100B Control System Nc Studio Drive System Leadshine 758 Servo Motor Transport Package Wooden Case Package Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

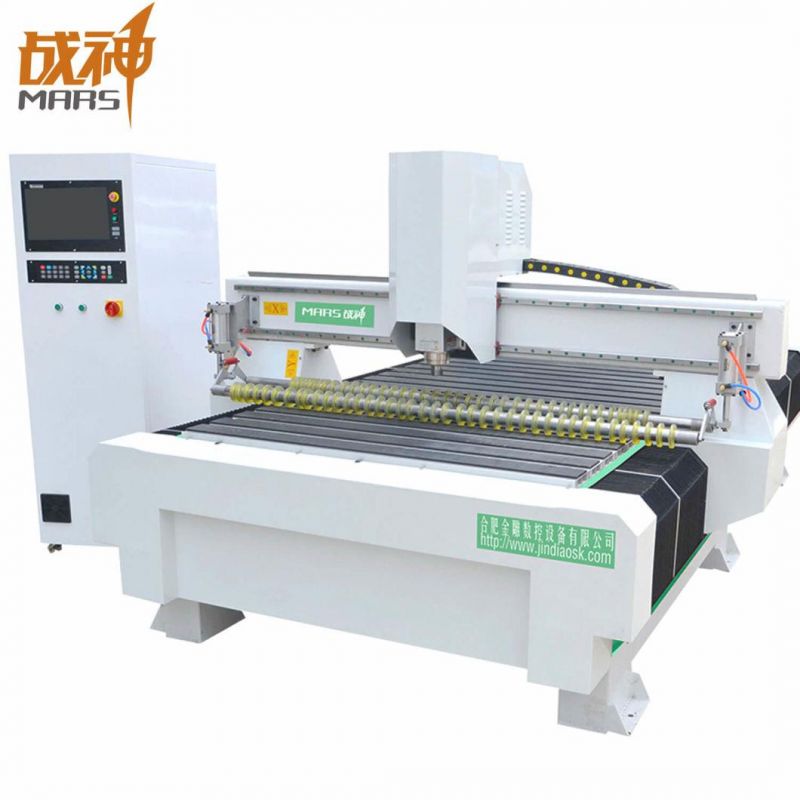

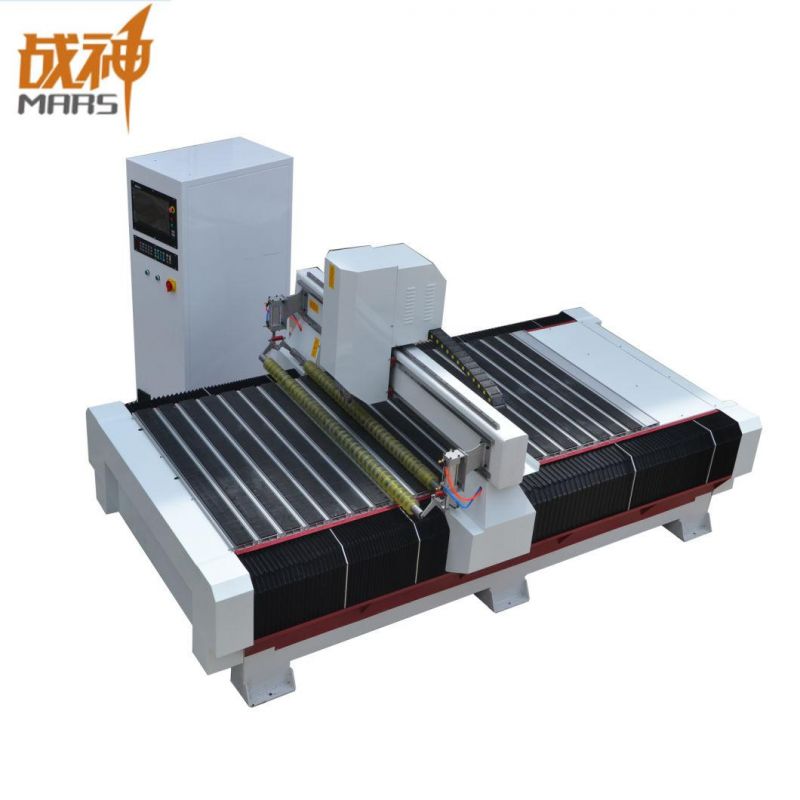

Woodworking CNC Milling Machine/CNC Router Cutting Machine
Keywords: 15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                 Three Brands: Mars, Golden Eagle, Boiro
                 Technicist who go abroad to offer after-sale service


  Parameters


Model	C100 Single Spindle Automatic Cutting Machine
Working Stoke	1300*2500*100mm
Body Structure	Thick-walled steel tube welded, w/ tempering
Spindle Power	HQD 6KW air-cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Control System	NC Studio
Drive System	Leadshine 758 servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin rectangular linear rail
Vacuum Pump	7.5KW
Max Travelling Speed	50m/min
Max Processing Speed	30m/min
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Support Software	Professional cutting optimization software
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	1600KG
Machine Size	2200*3600*1600mm

Application
Doors, cabinets, panel furniture, office furniture, doors, windows, tables, chairs, speaker boxes, game cabinets,
computer tables, sewing machine countertop, musical instruments
