Xs200 Disc Atc CNC Machining Center for Wooden Doors and Carbinets

Hefei Aquila CNC Equipment Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:380V
  • Transport Package:Plywood Boxes
  • Specification:1300*2500mm

Base Info

  • Model NO.:XS200
  • Trademark:Mars
  • Origin:China
  • HS Code:84659100
  • Production Capacity:300sets Per Month

Description

Basic Info.

Model NO. XS200 Trademark Mars Origin China HS Code 84659100 Production Capacity 300sets Per Month

Product Description

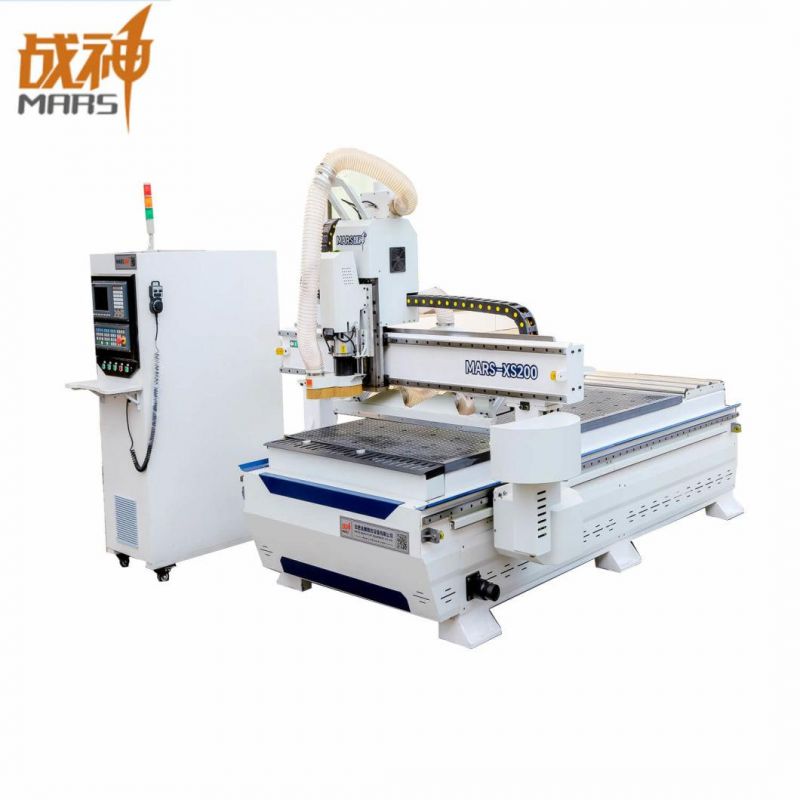

Mars XS200 Disc Tool Change CNC Machining Center
Xs200 Disc Atc CNC Machining Center for Wooden Doors and CarbinetsXs200 Disc Atc CNC Machining Center for Wooden Doors and Carbinets

 Xs200 Disc Atc CNC Machining Center for Wooden Doors and Carbinets
Model No.MARS-XS200
Machining Size1300*2500mm
Travelling Speed (X/Y/Z)80*80*30m/min
Max.Machining Speed20m/min
Main Spindle Power9KW Air cooling Tool Change Spindle

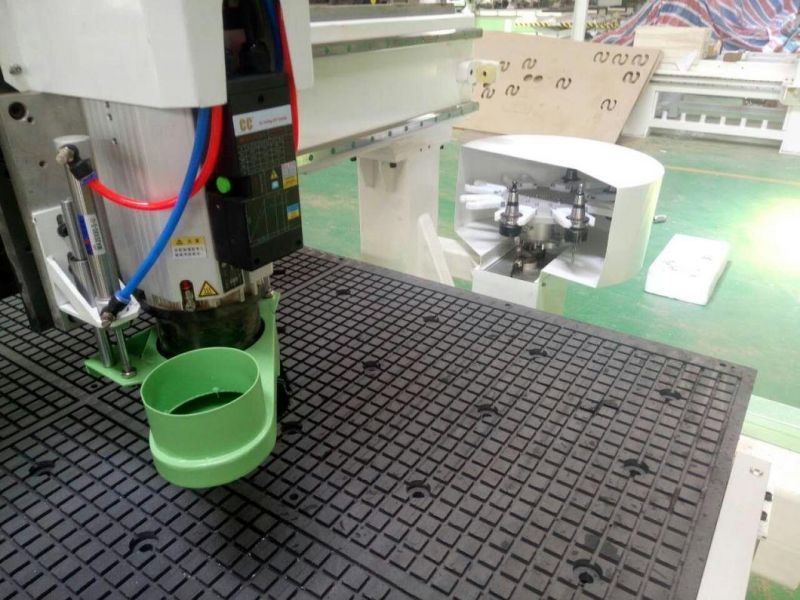

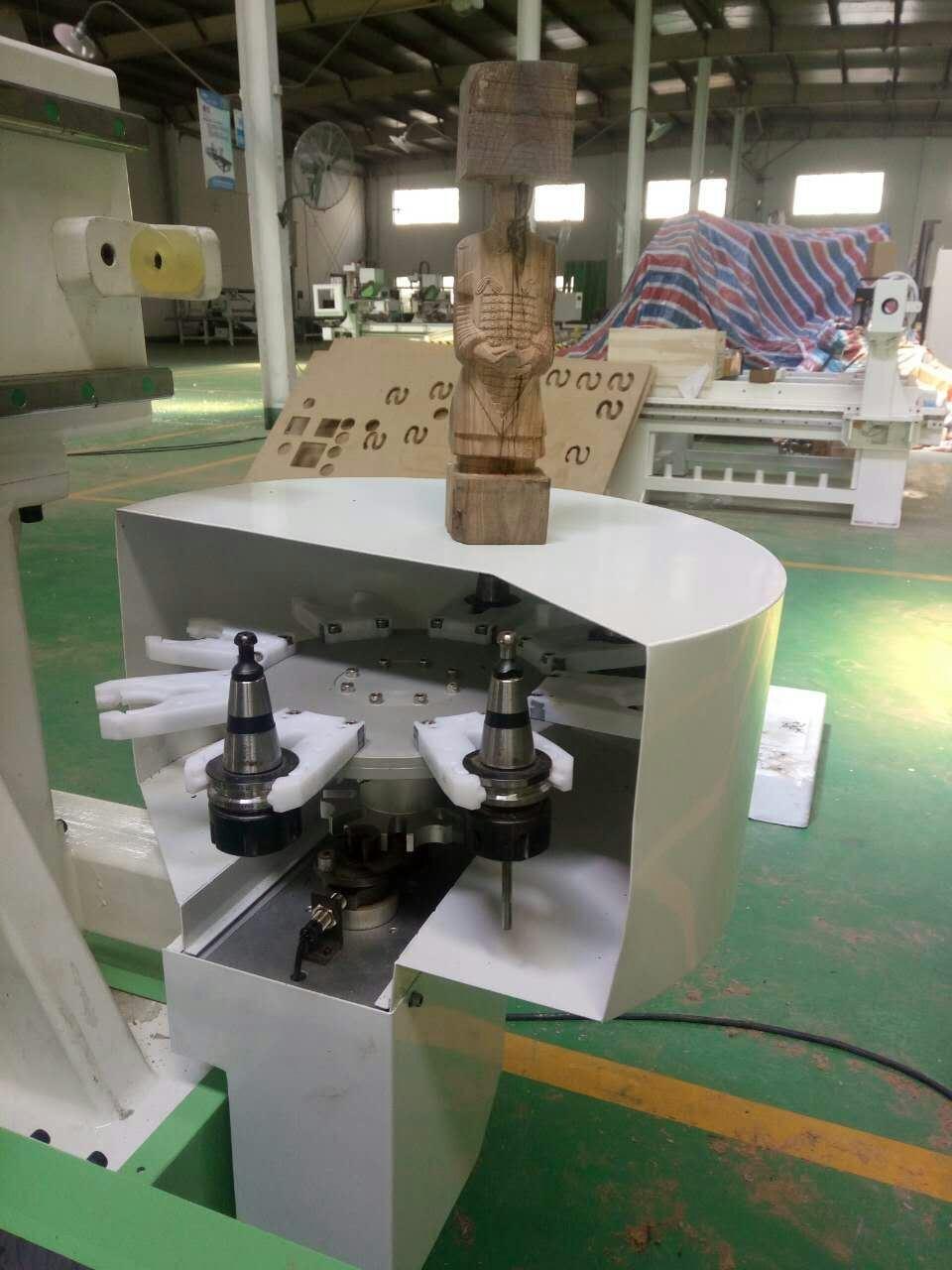

Tool MagazinDisc type servo tool magazine (8/12/16pcs optional)
Max.Rotating Speed0-24000rpm.Adjustable
Vacuun Pump Power11KW water circle
Transmission ModeX,Y Axis reducer rack drive and Z Ball Screw
Work Voltage380V 50Hz
Adsorption modeCavity vacuum adsorption

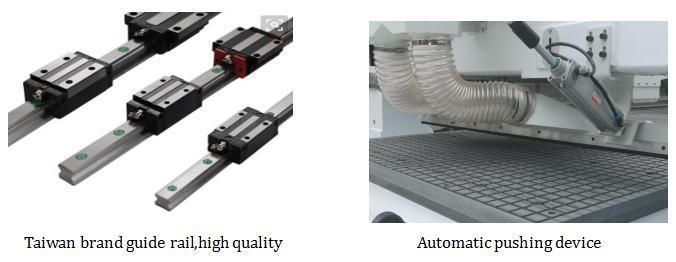

Pushing deviceAutomatic pushing dust collection(dockable unloading platform)
Positioning deviceL-type cylinder positioning
Tool settingAutomatic tool setting function
Re-positioning accuracy±0.05MM
Control SystemTaiwan Syntec system+handwheel
Guide RailTaiwan CSK/LAPPING
Ball ScrewTaiwan PYM/PMI
ReducerPlanetary
XY Servo MotorTaiwan Syntec Bus servo
ZAxisServo MotorTaiwan Syntec Bus servo with  band-type brake
ConverterMARS/ZC/FL Optional
CableCNC special use high flexible cable
ElectricDelixi
Running CommandsG code,F/S command compatible

Air Pressure Request
1.Filter particles <40 microns;
2.Oil content <5mg/m3, 20ºC;
3.Operating pressure of dew point<10ºCtd;
4.The temperature is close to the ambient temperature;
5.The service life of the filter material is one year or the filter is replaced when the pressure drops to 0.07MPa;
6.The service life of deodorization filter is 300 ~ 400hr, should be replaced in time
Xs200 Disc Atc CNC Machining Center for Wooden Doors and CarbinetsXs200 Disc Atc CNC Machining Center for Wooden Doors and CarbinetsXs200 Disc Atc CNC Machining Center for Wooden Doors and CarbinetsXs200 Disc Atc CNC Machining Center for Wooden Doors and CarbinetsXs200 Disc Atc CNC Machining Center for Wooden Doors and CarbinetsXs200 Disc Atc CNC Machining Center for Wooden Doors and Carbinets

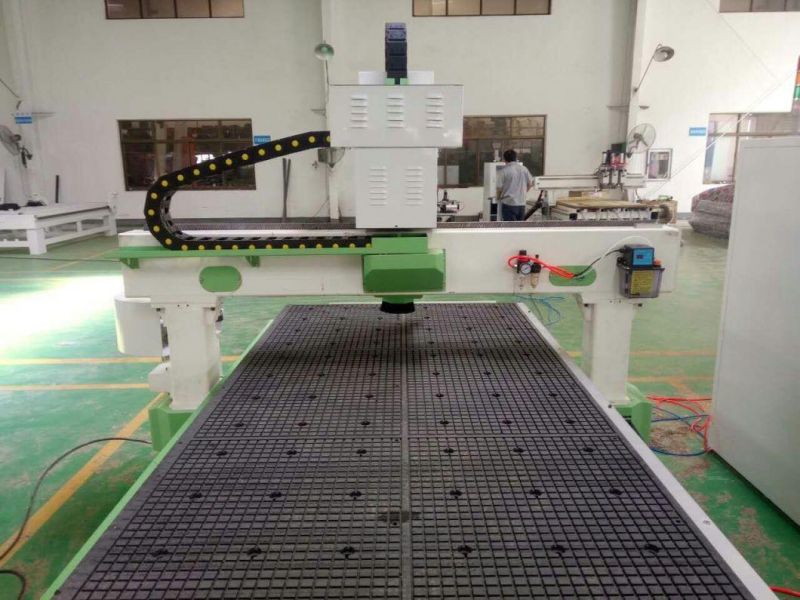

2,Details

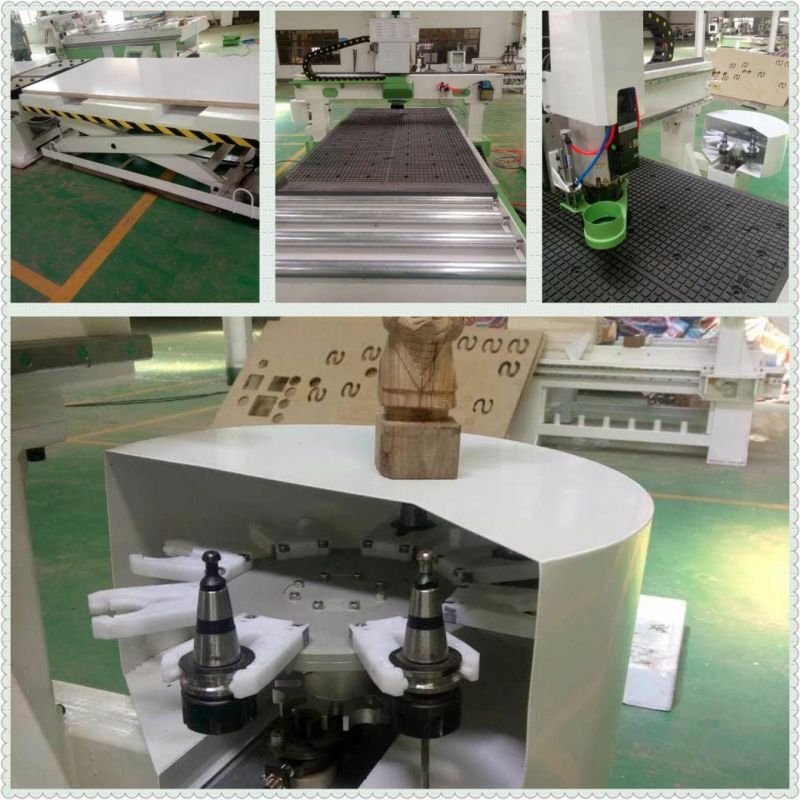

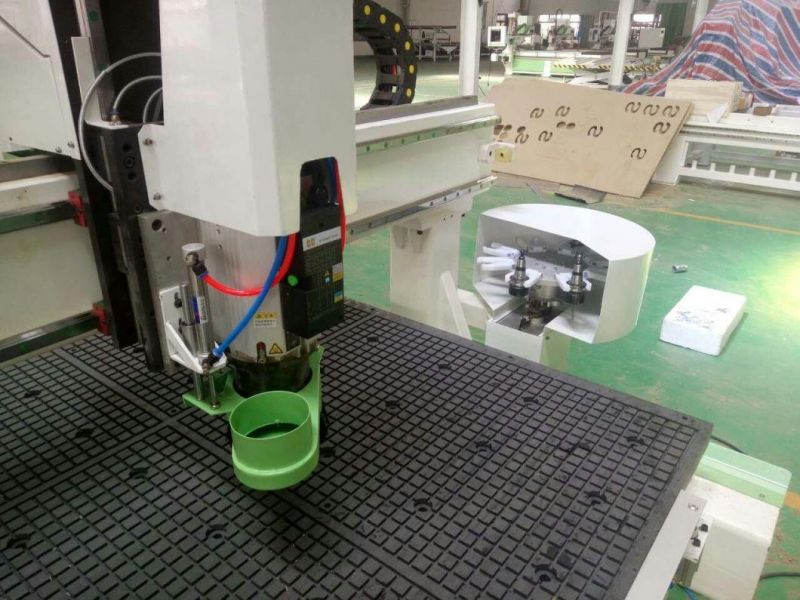

 Xs200 Disc Atc CNC Machining Center for Wooden Doors and Carbinets
3,Equipment characteristic

1)-Mainly used for cutting,drilling,slotting and one-time processing for the special shape plate in customized panel furniture enterprises,
it can also be used for home decoration or cabinet door multi process modeling
 processing

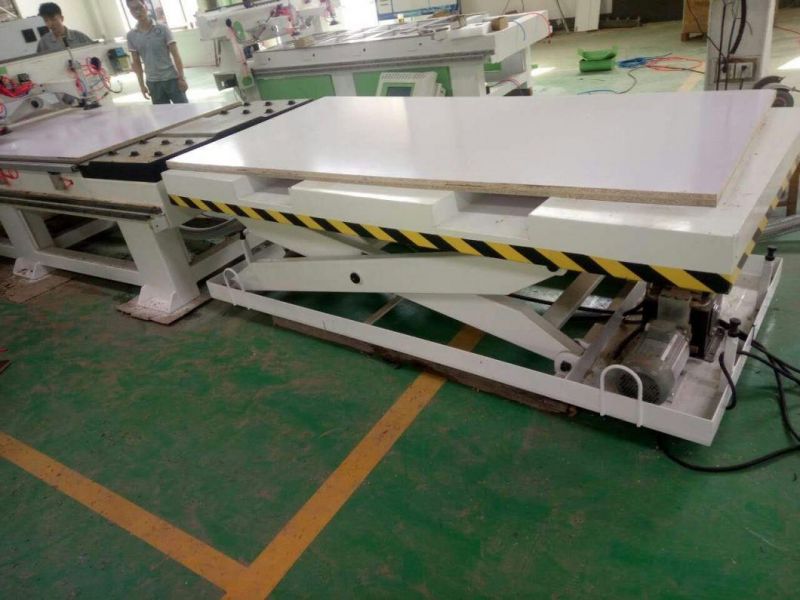

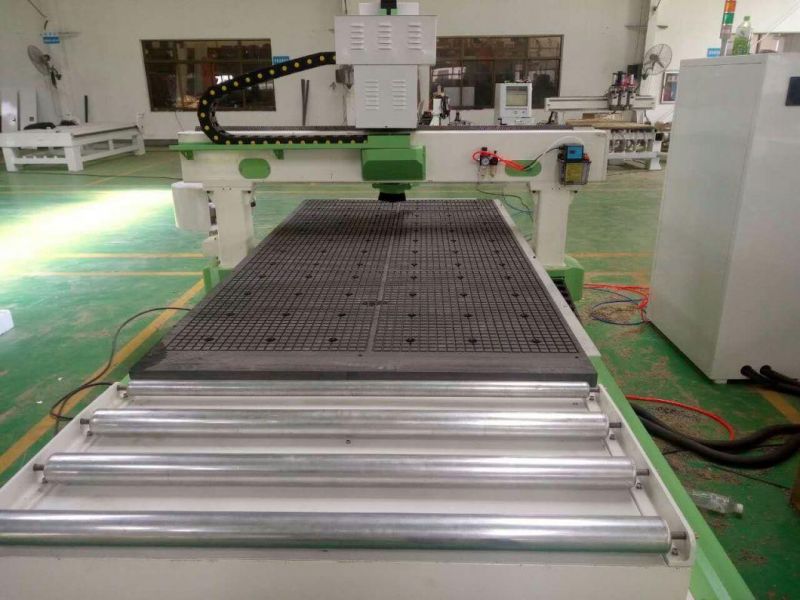

2)-Optional auxiliary feeding function for panel furniture industry,automatic unloading,the automation degree and production efficiency
of the equipment are further improved

3)-The equipment body welded by thick steel pipe,after high temperature tempering,Formed by CNC gantry machining center at one time,
the structure is stable and never deformed

4)-All three axes adopt the rectangular track imported from Taiwan,Z axis adopts Taiwan imported precision ball screw,XY axis adopts grinding
gear and rack and is matched with imported high precision helical gear reducer,Y-axis double rack double motor drive, so that the machine can
run stably at high speed

5)-The euipment adopts high-strength phenolic board rectangular adsorption vacuum table,equipped with high efficient vaccum pump,table
adsorption capacity is strong,has long service life,Delixi special electrical components

6)-Humanized design of machine control interface,fool-style operation, the operator can be on duty after simple training without skilled
workers


4,Scope of Application
Engraving, drilling, cutting and other processing of wooden doors,carbinets,panels,office furniture,tables and chairs,doors and windows,speakers,
game cabinets,cumputer tables,sewing machine tables, musical instruments, acrylic, PVC, MDF, etc
