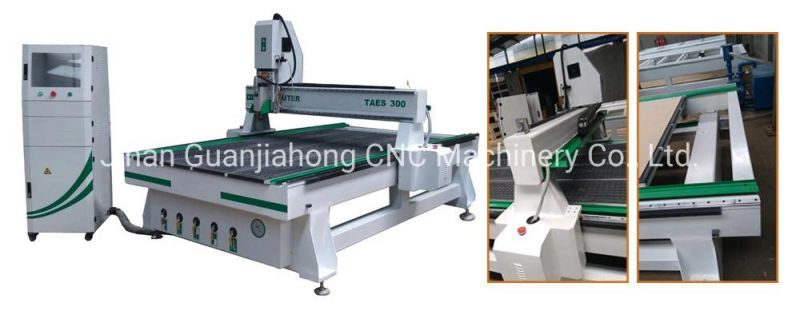

Woodworking Machine, Advertising Machine, CNC Wood Router 1325, CNC Engraving Machine for Wood, Acrylic, Plastic, MDF, ACP
Jinan Guanjiahong CNC Machinery Co., Ltd.- Warranty：1 Year
- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
Base Info
- Model NO.：1325
- Certification：CE, ISO
- Customized：Customized
- Condition：New
- Color：Customized
- After-sales Service：Lifetime
- Voltage：380V,220V
- Weight：1500kgs
- Dimension：1300*2500*200mm
- Control System：Nc Studio or Richauto
- Guild Rail：Hiwin Square Rail
- Ball Screw：PMI, Taiwan
- Transport Package：Plywood Case
- Specification：CE
- Trademark：DONGTONG
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：50 PCS,Month
Description
Basic Info.
Model NO. 1325 Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Lifetime Voltage 380V/220V Weight 1500kgs Dimension 1300*2500*200mm Control System Nc Studio or Richauto Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 PCS/MonthProduct Description
Multi-workstage auto tool change, 1325, ATC Engraving Cnc Router for door and cabinet from professional cnc router manufacturer in ChinaApplication:

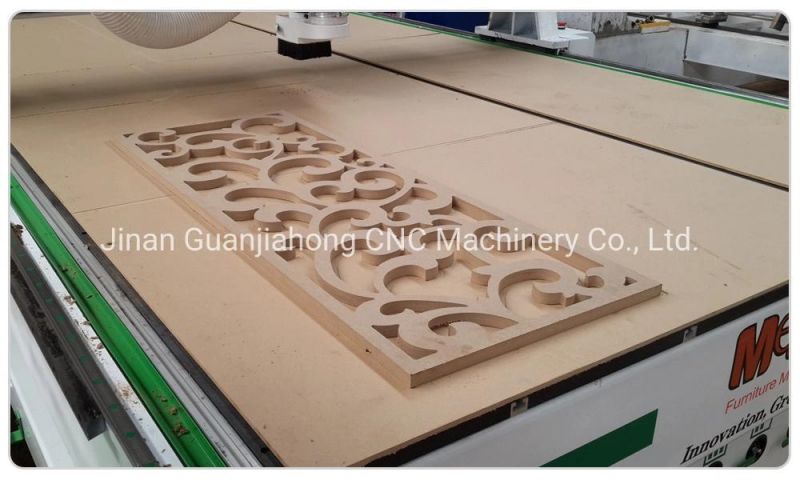

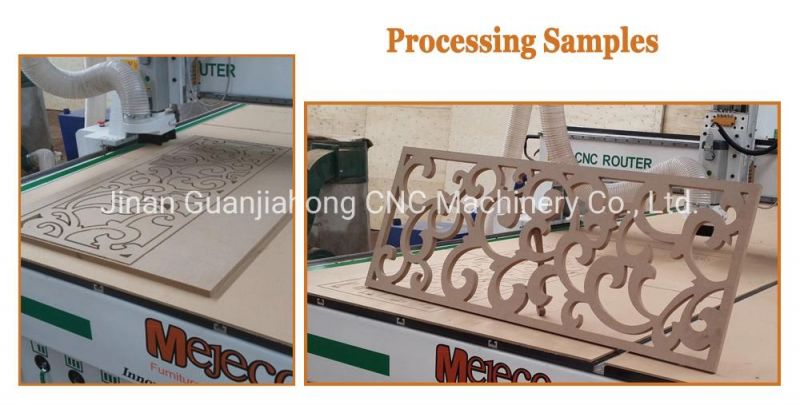

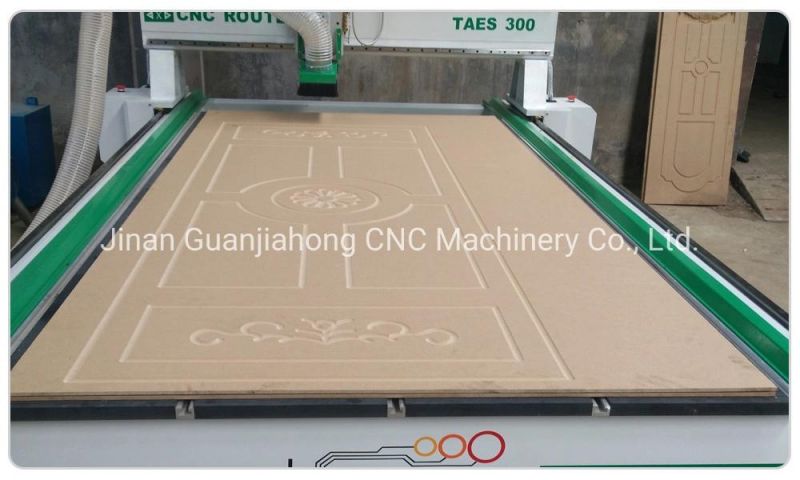

Industries : Processing various kinds of moulds and furniture such as door, window, cabinet, craft wooden door, screen etc.
Materials: Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal
materials and light metal materials.

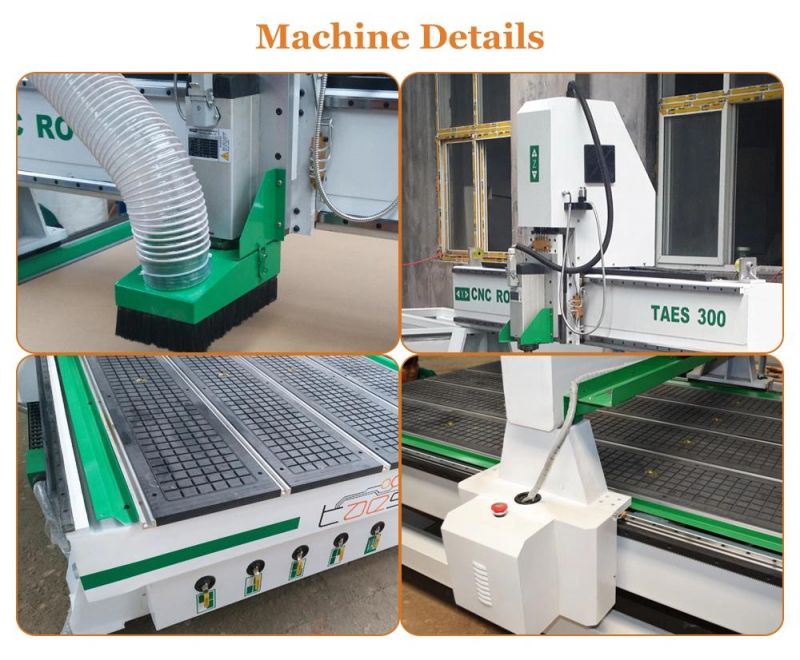

Machine Feature:
1. Advanced control system: Taiwan SYNTEC or NC STUDIO
2. Compatible with software such as:TYPE3/ARTCAM/UG/PRO- E/UCANCAM/AUTOCAD/MASTERCAM
3. Functions of power-off recovery, continuation on break point, time anticipation.
4. Excellent components: HIWIN guild rail and ball screws, low noise spindle
5. Welding steel structure and 10mm gantry
6. Powerful vacuum table divided to 6 zones, can adsorb different size materials.
7. 3 spindles work in turn as request, save change tool time.
8. Two motors for Y axis, running steadily
9. Special configuration could be customer-oriented designing.
Technical Parameter:
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X axis | 1300mm |
| Y axis | 2500mm | ||
| Z axis | 200mm | ||
| 2 | Table size | 1300mm*2500mm | |
| 3 | Accuracy | Processing precision | 0.05mm |
| Reposition precision | 0.02mm | ||
| 4 | Drove mode | X axis | Helical rack and pinion |
| Y axis | Helical rack and pinion | ||
| Z axis | Ball screws | ||
| 5 | Speed | Max travel speed | 30000mm/min |
| Max engraving speed | 15000mm/min | ||
| 6 | Spindle(water-cooling) | Spindle power | 5.5KW |
| Spindle speed | 0_24000r/min | ||
| 7 | Running mode | Stepper or Servo motor | |
| 8 | Operating voltage | AC220V/50HZ | |
| 9 | Command code | G Code | |
| 10 | Operating system | Nc Studio | |
| 11 | Table | Vacuum Table and T-slot combined | |
| 12 | Machine's size | 3100x2200x1800mm |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support and service
1325 Wood, Acrylic, MDF, Plastic, Rubber, soft metal, CNC Engraving and Cutting machine, Woodworking Machine
If you have specific requirement for wood door and cabinet cnc router, please contact with us.
customization is available
