• Model NO.：GLHP,500
• Opening Distance：70mm
• Quantity of Hot Platens：16
• Size of Hot Platen：1370X2700X42mm
• Hot Platen Inside Pipeline：Two Inlets and Two Outlets
• Quantity of Cylinders：2PCS
• Diameter of Main Cylinders：360mm
• Working Stroke of Cylinders：1050mm
• Allowed Pressure：<=25MPa
• Closing Time of No-Loading：15-18seconds
• Flow of Low Pressure Pump：250X2PCS
• Power Motor：15kwx2sets
• Flow of High Pressure Pump：25X1PCS
• Transport Package：Nude
• Specification：25cbm
• Trademark：GEELONG
• Origin：China
• HS Code：8479300000
• Production Capacity：120sets

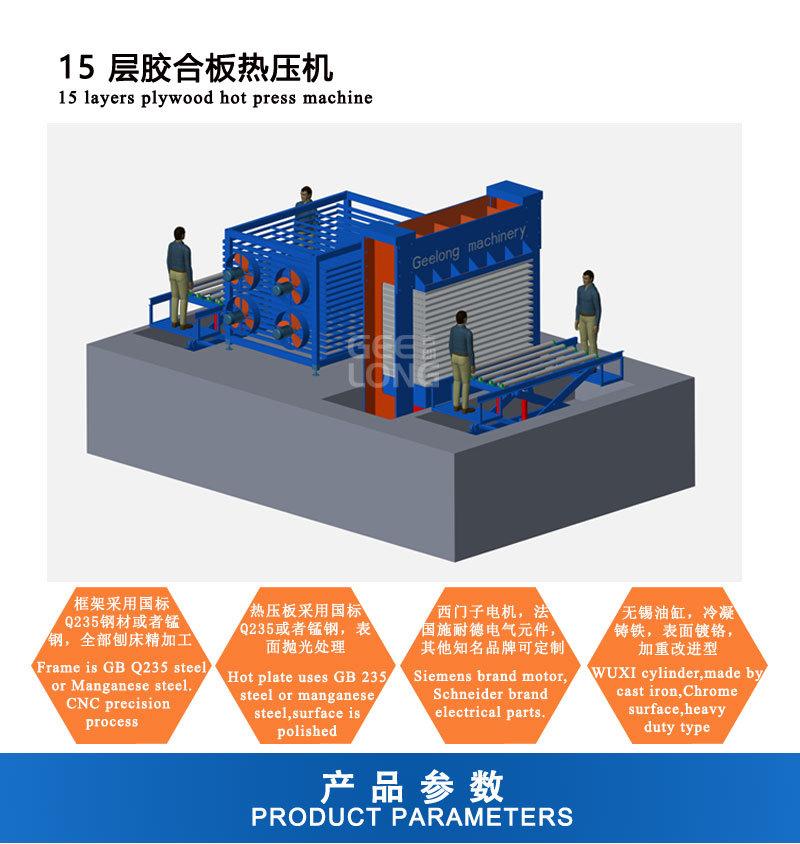

Descripiton---500T plywood 15 layers hot press machine
Plywood hot press machine is one of the main equipment in the plywood production process.It is the equipment for hot pressing of the board slab after the glue combination. The different types of plywood has different requirments on the performance of the press : ordinary plywood, aero plywood, plastic panel , wood laminated plastic board and ship plywood are required to increase the pressure in turn. Plywood hot press consists of three parts : the hot press main machine , the control drive part (hydraulic system and electric control system ), and the heating system.
Normal pressure500TDirection of boards inlet transverseLayers15Opening distance70mmQuantity of hot platens16Size of hot platen1370x2700x42mmHot platen inside pipeline two inlets and two outletsQuantity of cylinders2pcsDiameter of main cylinders360mmWorking stroke of cylinders1050mmAllowed pressure<=25MpaClosing time of no-loading15-18secondsFlow of low pressure pump250x2pcsAllowed pressure3MpaMotor power 15kwx2setsFlow of high pressure pump 25x1pcsAllowed pressure25MpaPower of motor7.5kwx1setDimension3700x1370x4960mmControlling methodsautomatic hydraulic stationsHydraulic station brandWUXI brandThickness of up and down column900mmmiddle column400mmMain steel plate thickness 35mmTotal weight of this machine33-34THeating mediumthermal oilController electrical partsDelta, Schneider,Siemens PLC,Siemens touching screen
