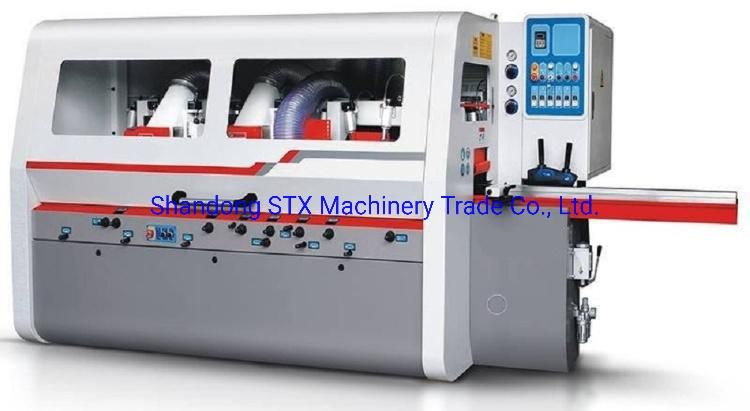

M623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder Machine

Shandong STX Machinery Trade Co., Ltd.
  • Warranty：18 Months
  • Type：Four-Side Planer

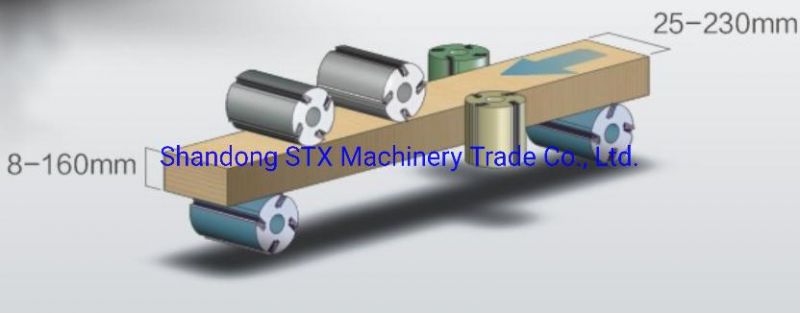

  • Working Depth：100-200mm
  • Working Width：230mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical

Base Info

  • Model NO.：VH-M623E
  • Motor Power：＞10Kw
  • Cutter Shaft：6
  • Spindle Speed：＞5000rpm
  • Process Type：Heavy Processing
  • Certification：CE
  • After-sales Service：Online Service
  • Color：Standard
  • Advantage：Long Service Life
  • Application：Woodworking Factory
  • Function：Planer and Moulder
  • Extra Support：Roller Conveyor
  • Transport Package：Steel Pallet
  • Origin：China
  • HS Code：846592

Description

Other Parameters

Feeding wheel diamter

140mm

Overall dimension

3961*1462*1776mm

Dust outlet diameter

140mm

Machine weight

3150kg



 M623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder Machine


M623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder Machine

Detailed Images

M623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder Machine

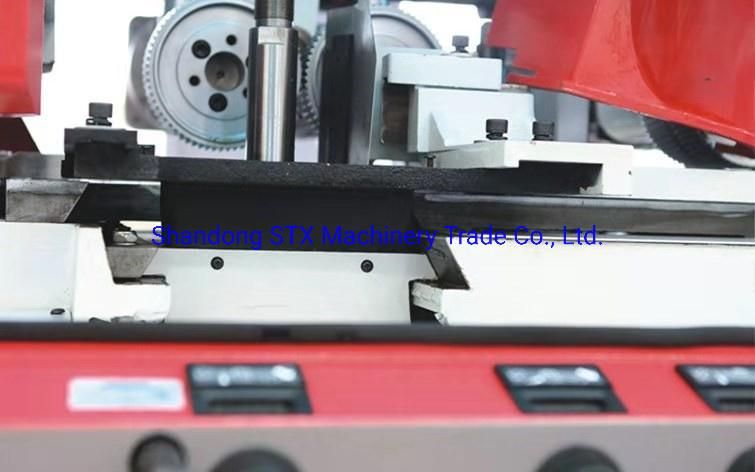

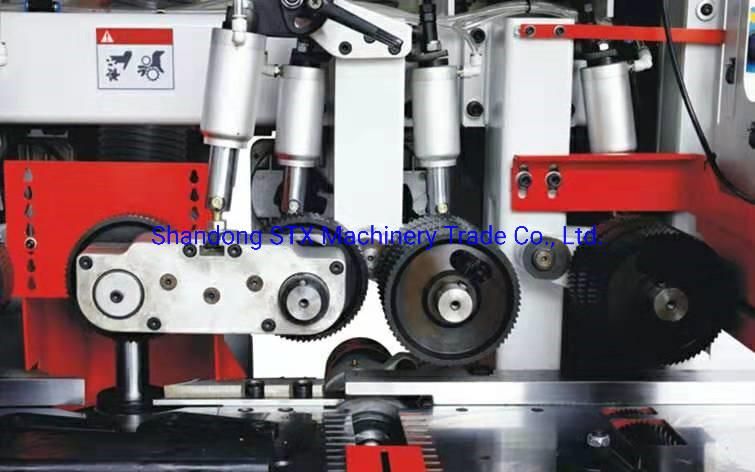

Rapidly flip-short feeding device This mechanism effectively menhance the smooth feeding of short material, auxiliary feed wheel has a drive power to make feeding more brisk. Feeding off the wheel, easy to replace the tool and calibrated



Moveable working table on the last bottom spindle, Making easy working on changing cutters











M623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder Machine

M623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder Machine

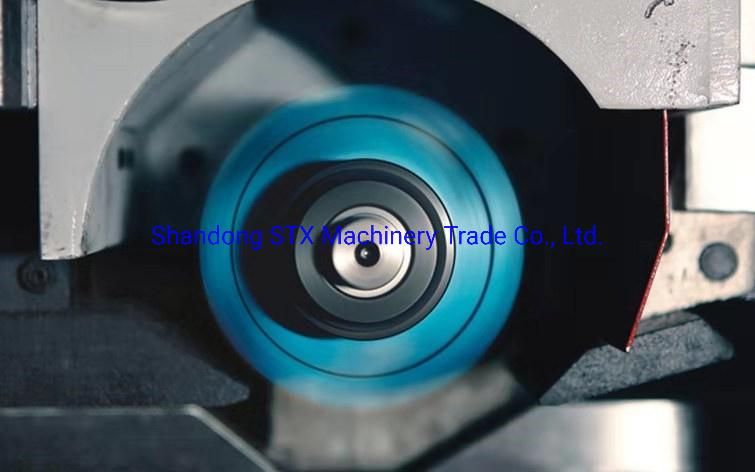

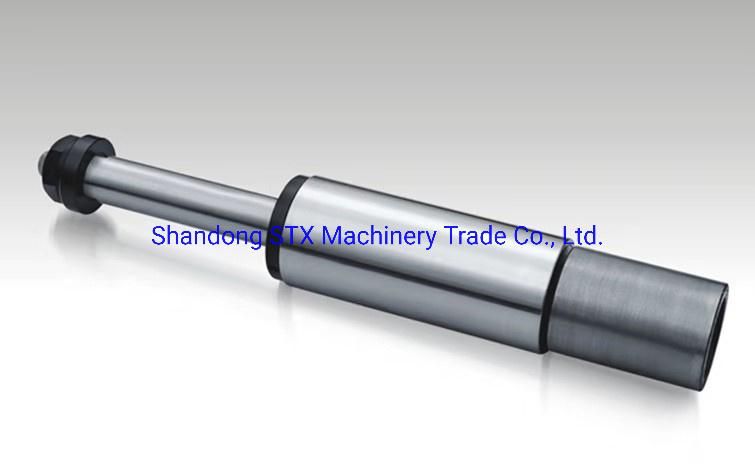

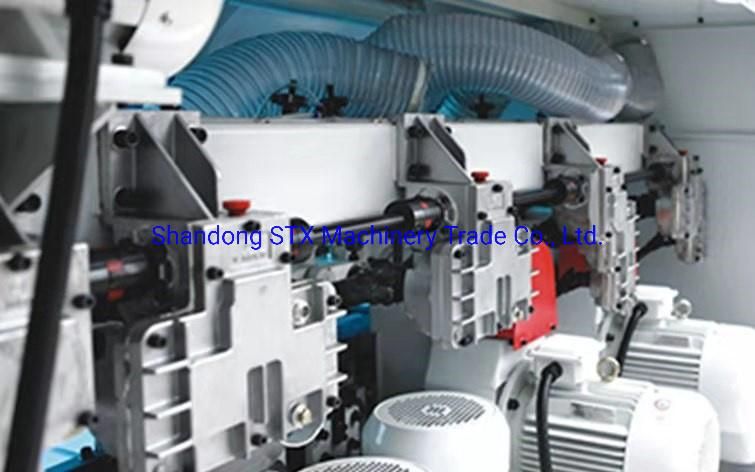

Heavy cutting gear box Nourishment wheel via a universal joint and the gearbox, ensure no power loss. Feeding extremely smooth, powerful driving force, high feedind accuracyEvery spindle is tested and assembled in dust free room, with SKF bearing on the double end before finished. Absolute smooth running of the spindleensure the finished surface without any roughness

M623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder Machine

M623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder Machine

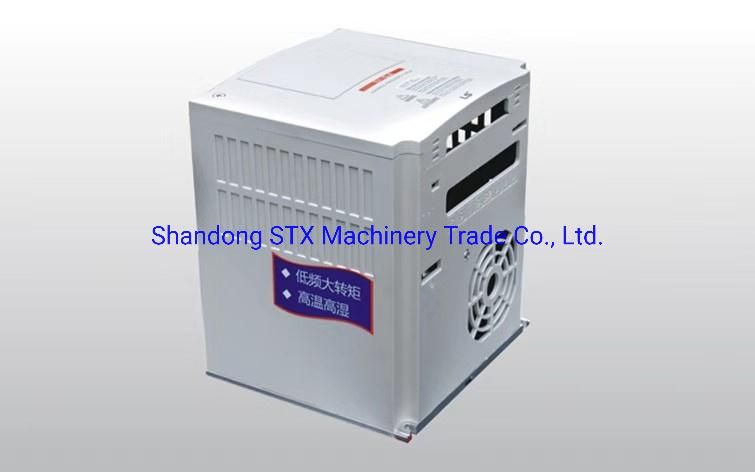

Double-deck working table on left and right spindle, guaranteed working verticalityFront and rear press plate can be adjusted respectively, although the big variation in wood thickness, also work pieces can be firmly pressed down on the working tableM623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder MachineM623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder MachineFeeding frequency inverterDigital display, easy operation, energy saving, reduction of mechanical transmission wear.



Processed effect

M623e Heavy Duty Woodworking Six Spindle Four Side Wood Planer Moulder Machine



 Package & Delivery

Our ServiceAbout Us

Since  established in 1990s years, we keep our attention on Four side moulder, Double Side Moulde, Rip saw,Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China
