• Model NO.：GJH 3015
• Controlling Mode：CNC
• Power Source：Electric
• Processing Accessory：Chuck CNC Lathe
• Certification：CE, SGS
• Guide Rail：Hiwin 20 (Imported)
• Screw：PMI (Imported)
• Running Mode：Stepper
• Control System：Guangxingkai
• Application：Woodworking
• Transport Package：Plywood Case
• Specification：GJH 3015
• Trademark：GJH
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. GJH 3015 Controlling Mode CNC Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE, SGS Guide Rail Hiwin 20 (Imported) Screw PMI (Imported) Running Mode Stepper Control System Guangxingkai Application Woodworking Transport Package Plywood Case Specification GJH 3015 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per Month

Product Description

From professional CNC machine manufacturer:

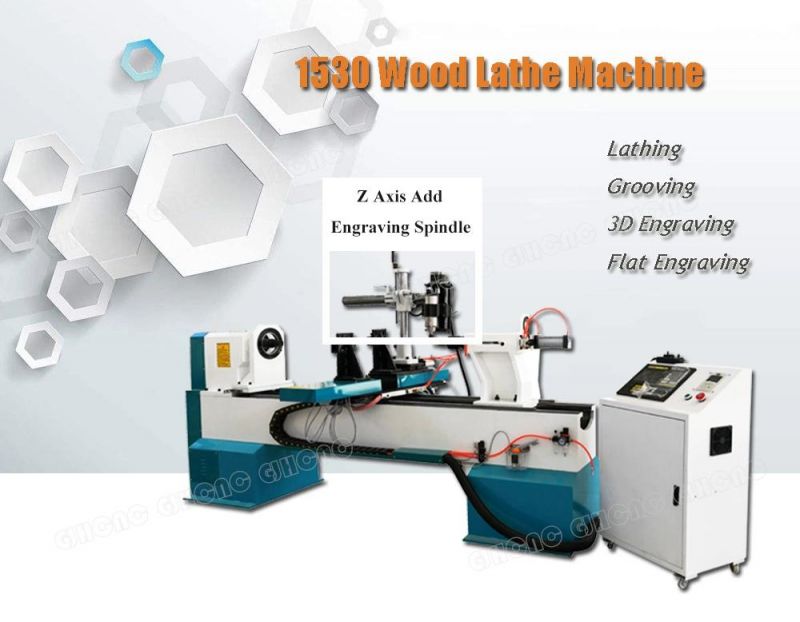

Professional CNC Wood Lathe Machine , Wooden Legs, Staircase, Baseball Bet
Model: 3015, or custmized size,




1.Mode GJH 1530 wood lathe machine is specially designed for woodworking. It has high precision, fast speed, cost-effective.
2.Strong lathe bed, thickness of  cast iron reaches 24mm, with good stability
3.The center supporter prevents the shaking of slender wood during processing.
4.High Class frequency converter with high stability
5.Compatible with several CAD/CAM design software, easy operation.

Processing Material:	Rotary Wood

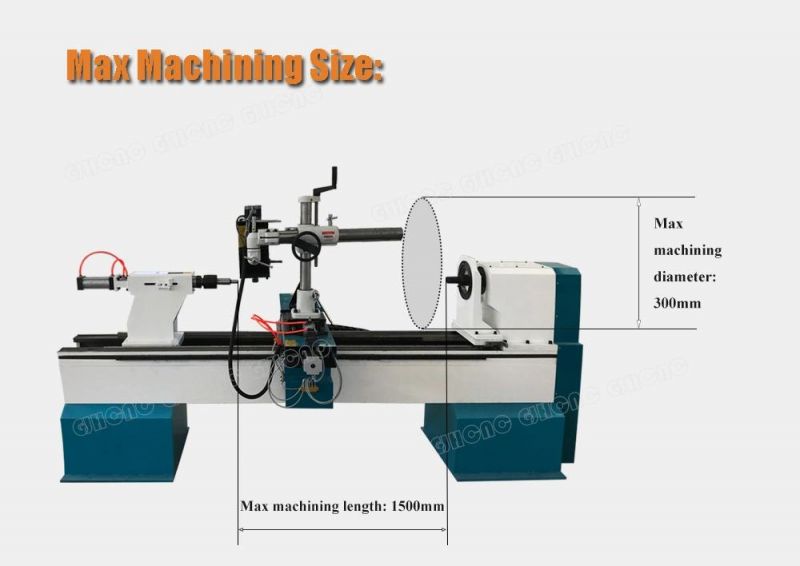

Max Working Length:	1500 MM
Max Working Diameter:	300MM
Flat engraving size:	1200x300MM
Control System:	Guangxingkai Control System
Frequency Converter:	Middle Drive
Bed structure:	Heavy integral casting
Driving mode:	High precision TBI ball screw
Guideway Drive:	25 Linear Guide rail 25 Flange Slider
Power Spindle:	4 Kw pure copper three-phase asynchronous motor
Power Spindle speed:	0-2800 Rpm
Engraving Spindle:	2.2Kw, Air-cooling,
Engraving Spindle speed:	0-24000 Rpm
Operating Voltage:	3-phase 380V Voltage
Main Functions:	Lathing, Grooving, Engraving and Flat Engraving
Processing Range:	Stair Column, Table and Chair Back, Bedside Column, Slab Tile, Cylindrical, Conical, Arc, Spherical, Cylindrical Engraving and Flat Carving
N.W.	1300 Kgs
G.W.	1450 Kgs
Packing size:	2990x1280x1470mm





Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in ourfactory.
4. Free suggestion and consulting, technical support and service by email/fax/tel and
   tel and lifetime technical support.

If you have specific requirement for CNC wood turning lathe, customization is available.
