• Model NO.：1530
• Controlling Mode：CNC
• Power Source：Electric
• Processing Accessory：Chuck CNC Lathe
• Certification：CE
• Guide Rail：Hiwin 20 (Imported)
• Screw：PMI (Imported)
• Control System：Guangxingkai
• Rotary：Dia: 300mm, Length: 1500mm
• Transport Package：Plywood Case
• Specification：3015
• Trademark：GJH
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. 1530 Controlling Mode CNC Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE Guide Rail Hiwin 20 (Imported) Screw PMI (Imported) Control System Guangxingkai Rotary Dia: 300mm, Length: 1500mm Transport Package Plywood Case Specification 3015 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per Month

Product Description

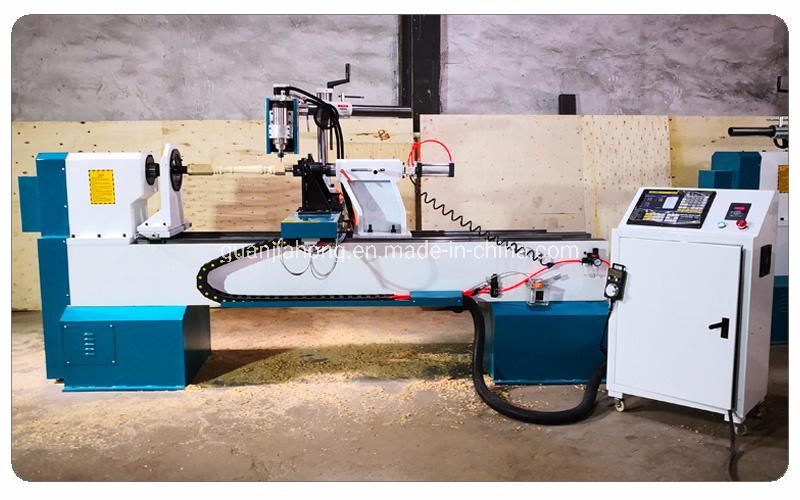

High quality and High precision 1530 automatic CNC Wood Lathe machine for table leg,stair post from professional cnc lathe machine manufacturer in China




CNC wood lathe machine is applied to process all kinds of stair posts, curved round, vases, tables and chairs back, European stair posts, cylindrical, conical, curved, spherical, and other complex shapes of rotary wood products

Various cylindrical work piece, tubular sharp and wood crafts, various staircase column, staircase balusters, table legs, sofa legs, bar stool legs,Roman column, washstand, wooden vase, baseball bat, chair arm posts and so on



1. Maximum working length is 1500mm, Max turning diameter is 300mm (customization is avaiable)
2. Two cutters at two sides of machine, work together, improve the efficiency greatly3. Linear square rails, ball screws and electronic components.
4. heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.
5. Files can be drew by AUTOCAD or other software, transfer by machine by a USB. 6. Easy operation,
7. If you want to engrave pattern, we will add a spindle on machine to do it.





 This machine has functions:  Lathing,  Flat engraving,  Roung engraving, Grooving


















Model:	GJH 3015RF
Processing Material:	Rotary Wood
Max Working Length:	1500 MM
Max Working Diameter:	300MM
Flat engraving size:	1200x300MM
Control System:	Guangxingkai Control System
Frequency Converter:	Middle Drive

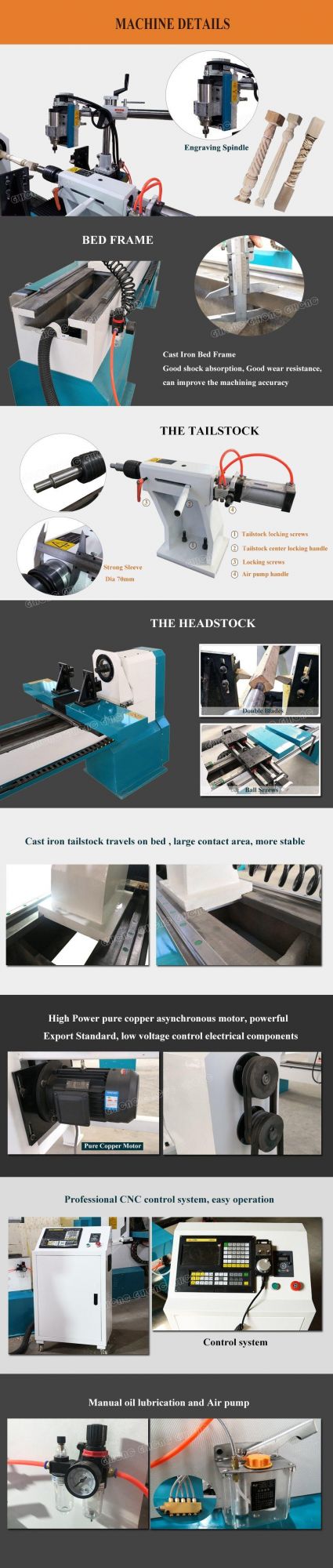

Bed structure:	Heavy integral casting
Driving mode:	High precision TBI ball screw
Guideway Drive:	25 Linear Guide rail 25 Flange Slider
Motor power:	4 Kw pure copper three-phase asynchronous motor
Power Spindle speed:	0-2800 Rpm
Engraving Spindle:	2.2Kw, Air-cooling,
Engraving Spindle speed:	0-24000 Rpm
Operating Voltage:	3-phase 380V Voltage
Processing Range:	Stair Column, Table and Chair Back, Bedside Column, Slab Tile, Cylindrical, Conical, Arc, Spherical, Cylindrical Engraving and Flat Carving
N.W.	1300 Kgs
G.W.	1450 Kgs

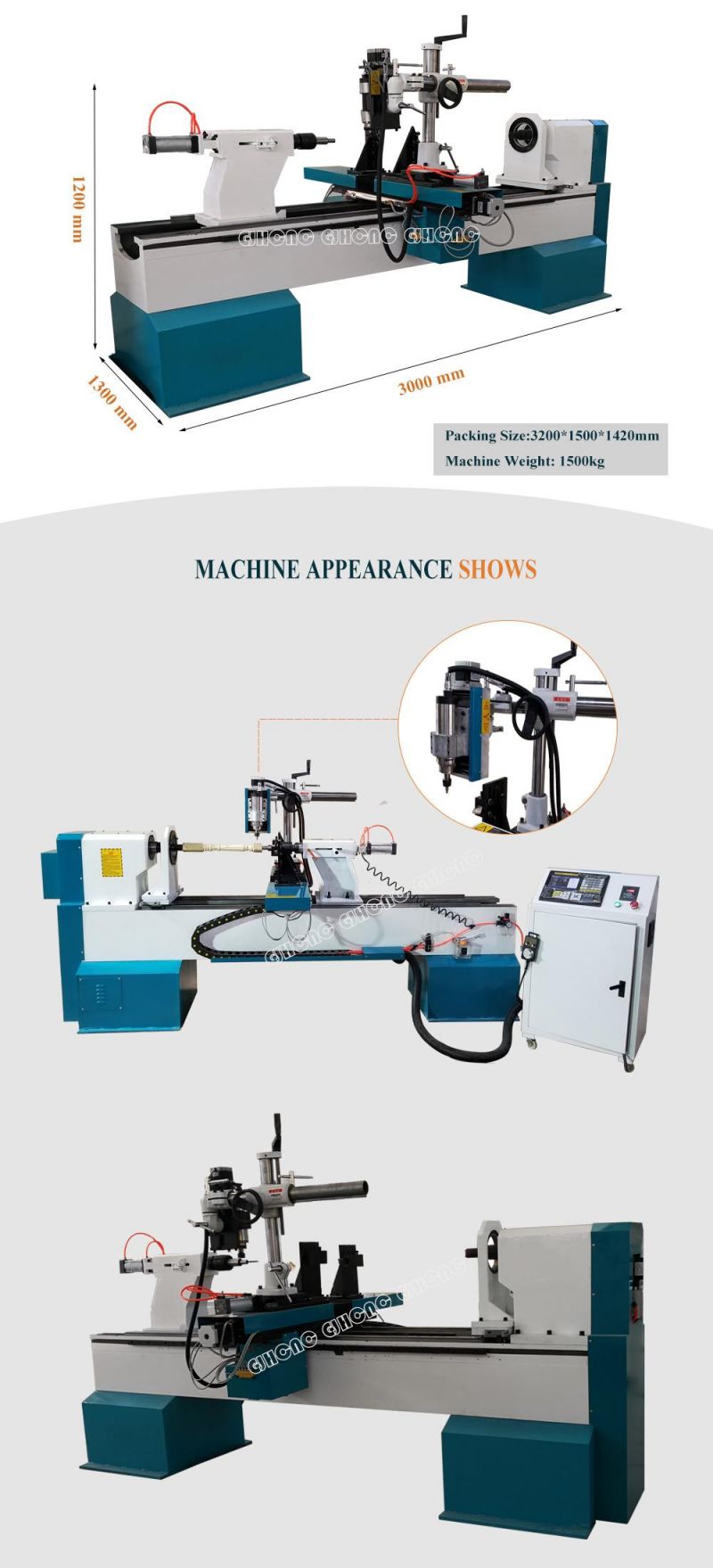

Packing size:	3120x1415x1490mm






1. Technical support by phone, email or whatsapp/wechat around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. Buyer should pay the fee.
4. Under normal usage, 1 year for the whole machine and 6 months for spindle
5. Normal machine is properly adjusted before dispatch.
6. Free training advice towards our machine in our factory.
7. Free suggestion and consulting, lifetime technical support

When you have special request about wood lathe machine, please contact with us.
Customization is available.
