Woodworking Machinery

Manual PVC Edge Banding Machine

Qingdao Zhongding Machinery Co., Ltd.
  • Function:Gluing
  • Type:Linear Edge Banding Machine
  • Edging thickness:0.4-3mm
  • Automatic Grade:Portable
  • Panel Feeding Speed:1-18m,Min
  • Certification:CE, ISO

Base Info

  • Model NO.:ZD-515B
  • Panel Thinkness:10-60mm
  • Min.length panel:100mm
  • Min.width panel:50mm
  • Manufacturing Principles:Glue Tank Overhead
  • Customized:Customized
  • Heating Power:1.8kw
  • Feeding Motor Power:0.75kw
  • Air Pressure:>=4kg,Cm²
  • Motor Power:0.37kw(0.18kw)
  • Speed Adjustment:Stepless Speed Regulation
  • Application Range:Melamine,Veneer,PVC,etc
  • Banding Tape Thickness:0.15-3mm
  • Edge Width:10-50mm
  • Shape of Workpiece:Straight&Curved Line
  • Transport Package:Wooden Case
  • Specification:1CBM
  • Trademark:QDZD
  • Origin:Qingdao
  • HS Code:84659400
  • Production Capacity:500sets,Year

Description

Basic Info.

Model NO. ZD-515B Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Heating Power 1.8kw Feeding Motor Power 0.75kw Air Pressure >=4kg/Cm² Motor Power 0.37kw(0.18kw) Speed Adjustment Stepless Speed Regulation Application Range Melamine,Veneer,PVC,etc Banding Tape Thickness 0.15-3mm Edge Width 10-50mm Shape of Workpiece Straight&Curved Line Transport Package Wooden Case Specification 1CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

Manual PVC Edge Banding Machine
Technical Specification:

TypeSMF-515B (Small Glue Tank)SMF-515B (Big Glue Tank)
Heating power1.8 KW1.8 KW
Motor Power0.18 KW0.18 KW
Air pressure>=4kg/cm2>=4kg/cm2
Speed adjustmentStepless speed regulationStepless speed regulation
Feeding speed1-18 m/min1-18 m/min
Application rangeMelamine, Veneer. PVC, etcMelamine, Veneer. PVC, etc
Banding tape thickness0.15-3 mm0.15-3 mm
Banding tape width10-50 mm10-50 mm
Work piece thickness<=40 mm<=60 mm
Glue tank capacity1.5 kg3kg
Shape of work pieceStraight & curved lineStraight & curved line


Feature:

1. ISO&CE Certificate
2.It can make straight and curve edge banding
3. Unique lower-planted structure of glue dissolve, so it is stability and there is no leaking glue from box.
4. Using stainless thermostability bearing on glue box,so box has long time life
6.Double sides gluing ensures solid cement.
7.It suits for PVC Melamine ,veneer, plastic, bamboo,etc

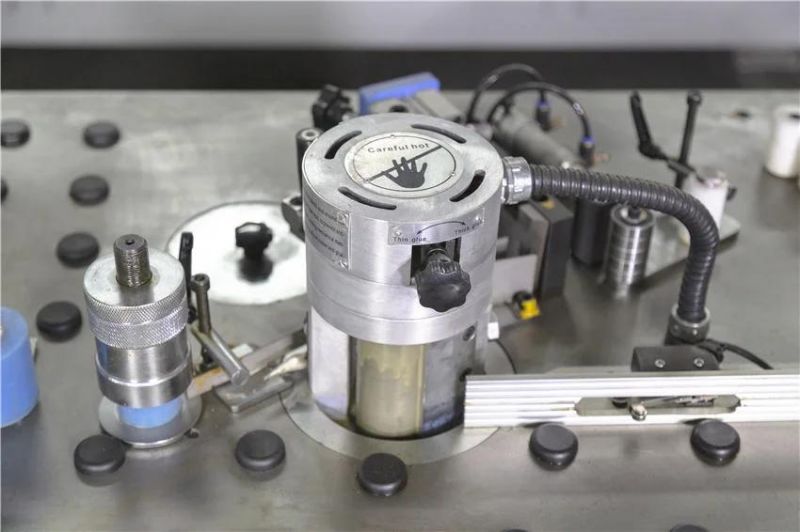

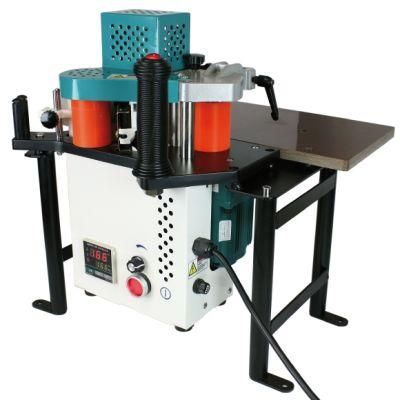

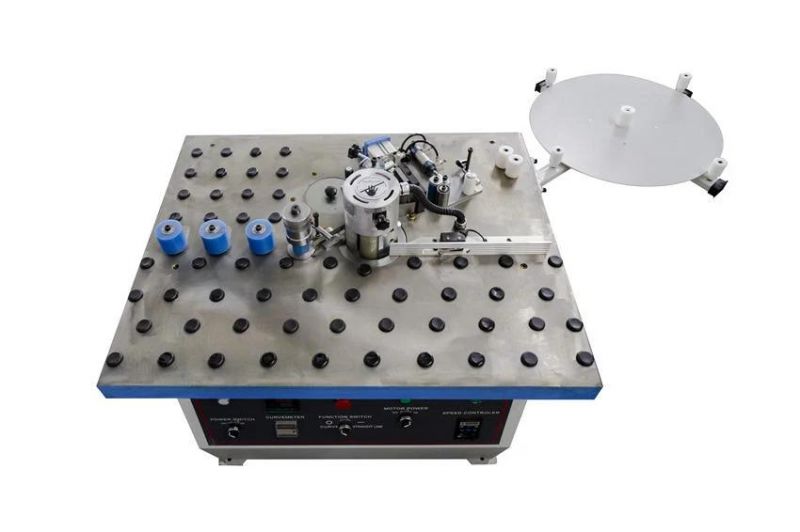

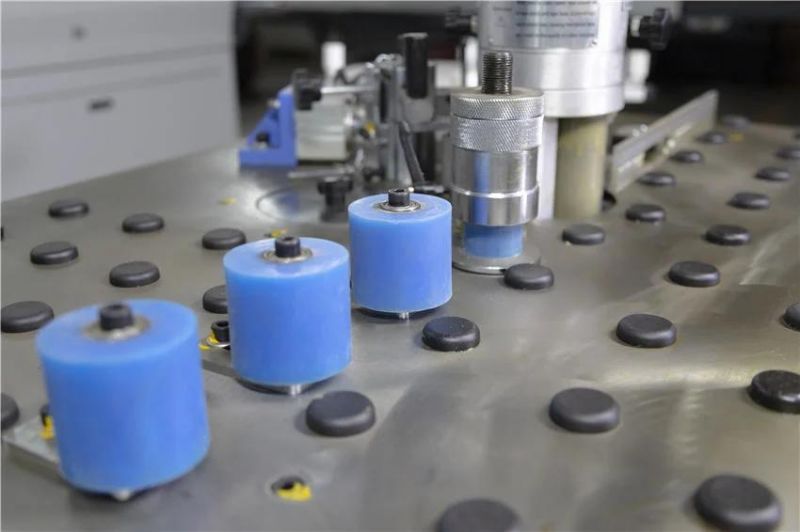

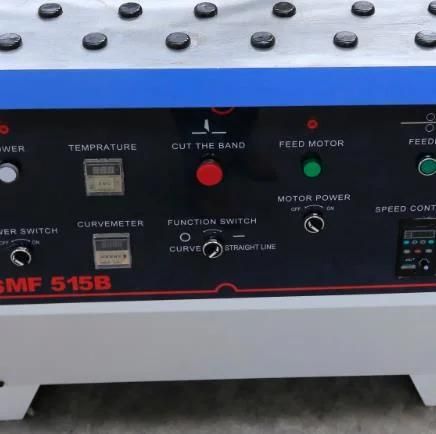

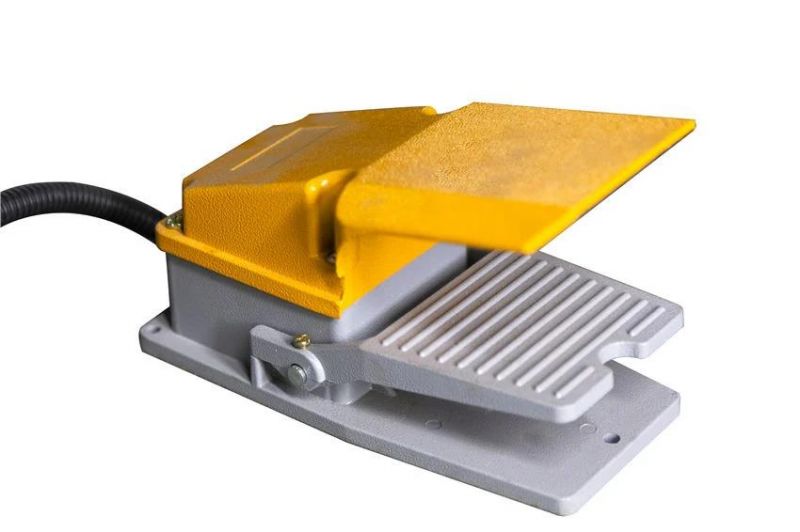

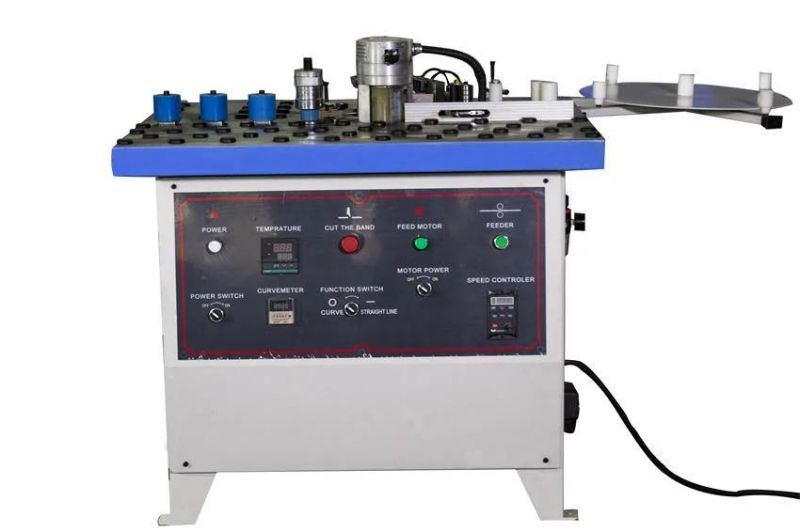

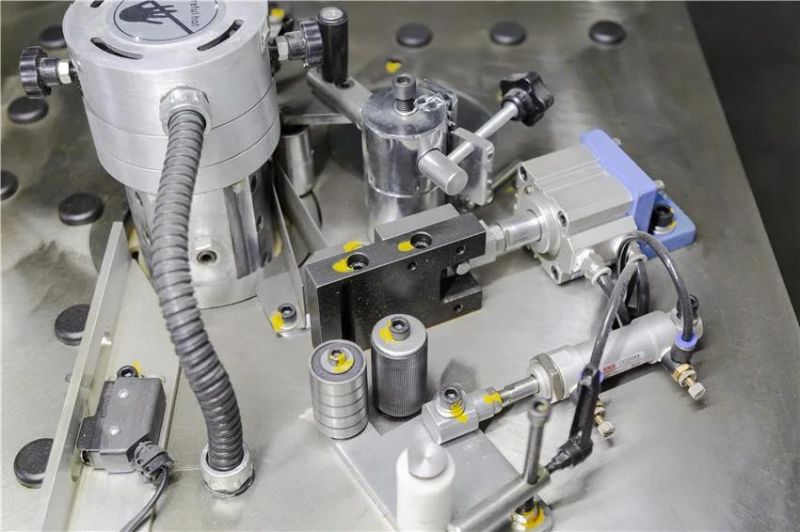

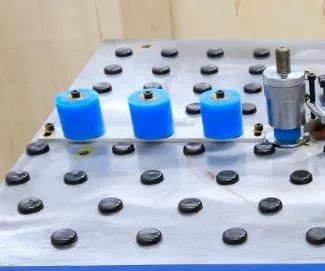

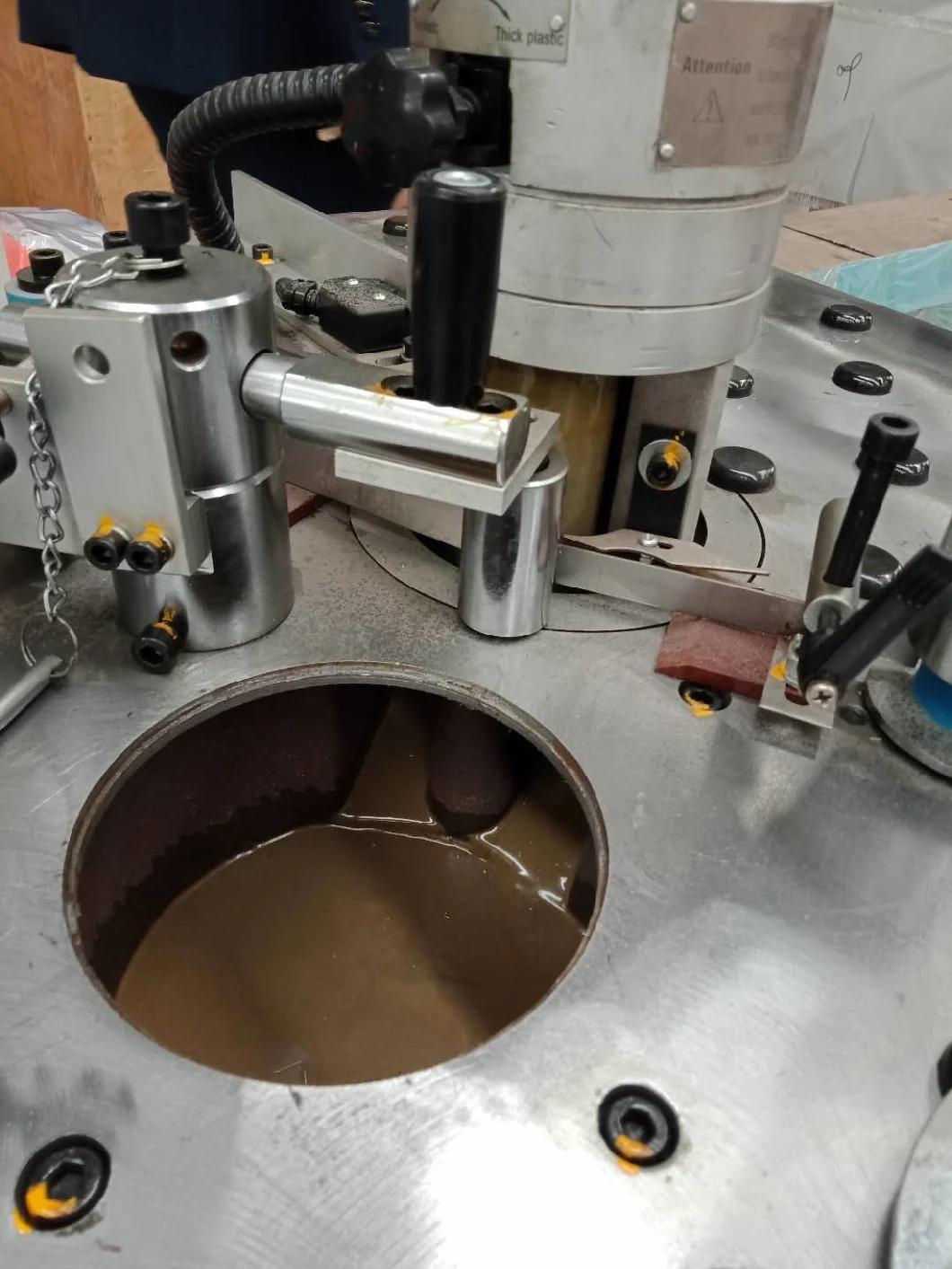

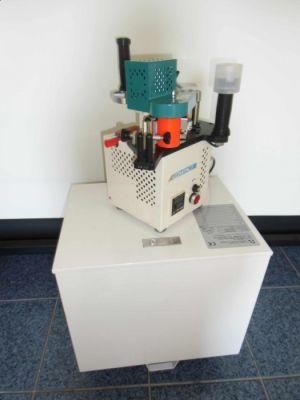

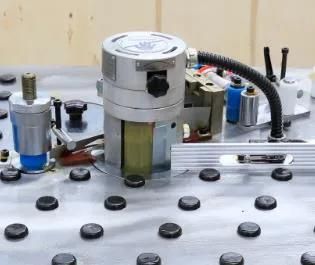

Product Details:

Manual PVC Edge Banding Machine
Manual PVC Edge Banding Machine
Manual PVC Edge Banding Machine
Manual PVC Edge Banding Machine
Manual PVC Edge Banding Machine
Manual PVC Edge Banding Machine

Manual PVC Edge Banding MachineManual PVC Edge Banding Machine
Manual PVC Edge Banding MachineManual PVC Edge Banding Machine

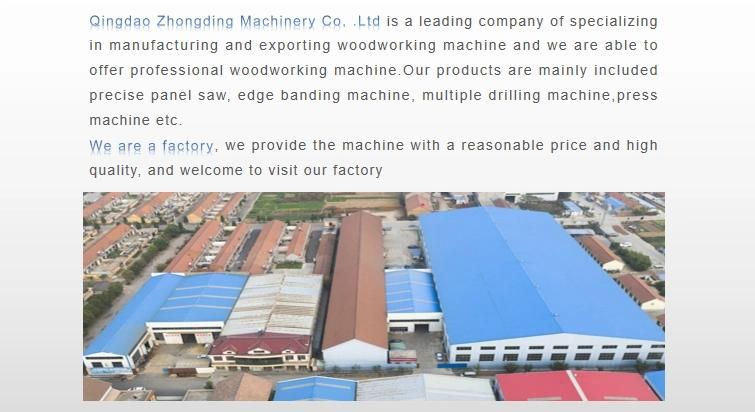

Our company:
Manual PVC Edge Banding Machine

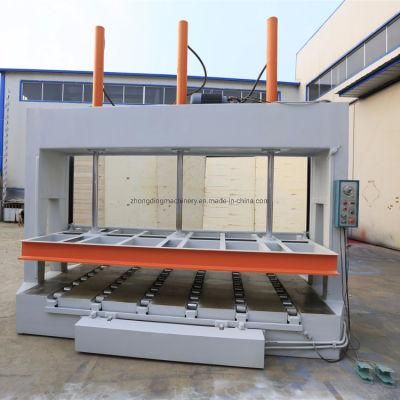

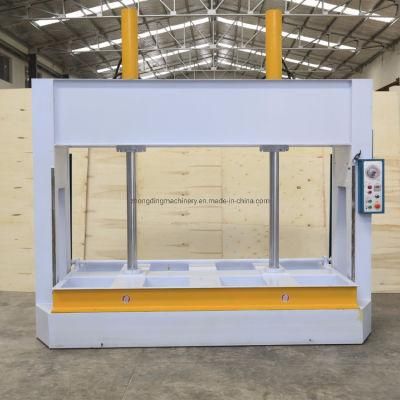

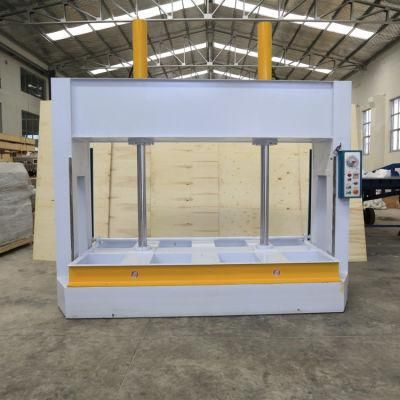

Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
