• Model NO.：ZD400T
• Customized：Customized
• Condition：New
• Color：Customized
• Dimension of Sliding Table：3200*415mm
• Tilting Saw Group：0-45
• Main Saw Motor Power：5.5kw
• Lifting of Saw Blade：Electrical Lifting
• Cutting Degree Readout：Digital Readout
• Weight：1100kgs
• Overall Dimension：3250*3150*900
• Transport Package：Plywood Box
• Specification：3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659100
• Production Capacity：200sets,1month

Basic Info.

Model NO. ZD400T Customized Customized Condition New Color Customized Dimension of Sliding Table 3200*415mm Tilting Saw Group 0-45 Main Saw Motor Power 5.5kw Lifting of Saw Blade Electrical Lifting Cutting Degree Readout Digital Readout Weight 1100kgs Overall Dimension 3250*3150*900 Transport Package Plywood Box Specification 3CBM Trademark QDZD Origin Qingdao HS Code 84659100 Production Capacity 200sets/1month

Product Description

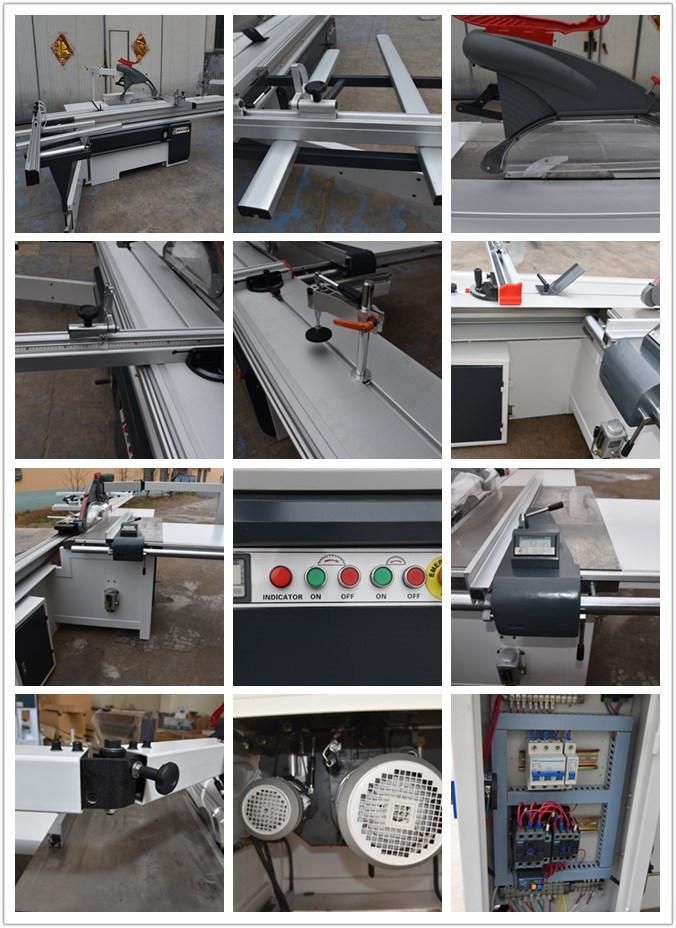

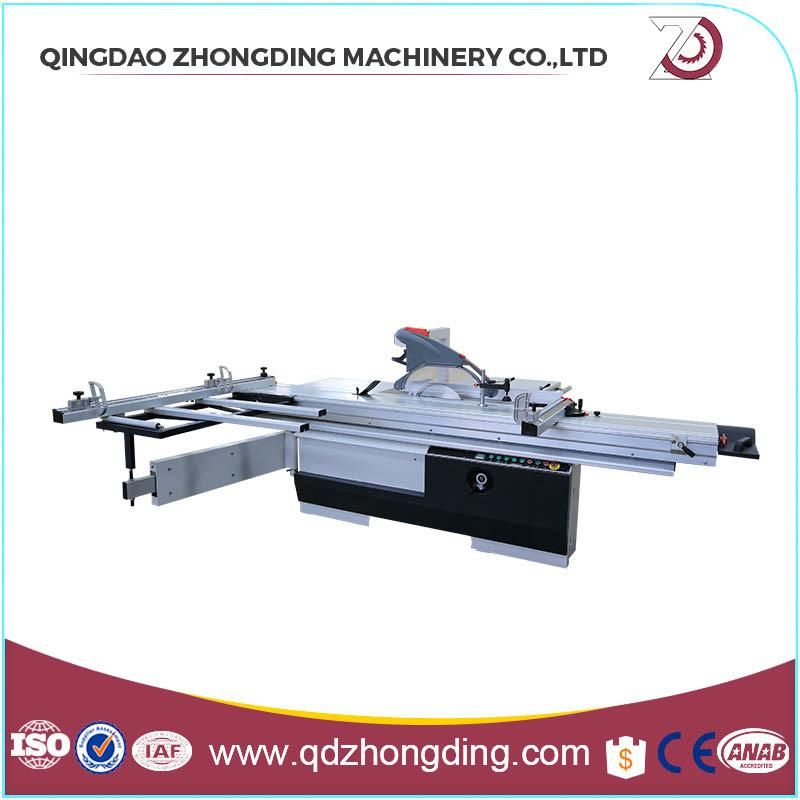

ZD400T Precise Panel Saw

Basic Info

Model NO.: ZD400T                                                                                             Certification: CE, ISO
Customized: Customized                                                                                    Condition: New
Color: Customized                                                                                                Dimension of Sliding Table: 3200X415 mm
Tilting Saw Group: 0-45                                                                                       Main Saw Motor Power: 5.5 Kw
Lifting of Saw Blade: Electrical Lifting                                                               Cutting Degree Readout: Digital Readout
Weight: 1100 Kgs                                                                                                  Overall Dimension: 3250X3150X900 mm
Trademark: QDZD                                                                                                 Transport Package: Plywood Box
Specification: 3CBM                                                                                              Origin: Qingdao
HS Code: 84659100


Technical Data:


Type	ZD400T
Dimension of sliding table	3200x415 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	400 mm
Max cutting height (90°)	125 mm
Speed of main saw spindle	3000/4000/5000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	22 mm
Lifting of saw blade	Electrical lifting
Cutting degree readout	Digital readout
Weight	1100 KGS
Overall dimension	3250x3150x900 mm





1.Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood    structure and similar hardness.
2.Moveable table guide track is chromium steel bar structure, exact and durable
3.The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent
4.With oxidation treatment, the sliding table surface is beautiful and durable
5.The body is welded with heavy-duty steel and with special heat treatment, better stability and lower



















Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100
8) Certificate: CE&ISO 9000 Certificate

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
  Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
