• Model NO.：RVH270-130
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Feed Speed：80m,Min
• Machine Painting Color：Customized
• Transport Package：Wooden Case
• Specification：12950*6550*1750mm
• Trademark：SAMACH
• Origin：China
• HS Code：84659100
• Production Capacity：50sets,Month

Basic Info.

Model NO. RVH270-130 Certification CE, ISO Customized Customized Condition New Color Customized Feed Speed 80m/Min Machine Painting Color Customized Transport Package Wooden Case Specification 12950*6550*1750mm Trademark SAMACH Origin China HS Code 84659100 Production Capacity 50sets/Month

Product Description

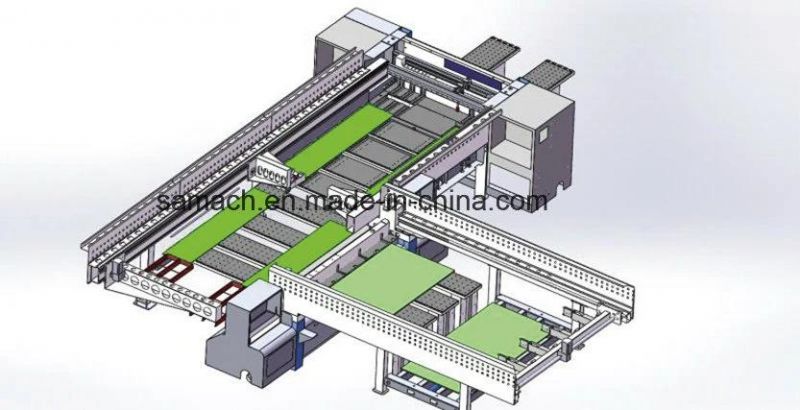

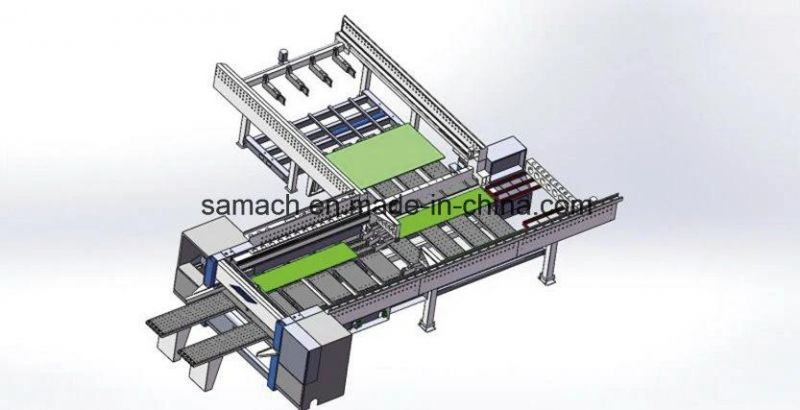

High Efficiency and Automaticity Vertical and Horizontal Panel Saw





Panel saw is suitable for cutting different material plates, such as perspex sheet, plywood,
ABS board, PVC board, solid wood, aluminum alloy and other materials in the vertical and
horizontal cutting incision;

The machine adopts computer control and man-machine integration operation. Workers
inputs cutting data on a computer machine, computer automatically plate; Workers start
the machine, the machine run automatically and cut precisely on processed board.

PLC control system
Main saw and groove saw lifted as one part with split motor.
The carrier driven by inverter motor.

Paramaters:


Model	RVH270-130
Max. Horizontal saw cutting length	0-2700mm
Max. Longitudinal saw cutting length	1300mm
Diameter of main saw blade	Φ400mm*2
Diameter of scoring saw	φ180mm*2
Maximum cutting thickness	100mm
Feeding speed	80m/min
Motor power	15kw*2
Overall dimension(L*W*H)	12950*6550*1750mm

Standard configuration:

1 Rack design:narrow mesa, rack adopts lifting structure, the rack is stable and no deformation,
It's convenient to maintain.

2. Gripper design: Double gripper scissors-style structure, grip small board more stable. Its bottom
can be slightly moved to prevent scratches on the bottom of the workpiece.

3 Guide rail installation: Rail is installed outside of the rack, greatly reduce the probability of direct
adhesion of dust on the rail. 2 rails installed in parallel, run faster and more stable, the car will not tilt.

4.Beam: Two-axis output cylinder lift at two sides , and the cylinder piston rod can be guided, flexibility.
Higher the inside two-tier structure of beam, hard to deformation , better dust collect.

5.Saw carriage: Two saws are lifted with linear guide, independent control, laser cutting board to do
with the tenon card welding. Aluminum motor.

6.Saw carriage transmission: Rack gear, the rack is installed at the bottom of the rack to form the
overall structure, lifting does not require cleaning.

7.Gripper control: With full closed-loop control, precision errors and small gaps inside mechanical
parts can be directly compensated. Magnetic head:Siko.

8.Dust collect: Thicker shield and isolation layer at both sides, compressed dust space, it can
quickly collect dust , down straight into the dust tank

9.Electrical: Schneider

10 Saw shaft bearings: precision angular contact ball bearing

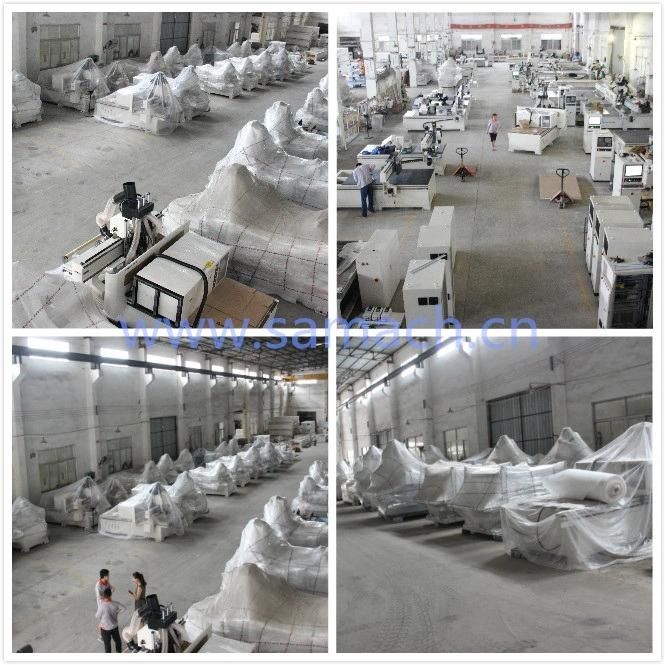

Factory

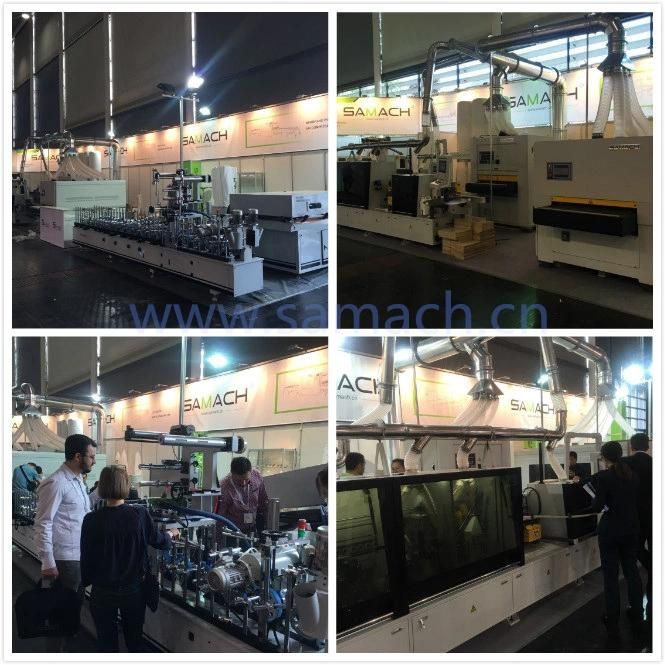

Exhibition



Reasons to choose Samach:

1: good resources with high quality in China.
2: quick delivery
3: excellent after-sale service
4: 24 hours technical support through email or calls.
5: freind partner relationship.
