ZICAR panel saw sliding table woodworking vertical panel saw MJ6230B

JAYA INTERNATIONAL CO., LTD.
  • Type：Table Panel Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：Hydraulic Semi-automatic
  • Automatic Grade：Automatic
  • Precision：High Precision

Base Info

  • Model NO.：MJ6230B
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Max.incising length：3000mm
  • Max.incising thickness：48mm
  • Net weight：about1700Kg
  • Total Power：7.5Kw
  • Main blade motor Power：5.5Kw
  • Transport Package：Wrapping Film
  • Specification：1000x4544x1350mm
  • Trademark：ZICAR
  • Origin：Shandong
  • HS Code：8465910000
  • Production Capacity：50sets,Month

Description

Basic Info.

Model NO. MJ6230B Certification CE, ISO Customized Customized Condition New Color Customized Max.incising length 3000mm Max.incising thickness 48mm Net weight about1700Kg Total Power 7.5Kw Main blade motor Power 5.5Kw Transport Package Wrapping Film Specification 1000x4544x1350mm Trademark ZICAR Origin Shandong HS Code 8465910000 Production Capacity 50sets/Month

Product Description

ZICAR Inquiry Hot saw machines sliding table and table saw panel MJ6230B

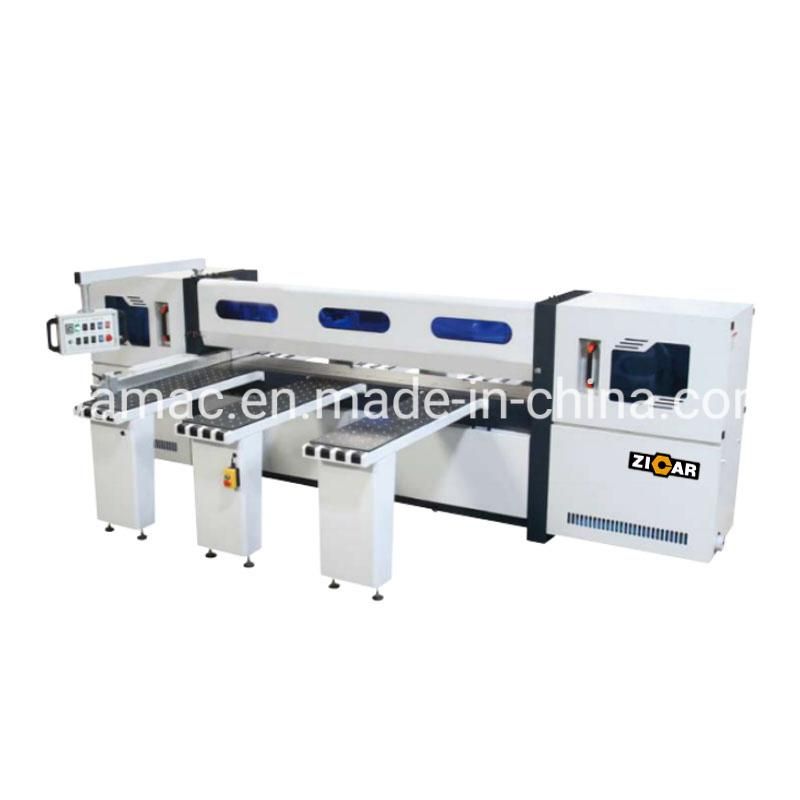

ZICAR panel saw sliding table woodworking vertical panel saw MJ6230B
Features1.German body technology is used to drive the saw body of the machine body, the perfect combination of reducer control and rack and pinion transmission, the cutting accuracy is within ± 0.15, and the automatic positioning sawing stroke can be realized according to different sawing widths
2.Special design which increasing the cutting speed, reducing the load of the saw blade is more durable and stable.
3.Taiwan Yonghong PLC, Schneider contactors and wiring, high quality, stable and durable.
4.The steel belt square rail is hardened and hard to deform, high efficiency and dustproof, stable operation and higher precision
5.Feeding protection, overtravel protection, emergency stop protection, limit limit, air pressure alarm, safety door guard, fueling system alarm, etc.Product Parameters
ModelZICAR brand MJ6230B
Max.incising length3000mm
Max.incising thickness48mm
Main blade motor Power5.5Kw
Outer diameter of main bladeΦ300mm
Inner diameter of main bladeΦ30mm
Revolving speed of main blade4700rpm
Outer diameter of secondary bladeΦ120mm
Inner diameter of secondary bladeΦ20mm
Revolving speed of secondary blade6700rpm
Cutting speed15m/min
Returning speed15m/min
Air pressure0.6Mpa
Machine outline size1000x4544x1350mm
Total Power7.5Kw
Net weightabout1700Kg

Show Details

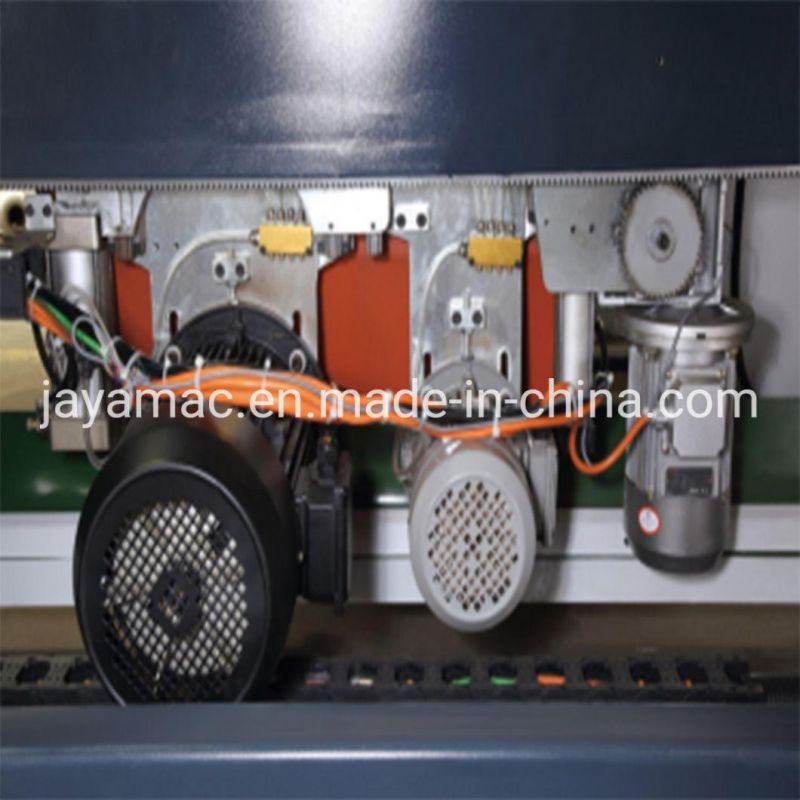

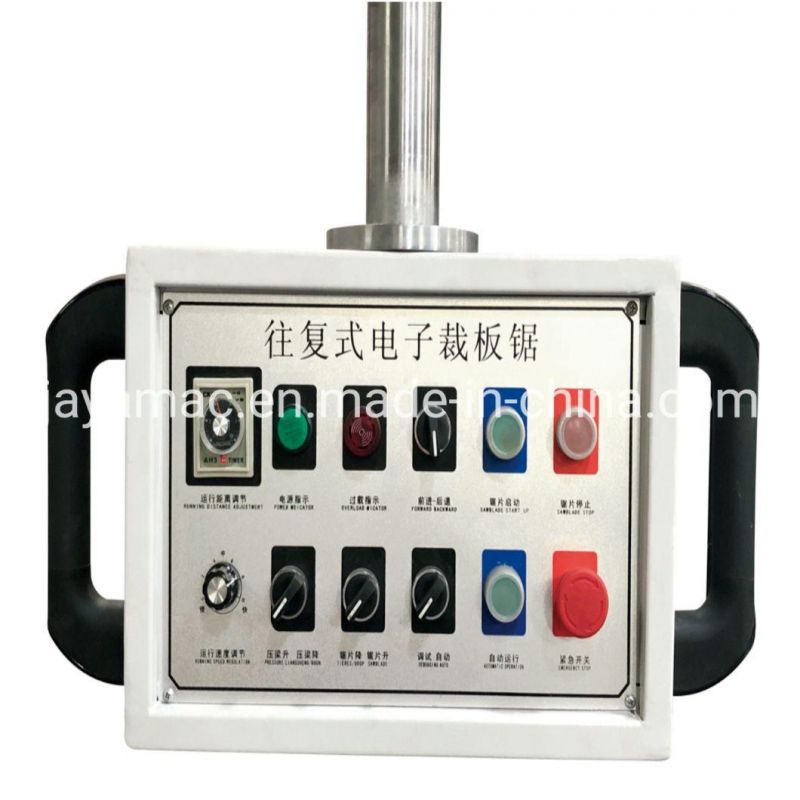

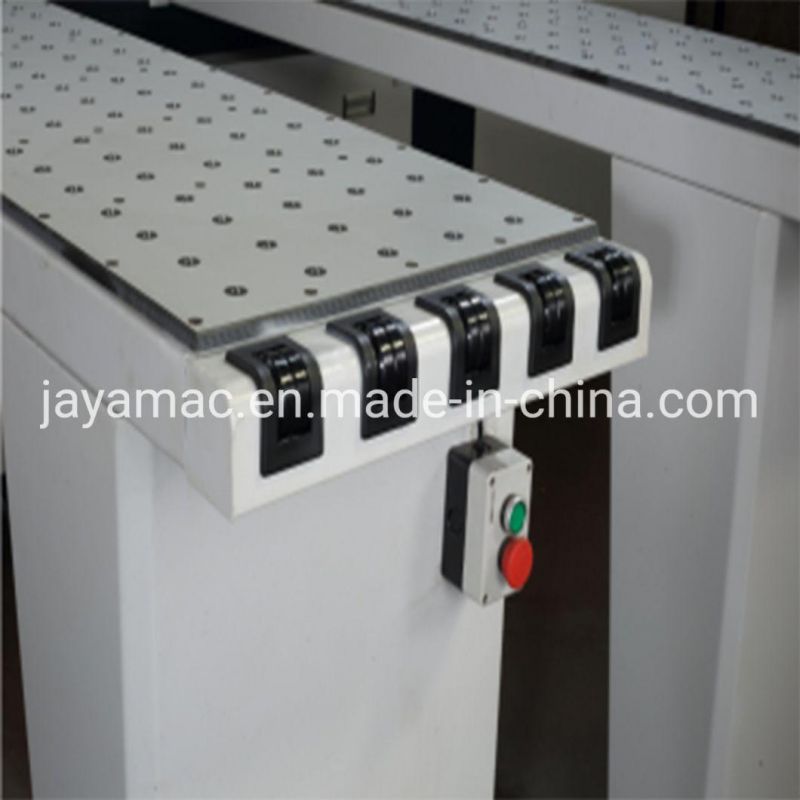

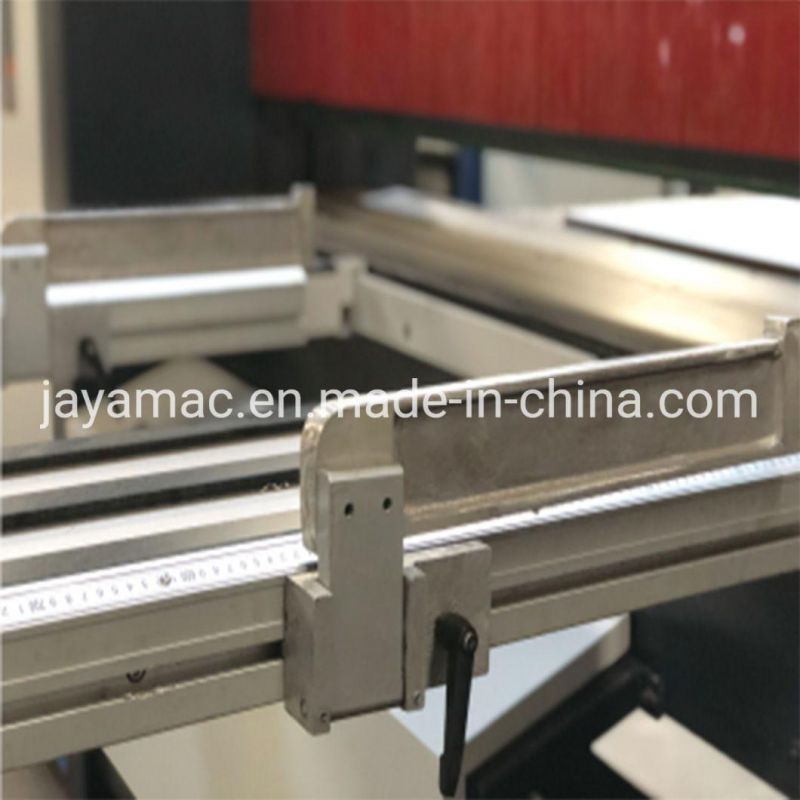

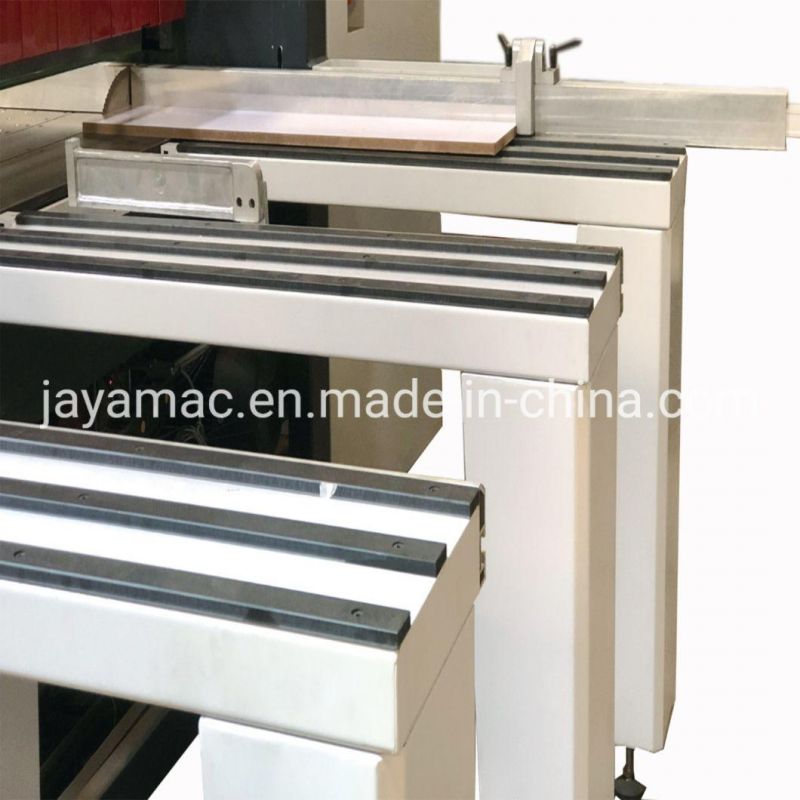

ZICAR panel saw sliding table woodworking vertical panel saw MJ6230BZICAR panel saw sliding table woodworking vertical panel saw MJ6230BZICAR panel saw sliding table woodworking vertical panel saw MJ6230BZICAR panel saw sliding table woodworking vertical panel saw MJ6230BZICAR panel saw sliding table woodworking vertical panel saw MJ6230B

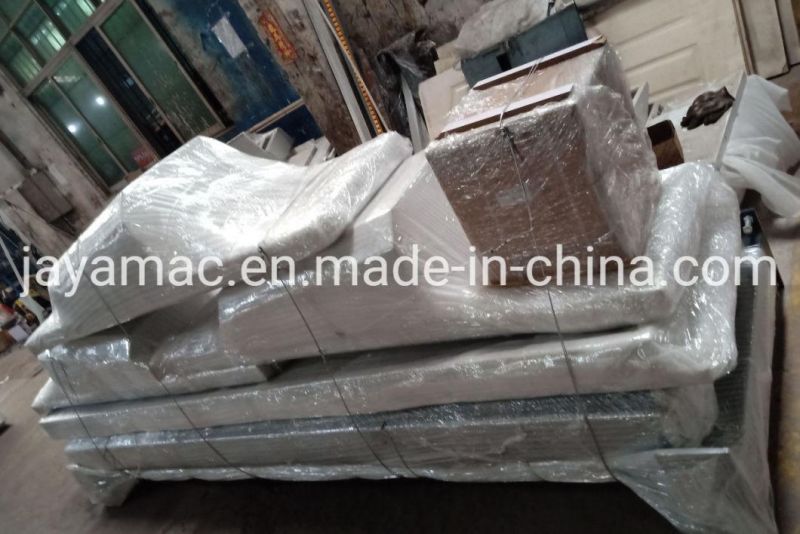

Product packaging
ZICAR panel saw sliding table woodworking vertical panel saw MJ6230B
