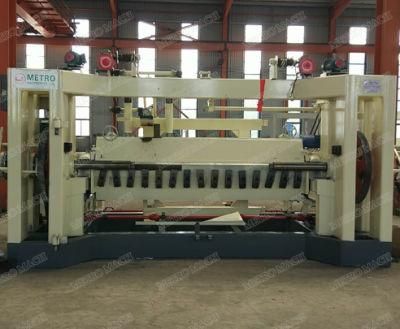

Cast Iron Body CNC Hydraulic Spindleless Veneer Peeling of Plywood Equipment
Linyi Sin San Lin Smart Machinery Co., Ltd.- Certification：CE, ISO
- Power：29kw
- Max. Peeling Diameter：φ300mm
- Transport Package：Stand
- Specification：Cast Iron Body
- Trademark：METRO MACH
Base Info
- Model NO.：MQS1813,300
- Origin：Shandong, China
- Production Capacity：45m,Min
Description
Basic Info.
Model NO. MQS1813/300 Origin Shandong, China Production Capacity 45m/MinProduct Description
The thickness of peeling veneer can adjust from 0.5mm to 3.6 mm
The diameter of remaining wood core is less than 30 mm

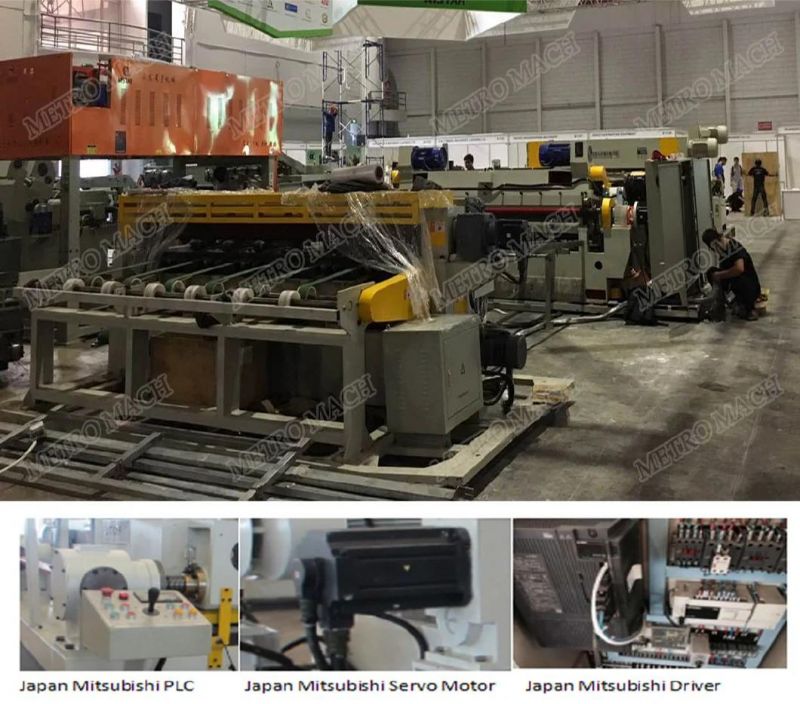

English language PLC is easy to operate
Bigger power invert
Best Cast steel body
| Model | MQS1813/300 | MQS1813/380 | MQS1813/380S |
| Grade | A | AA | AAA |
| Max.Working length | 1400mm | 1400mm | 1400mm |
| Max .Diameter | Φ300mm | Φ380mm | Φ380mm |
| Diameter of Left wood | Φ30mm | Φ32mm | Φ32mm |
| Working speed range | 45m/min | 50m/min | 55m/min |
| Thickness of veneer | 0.5-3mm | 0.5-3.2mm | 0.5-3.6mm |
| Main motor power | 2X11kw China motor | 2X11kw China motor | 2X15kw China motor |
| Servo motor Power | 7kw CTB servo China | 7kw Mitsubishi Japan | 11kw Mitsubishi Japan |
| Body | Cast steel body | Fine cast steel body | Fine cast steel body |
| Automatic hydraulic knife clamping system | N/normal mechanical change knife | N/automatic hydraulic options | Automatic hydraulic 4kw change knife |
| Double roller driver | By gear | By gear | By gear |
| Total power | 29kw | 29kw | 45kw |
| Machine weight | 4100kg | 4900kgs | 5500kgs |
OUR SERVICE:
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After-sale services:
1) 24 hours online service
2) Provide the video with Install and debug the equipment
3) Provide technical exchanging
RFQ:
1.Q:Qulity Control?
A:Each machine will be test 3 times before delivery.
2.Q:Delivery time?
A:30-60 days after receipt of deposit.
3.Q:Factory layout design?
A:Our engineers will accord your plan design specially .
4.Q:Warranty?
A:12 months.And we will supply machine parts all the time.
5.Q:Payment terms?
A:TT / LC are accepted.
