• Model NO.：2325-4
• Control System：Nc Studio or Richauto
• Guild Rail：Hiwin Square Rail
• Ball Screw：PMI, Taiwan
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. 2325-4 Control System Nc Studio or Richauto Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 PCS/Month

Product Description

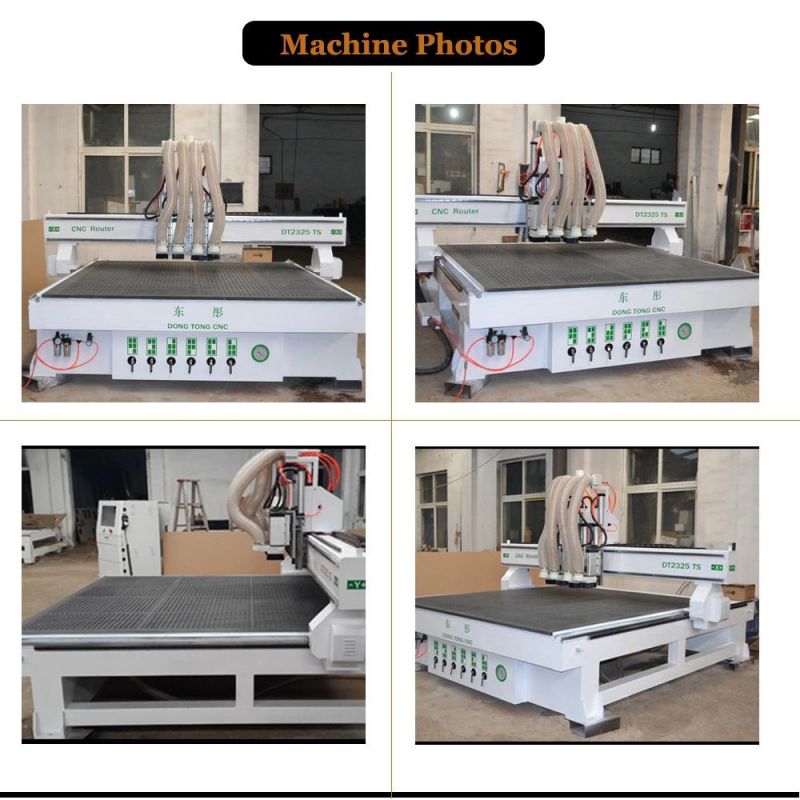

4 Spindles, Multi-workstage CNC router machine for wood cutting,engraving.

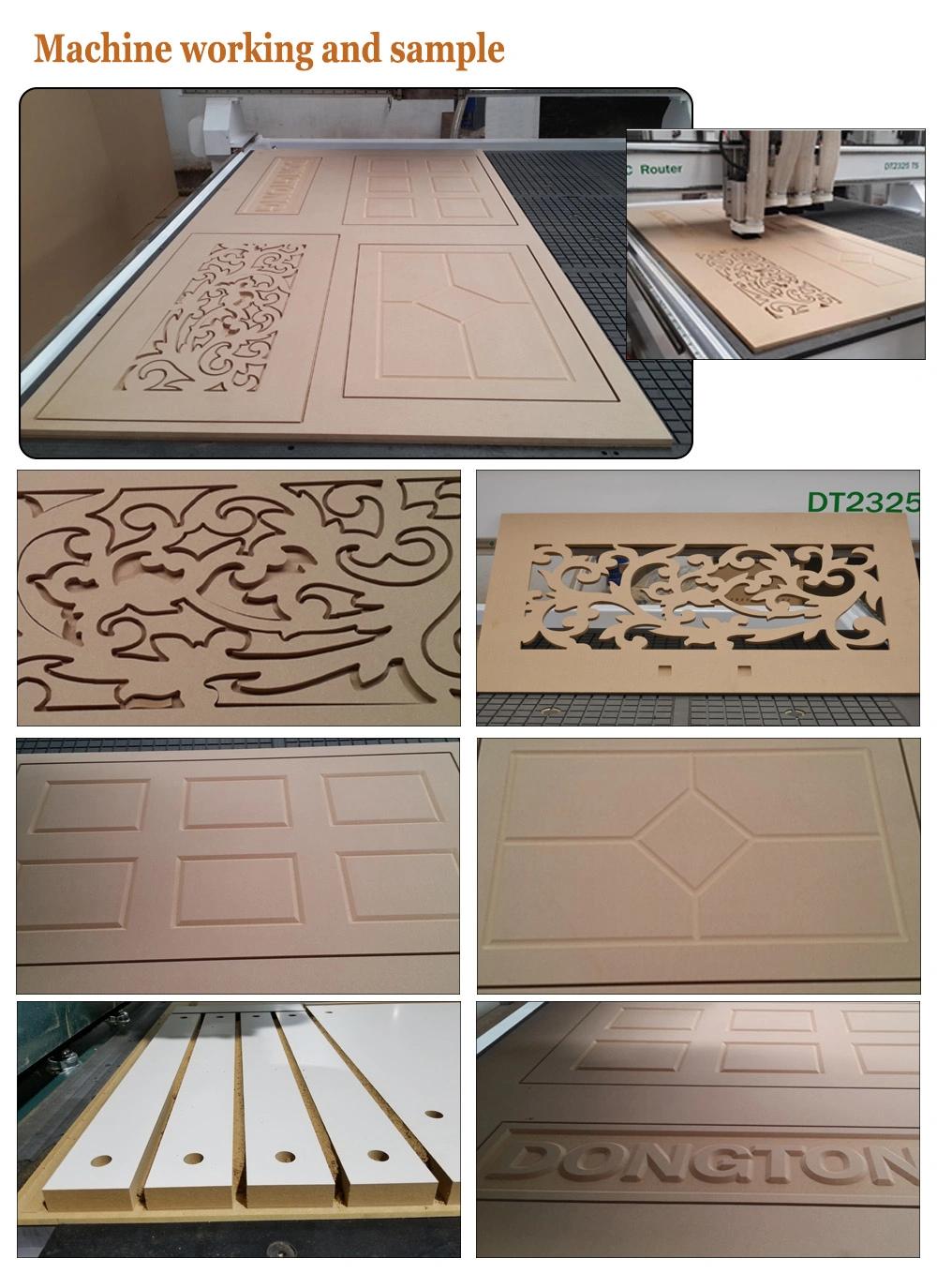

Multi workstage CNC router machine apply to process cabinet, door, desk, panel furniture etc. It can do cutting, 2D and 3D engraving.

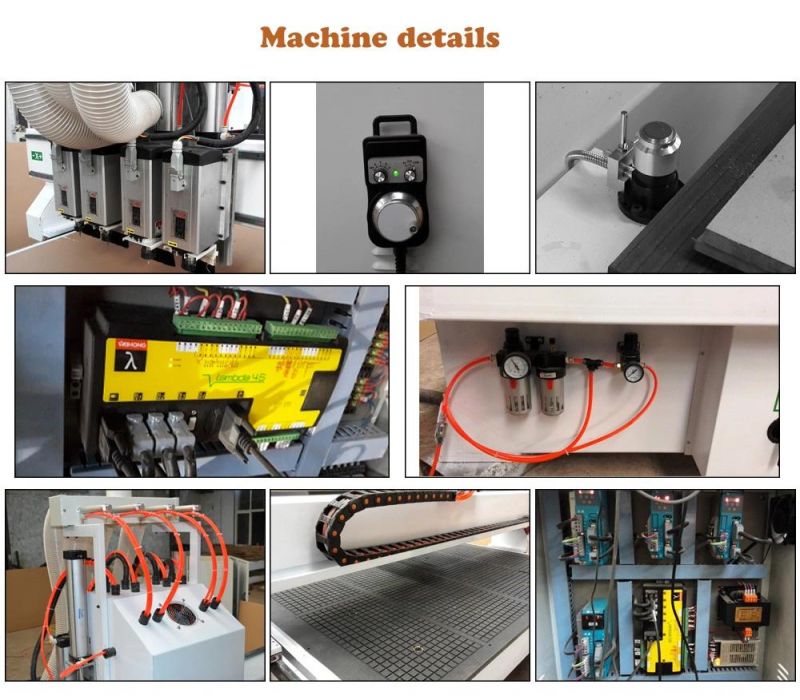

1. High efficiency:  multi spindle work together,  auto tool change,
2. High speed transmission:  Helical rack gear drive. travel speed reach to 60m/min
3. High speed working: dual motors for Y axis. Rack gear drive
4. NC STUDIO system: power off restoration, forecast working time,continuation on
   break point.
5. High precision: mastercam, type3, UG, Autocad, Artcam, Proe
6. 4 tools of different types.

NO	Performance	Performance	Parameter
1	Working area	X axis	2300mm
		Y axis	2500mm
		Z axis	200mm
2	Table size		2300mm*2500mm
3	Accuracy	Processing precision	0.02mm
		Reposition precision	0.02mm
4	Drove mode	X axis	Helical rack and pinion
		Y axis	Helical rack and pinion
		Z axis	Ball screw
5	Speed	Max travel speed	30000mm/min
		Max engraving speed	15000mm/min
6	Spindle (air cooling)	Spindle power	4.5KW
		Spindle speed	0_24000r/min
7	Running mode		Servo
8	Operating voltage		AC380V/50HZ
10	Operating system		Nc Studio
11	Table		Vacuum
12	Machine's size		3300x3200x2000mm

1. Technical support by call, email or whats app
2. Friendly English version manual.
3. Engineer available to service machine overseas. Buyer should pay the fee.
4. Warranty period: 1 year for the whole machine and 6 months for spindle
5. Machine will be adjusted before dispatch.
6. Free training course in our factory.
7. Free suggestion and consulting, lifetime technical support .



2325-4  Multi spindle  4 Workstage CNC Router for wood, MDF,
If you want to process wood door, wardrobe, cabinet,  4 spindles 4 workstage machine is the basic choose.
