Woodworking Wide Belt Sander Machine for Making Plywood
Linyi Sin San Lin Smart Machinery Co., Ltd.- Type:Belt Wood Sander
- Automatic Grade:Automatic
- Variable Speed:Variable Speed
- Certification:CE, ISO, FDA
- Customized:Customized
- Condition:New
Base Info
- Model NO.:SRAP 1300
- Color:Customized
- Transport Package:Container
- Specification:2625x2680x2130mm
- Trademark:METROMACH
- Origin:China
- Production Capacity:500 Sets,Year
Description
Basic Info.
Model NO. SRAP 1300 Color Customized Transport Package Container Specification 2625x2680x2130mm Trademark METROMACH Origin China Production Capacity 500 Sets/YearProduct Description

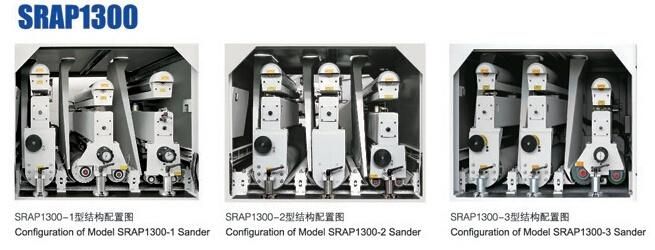

Product DescriptionWide belt Sander Machine for Making Plywood, Particle Board, MDF1. Performance characteristicsSRAPl300-1 type is mainly used for plywood, particleboard, MDF and other parts of the constant sanding and fine sanding.
SRAPl300-2 type is mainly used for finished wood, solid wood board, blockboard and other parts of the fixed sand and fine sanding
SRAPl300-3 type is mainly used for medium density, plywood, particleboard and other parts of the constant sanding and fine sanding.
Sand frame with casting structure, deformation is small, good vibration effect.
With fault display function easy maintenance. In the event of a fault, the device is powered off, and the brake and the conveyor bed are protected from falling to protect the workpiece from damage.
Imported PLC control unit to control the motor running, belt swing and thickness display, the effective guarantee of the machine's anti-jamming capability.
2. Technical Parameters
SARP1300-1 | SRAP1300-2 | SRAP1300-3 | |
Processing width | 40-1300mm | 40-1300mm | 40-1300mm |
Processing thickness | 2.5-100mm | 2.5-100mm | 2.5-100mm |
Processing length | ≥630mm | ≥500mm | ≥630mm |
1 # sand frame belt speed | 21m/s | 21m/s | 21m/s |
2 # sand frame belt speed | 18m/s | 21m/s | 21m/s |
3 # sand frame belt speed | 12m/s | 12m/s | 18m/s |
Feeding speed | 6-30m/min | 6-30m/min | 6-30m/min |
Belt size (WxP) | 1330x2200mm | 1330x2200mm | 1330x2200mm |
Total motor power | 88.62kw | 88.62kw | 95.62kw |
Main motor power | 37kw,30kw,15kw | 37kw,30kw,15kw | 37kw,30kw,22kw |
Working pressure | 0.55Mpa | 0.55Mpa | 0.55Mpa |
Compressed air consumption | 0.2m3/min | 0.2m3/min | 0.2m3/min |
Air intake | 12000m3/h | 12000m3/h | 12000m3/h |
Suction wind speed | 25-30m/s | 25-30m/s | 25-30m/s |
Dimensions (L x W x H) | 2625x2680x2130mm | 2280x2680x2130mm | 2280x2680x2130mm |
Net weight | 4700kg | 4700kg | 4800kg |
3. More Pictures
4. Services
Pre-sale services:
1) Provide the free consultation of the equipment

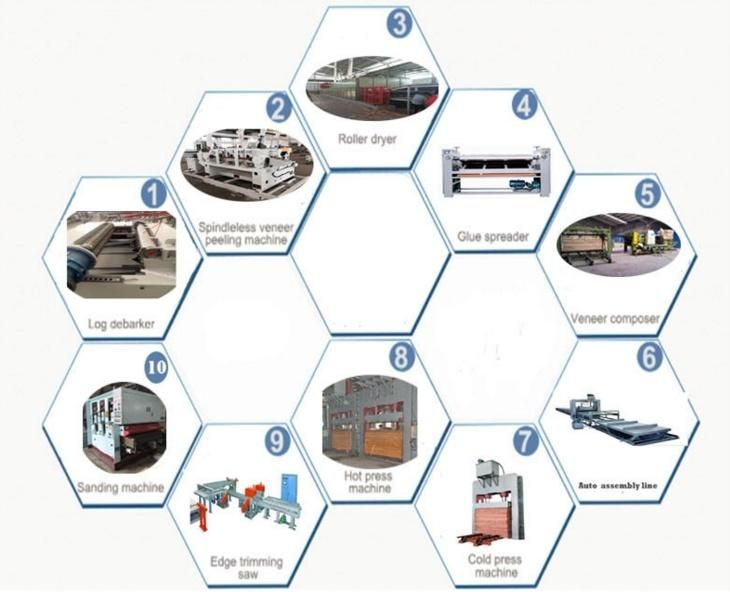

2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the video with Install and debug the equipment
3) Provide technical exchanging
Welcome to Contact
