• Model NO.：BQK1827F1
• Specification：4600× 1850× 1700
• Trademark：METRO
• Origin：China
• Production Capacity：10 Sets, Month

Basic Info.

Model NO. BQK1827F1 Specification 4600× 1850× 1700 Trademark METRO Origin China Production Capacity 10 Sets/ Month

Product Description

Product Description9FT Wood Veneer Spindleless Rotary Peeling Machine1. Product Features:
1.The peeling Speed can be changed automatically according the Program setting.
2.Automatic knife cutter peeling angle adjustment,the veneer surface finish is very smooth, increase the quality of the veneer.
3.CNC knife peeling angle control,the veneer thickness can be changed by touch screen.
4.The after angle of knife cutter are designed to change with the log diameter.
5.By using ball screw.
6.The worktable movement use Precision linear guide rail.
7.Electric parts use Schneider.
8. The machine has Automatic Hydraulic Knife Change system, Japan Real Mitsubishi Servo System,Siemens Motor. And the machine is Casted Iron Body.

2. Parameters:

MOdel	BQK1827F1
Max Peeling Length(mm)	2600
Max Log Diameter(mm)	Φ320
Left wood (mm)	Φ 40
Thickness(mm)	0.8 - 3.0
Speed	32
TOTAL POWER(kw)	25.2
SIZE mm)	4600×1850×1700
Weight(kg)	7500

3. More Pictures:






4. Service:

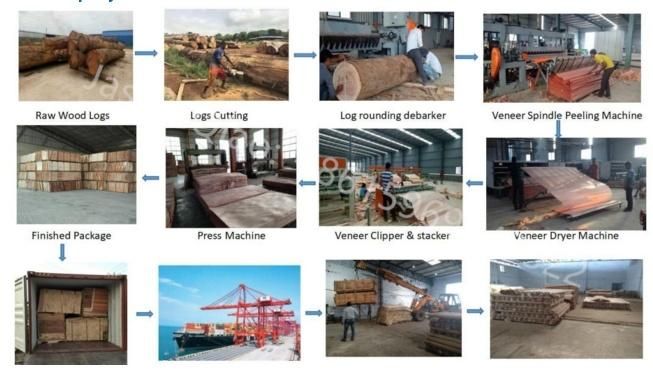

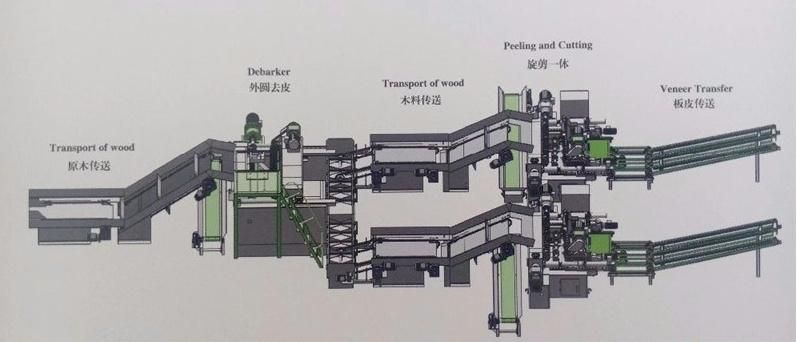

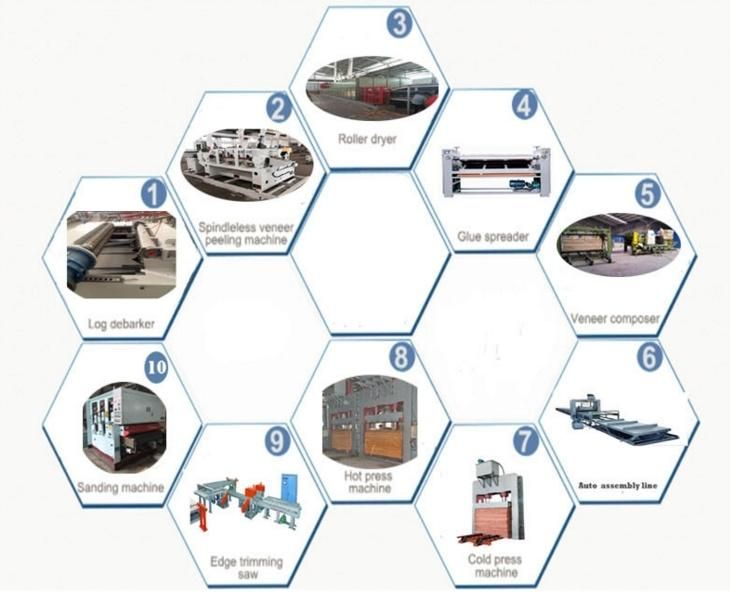

1. We supply full core/face veneer production line according to customer's demand, fully/semi-automatic avaliable.
2. One year guarantee of machines, and lifetime after-sales service and information consult.
3. Our technical people have much experience in installation, debugging, run testing all kinds of machine in different countries.
4. Our company attends most of the international exhibitions every year, and will visit the local customers to collect customer's feedback and suggestions on our machines, then we can update our machines continuously.


Welcome to Contact
