Wood Veneer PLC Control Roller Conveyor Dryer Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification:CE, ISO, FDA
  • Heating Source:Boiler
  • Working Width:2800mm
  • Length of Heating Section:2000mm X 8 Sections
  • Length of Cooling Section:Section:T2000mm X 1 Section
  • Heating Medium:Thermal Oil or Hot Steam

Base Info

  • Model NO.:BG1333
  • Transport Package:Container
  • Specification:2300x5200x4100mm
  • Trademark:METRO
  • Origin:China
  • HS Code:8419320000
  • Production Capacity:50set,Month

Description

Basic Info.

Model NO. BG1333 Transport Package Container Specification 2300x5200x4100mm Trademark METRO Origin China HS Code 8419320000 Production Capacity 50set/Month

Product Description

Product Description

Plywood Veneer PLC Control Dryer MachineMAIN FEATURES:
This series of roller dryer is one of the main machines in plywood production line. It is very suitable for wet clipping processing and drying thick veneer.

Advantage:New technology and advanced PLC controlling system have been used for effective and quality drying veneers with lower energy consumption.

The BG1333 roller dryer machine is 13 sections as a standard, 2 meters as a standard for one heating section, one cooling section, one conveying system, one input roller table, and one output roller table. Customers can use the machine from 8 sections to 18 sections that it is up to your needs.

TECHNICAL SPECIFICATIONS:
Machine modelBG1333
Density550Kg/m3
Veneer thickness range1.5-3.6mm
Initial moisture content80%
Final moisture content10%
Load ratio80% to 85%
Woking width2800mm
Working decks3decks
Length of heating section2000mm x 8 sections
Length of cooling section2000mm x 1 section
Transmission speed0-15m per min
Drying capacity3-4m3 per hour
Steam consumption2100kg per hour
Installation motor power117.5kw
Transmission motor power7.5Kw x 3sets
Ventilation motor power11Kw x 8sets
Cooling motor power7kw
Machine oveall dimension23000x5200x4010mm
Machine net weight68000Kgs

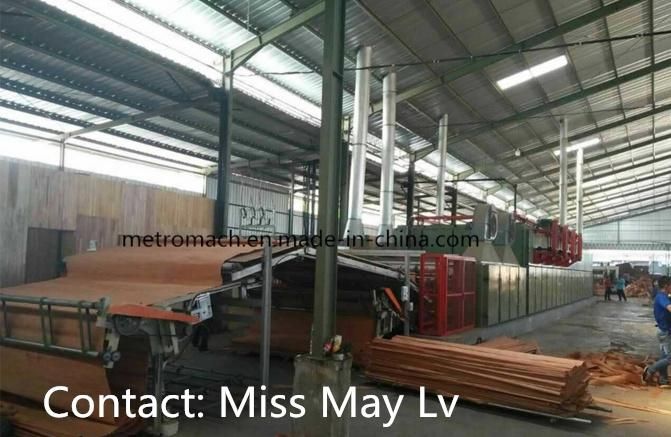

Wood Veneer PLC Control Roller Conveyor Dryer Machine
Wood Veneer PLC Control Roller Conveyor Dryer Machine


Packing&Shipping

1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.

Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
