• Model NO.：SR13A
• Color：Yellow
• Working Application：Plywood,Blockboard,Particleboard
• Working Voltage：380V,415V,440V and So on
• Transport Package：Plastic Film and Plywood Package
• Specification：2120x2980x2440mm
• Trademark：Metro
• Origin：China
• HS Code：8465930000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. SR13A Color Yellow Working Application Plywood/Blockboard/Particleboard Working Voltage 380V/415V/440V and So on Transport Package Plastic Film and Plywood Package Specification 2120x2980x2440mm Trademark Metro Origin China HS Code 8465930000 Production Capacity 1000sets/Year

Product Description

Product Description:Plywood Heavy Duty Wide Belt Sander MachineMain features:
The machine frame adopts welding integral structure to improve the machine's rigidity and service life of the machine.

The roller is made of steel and has been Dynamic balance detected precisely,which makes running smoothly and improves the sanding power.
The feeding drive adopts frequency-controller and conveyer belt,that can get high precise thickness.
The beam is strong and reliable ,which supplies a stable sanding precision.
Main technical specifications:

Model	SR13A
Working width	40-1300mm
Working thickness	3-110mm
Working length	≥750mm
Abrasive belt speed	20m/s
Feed speed	10-70m/min
Size of abrasive belt (WxP)	1330x2615mm
Total motor power	64Kw
Main motor	55Kw
Working air pressure	0.55Mpa
Consumption of compressed air	0.1m3/min
Volume of sucked air	10000m3/h
Speed of sucked air	25-30m/s
Overall dimension (LxWxH)	2120x2980x2440mm
Net weight	6500Kgs

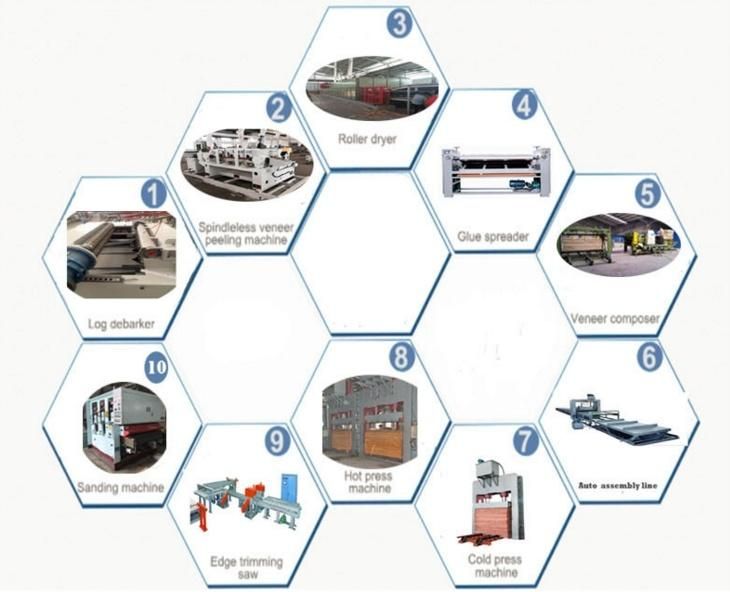

Product List:


Certifications:
