• Model NO.：RMZ-4CL
• Diamond Boring Machine Layout：N,a
• Diamond Boring Machine Spindle Configuration：N,a
• Diamond Boring Machine Spindle Number：N,a
• Certification：CE, ISO
• Delivery Time：25 Days
• Transport Package：Wooden Case
• Specification：CE Standard
• Trademark：SAMACH
• Origin：China
• HS Code：84659500
• Production Capacity：50sets,Month

Basic Info.

Model NO. RMZ-4CL Diamond Boring Machine Layout N/a Diamond Boring Machine Spindle Configuration N/a Diamond Boring Machine Spindle Number N/a Certification CE, ISO Delivery Time 25 Days Transport Package Wooden Case Specification CE Standard Trademark SAMACH Origin China HS Code 84659500 Production Capacity 50sets/Month

Product Description

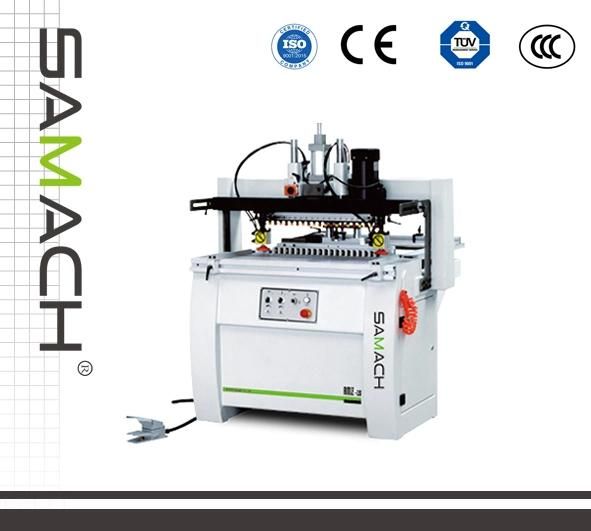

CE Certification Woodworking Two Lines Boring Machine




RMZ-2B RMZ-2C RMZ-2Fwoodworking machinery
 woodworking tools are single row drilling machine, 2 lines boring machine, automatic feedbing
boring machine(Chain),PTP6 sides drilling machine, automatic feeding boring machine(belt),
CNC borning machine, automatic boring line, hinge drilling machine, bore and dowel machines.Following
is good quality competitive price row drilling machine.

NO.	2B	2C	2F
Max center distance between holes	L*W=600mm*640mm	L*W=600mm*640mm	L*W=1000mm*640mm
Min center distance between holes	L*W=50mm*32mm	L*W=50mm*32mm	L*W=220mm*32mm
Workpiece thickness	8-50mm	8-50mm	8-80mm
Total quantity of spindles	21*2=42	21*2=42	21*2=42
Total quantity of drill lines	1+1=2	1+1=2	1+1=2
Max drilling diameter	35mm (single bit)  13mm(multi bits)	35mm (single bit)  13mm(multi bits)	35mm (single bit)  13mm(multi bits)
Max drilling depth	50mm	50mm	50mm
Dia of drill bit shaft	10mm	10mm	10mm
Installtion tool length	57/70mm	57/70mm	57/70mm
Spindle speed	2840rpm	2840rpm	2840rpm
Total power	3kw	3kw	3kw
Net weight	650kg	500kg	750kg
Overall dimensions	1300*1200*1650mm	1200*950*1450mm	2000*2500*1650mm

Reasons to choose Samac:

1: good resources with No.1 quality in China
2: quick delivery
3: excellent after-sale services
4: 24 hours technical support through email or calls.
5: freind partner relationship.

Get the maximum return on your investment with Samach's affordable, flexible and user-friendly machines, designed to help you succeed by delivering maximum performance!
