• Model NO.：CK1325
• Origin：Shandong China
• HS Code：8465990000
• Production Capacity：500

Basic Info.

Model NO. CK1325 Origin Shandong China HS Code 8465990000 Production Capacity 500

Product Description

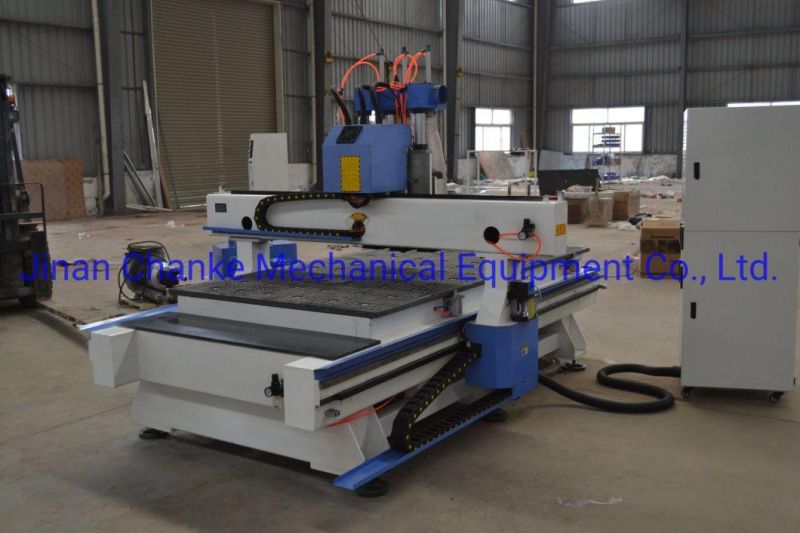

Main Feature
*Four air cooled spindlem  (HQD or Italy HSD spindle optional ),high quality and 24h continuously work.
*HIWIN square rail,good occlusion and rigidity,no distortion for long time use.
*High speed gear rack transmission for XY axis, and high precision ball screw transmission for Z axis,
ensuring high speed and high precision at same time.

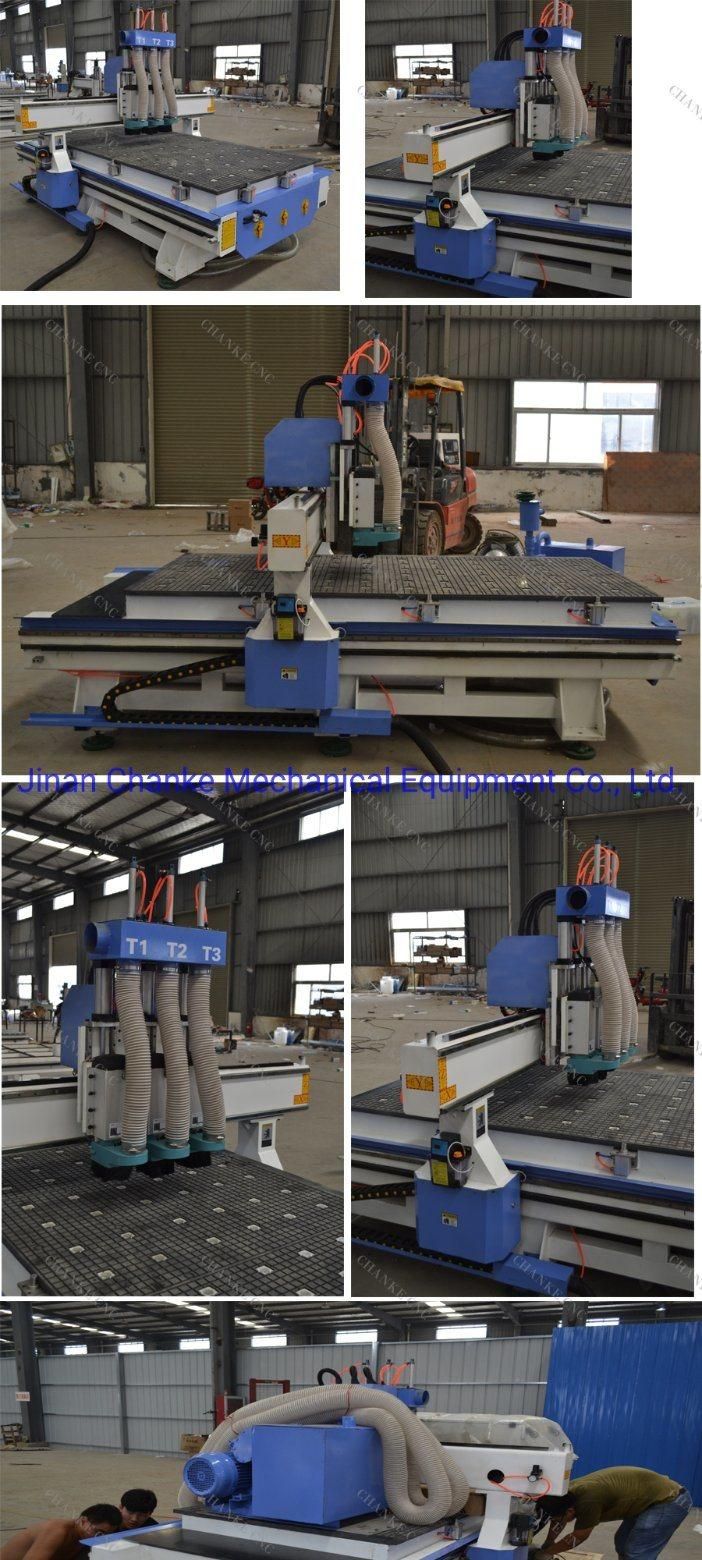

*Pneumatic ATC for 3 spindles with different tools.Automatic tool changing saves time to manually change tools.
*Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life.
*Control system:We use the advanced Dsp, Nc-studio control system, Syntec from Taiwan or OSAI from Europ.
Technical Date

Item	Model	CK1325
1	Working area	1300*2500*250mm
2	Feeding height	250mm
3	X/Y/Z axis reposition accurancy	+/- 0.02mm
4	Max running speed	50m/min
5	Max working speed	30m/min
6	X/Y axis transmission	Gear and rack
7	Z axis transmission	Ball screw
8	Guide rail	Taiwan HIWIN square guide rail
9	Working table	Vacuum and T-slot table
10	Spindle power	4.5kw air cooled spindle * 4pcs
11	Max spindle speed	18000 rpm/min
12	Collet	ER32
13	Control system	NK260 or Syntec control system
14	Motor	Leadshine servo motor / Yaskawa servo motor
15	Working voltage	380V/ 3P/ 50HZ -60HZ
16	G.W./ N.W.	1800KG / 1600KG
17	Command	G Gode
18	Computer interface	USB port
19	Limit switch	Japan Omron
