• Model NO.：ZD214*8,16(1)H
• Work Mode：Period
• Controlling Mode：Artificial
• Automatic Grade：Semiautomatic
• Certification：CE
• Transport Package：Plywood Case
• Specification：4*8 ft
• Trademark：Zhongding Machinery
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. ZD214*8/16(1)H Work Mode Period Controlling Mode Artificial Automatic Grade Semiautomatic Certification CE Transport Package Plywood Case Specification 4*8 ft Trademark Zhongding Machinery Origin Qingdao HS Code 84659400 Production Capacity 500 Sets/Year

Product Description

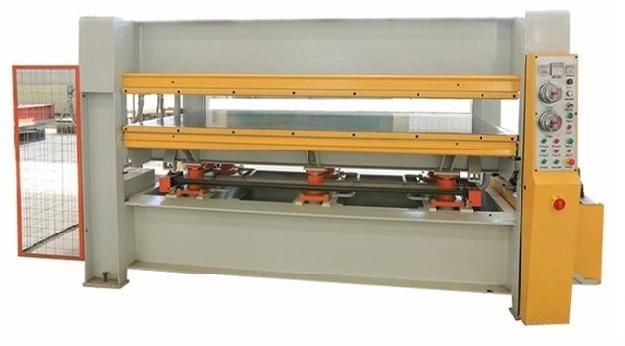

Lamination Hot Press Machine for Melamine Particle Board

Product details:


Specification:


Total pressure	100/120/160/200ton
Feeding direction	Transversal
Dimension of hot platen	2500x1300x42mm
Number of layers	optional
Number of platens	Optional
Stroke	80-120mm
Diameter & stroke of oil cylinder	100mm x 200mm
Number of cylinders	optional
Heating medium	thermal oil
Working pressure	optional
Total power	9.2Kw
Thermal oil furnace power	optional

Advantage:


1. All 3 pumps we use Vane Pumps. The others use Gear Pumps. Vane pumps with lower noise than gear pumps. So the working life is longer than gear pumps.
2. The surface roughness of our platen is 0.8μm. The better among the others is just 1.6μm. This will keep the heating averagely. This is very important.
3. Our machine base is type H steel. The others use welded steel plate. Type H steel is much stronger than the welded steel plate. Welded steel plate will be bent easily.

Details:




Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE

FAQ:

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer with 9 years experience.



Q: What kind of products do you have?

A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.



Q: Do you have CE or ISO certification?

A: Yes we have both.



Q: What's your warranty?

A: We offer one year warranty.



Q: Do you offer oversea after-sale service?

A: Yes if necessary.



Q: What's your advantage comparing with other suppliers?

A: With 9 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.

Package:


About us:


Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:

-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines

We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.
