Heavy Duty Double Sides Polishing Sander Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Type：Belt Wood Sander
- Automatic Grade：Automatic
- Variable Speed：Variable Speed
- Certification：CE, ISO, FDA
- Customized：Customized
- Condition：New
Base Info
- Model NO.：SR13D
- Color：Iron Grey
- Working Application：Plywood,Blockboard,Particleboard
- Working Voltage：380V,415V,440V and So on
- Weight：8000kg
- Working Width：100-1300mm
- Working Thickness：3-90mm
- Feed Speed：6-30m,Min
- Transport Package：Container
- Specification：2200*3360*2900mm
- Trademark：METRO
- Origin：China
- HS Code：8465930000
- Production Capacity：500sets,Year
Description

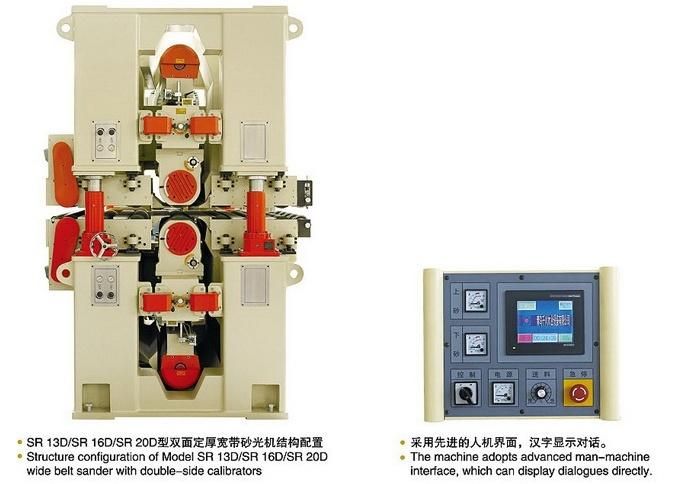

Double sides calibrating sander machineMachine model SR13D Working thickness 3-90mm Working length >700mm Working width 100-1300mm Abrasive belt speed 29m/s 25m/s Size of abrasive belt (WxP) 1350x2800mm Feed speed 6-30m/min Main motor 75Kw x 2 Overall dimension(LxWxH) 2200x3360x2900mm Motors Feed motor 11Kw Lifter motor 1.5Kw Compressed air Brush motor 0.75Kw x 2 Working air pressure 0.6Mpa Exhaust air consumption Exhaust air consumption 24000m3/h Pressure 1300pa Air speed 25-30m/s Machine weight 8000Kgs
3. More Pictures
4. Service:
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the video with Install and debug the equipment
3) Provide technical exchanging
