Woodworking Roller Type Veneer Dryer Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Certification：CE, ISO, FDA
- Woking Width：2800mm
- Working Decks：3decks
- Length of Heating Section：2000mm X 8 Sections
- Length of Cooling Section：2000mm X 1 Section
- Machine Oveall Dimension：23000X5200X4010mm
Base Info
- Model NO.：BG1333
- Machine Net Weight：68000kgs
- Heating Medium：Thermal Oil or Hot Steam
- Heat Source：Boiler
- Transport Package：Container
- Specification：2300x5200x4100mm
- Trademark：METRO
- Origin：China
- HS Code：8419320000
- Production Capacity：50set,Month
Description
Basic Info.
Model NO. BG1333 Machine Net Weight 68000kgs Heating Medium Thermal Oil or Hot Steam Heat Source Boiler Transport Package Container Specification 2300x5200x4100mm Trademark METRO Origin China HS Code 8419320000 Production Capacity 50set/MonthProduct Description
Wood veneer drying dryer machine for plywoodMain features:
This series of roller dryer is one of the main machines in plywood production line. It is very suitable for wet clipping processing and drying thick veneer.
Advantage:New technology and advanced PLC controlling system have been used for effective and quality drying veneers with lower energy consumption.

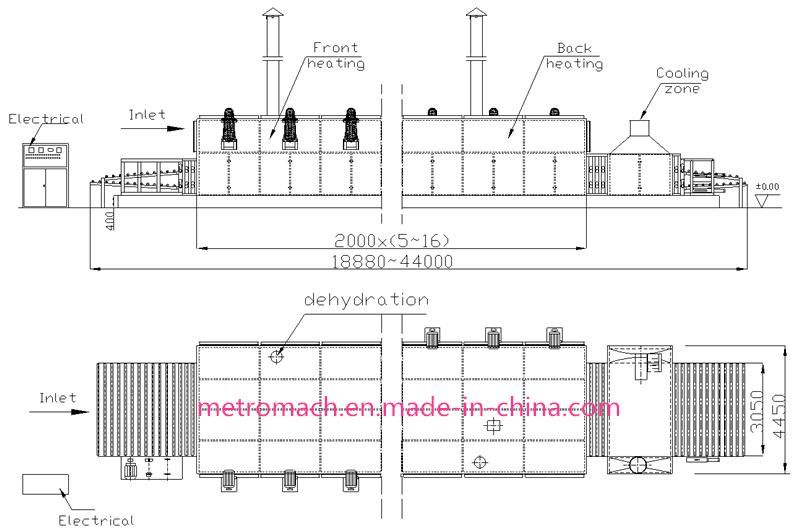

The BG1333 roller dryer machine is 13 sections as a standard, 2 meters as a standard for one heating section, one cooling section, one conveying system, one input roller table, and one output roller table. Customers can use the machine from 8 sections to 18 sections that it is up to your needs.
Technical specifications:
| Machine model | BG1333-I |
| Density | 550Kg/m3 |
| Veneer thickness range | 1.5-3.6mm |
| Initial moisture content | 80% |
| Final moisture content | 10% |
| Load ratio | 80% to 85% |
| Woking width | 2800mm |
| Working decks | 3decks |
| Length of heating section | 2000mm x 8 sections |
| Length of cooling section | 2000mm x 1 section |
| Transmission speed | 0-15m per min |
| Drying capacity | 3-4m3 per hour |
| Steam consumption | 2100kg per hour |
| Installation motor power | 117.5kw |
| Transmission motor power | 7.5Kw x 3sets |
| Ventilation motor power | 11Kw x 8sets |
| Cooling motor power | 7kw |
| Machine oveall dimension | 23000x5200x4010mm |
| Machine net weight | 68000Kgs |
Packing&Shipping:
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Services:
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
