• Model NO.：RBDX1400
• Knife Size：1500mm
• Color：Customized
• Customized：Yes
• Rollers Specification：150mm
• Waste Chipper：Option
• Transport Package：Standard Export Packing
• Specification：4400*2000*1500mm
• Trademark：METRO MACH
• Origin：Linyi City, China
• HS Code：846596000
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. RBDX1400 Knife Size 1500mm Color Customized Customized Yes Rollers Specification 150mm Waste Chipper Option Transport Package Standard Export Packing Specification 4400*2000*1500mm Trademark METRO MACH Origin Linyi City, China HS Code 846596000 Production Capacity 100 Sets/ Month

Product Description

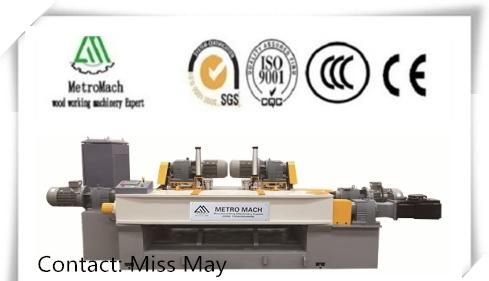

PRODUCT DESCRIPTIONHydraulic 4FT Wood Log Rounding Debarker Machine with Chipper
1. Fearures
Log rounding debarker is used for peeling off the log skin and make the raw log to be round,after debarking it will be easy for the peeling lathes to peel and the veneer thickness will be even without big variation,also can increase the peeling lathes working life.One set debarker can work with two sets of peeling lathes, it can save labor.
2. Technical Parameters

DESCRIPTION	UNIT	PARAMETERS
Length of peeler log	mm	970mm-1270mm-1400MM
Diameter of peeler log	mm	Maximum 550mm-Core 50mm
Rotary cutting thickness range	mm	1mm-4.0mm
Linear speed of host machine	m/min	60m
Main motor power Auxiliary motor power	KW	11KW+7.5KW Feeding 5.5KW Hydraulic pump 5.5Kw(Air cooling device)    Waste chipper 11KW(Optional)
Reducer type selection		#350 Heavy Model
Rollers specification	mm	Ø150mm x 1500mm(Harden chroming thicker)
Machine weight	Kgs	3500Kgs

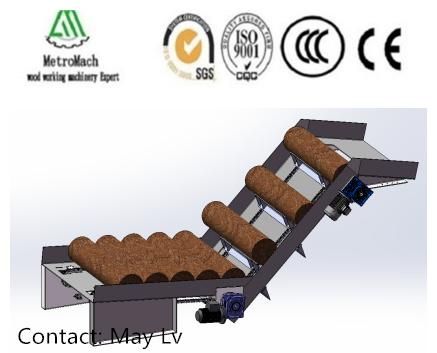

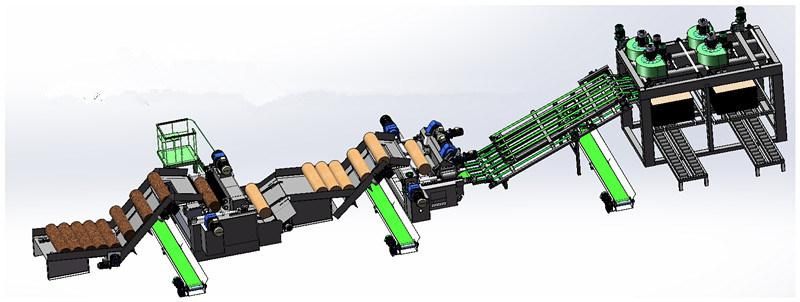

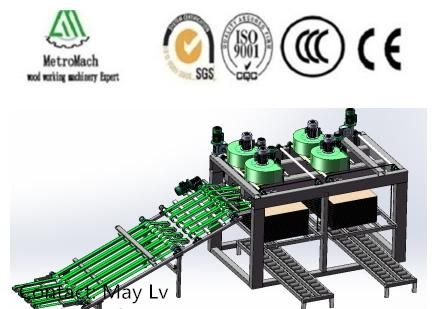

3. More Pictures







Welcome to Contact
