• Model NO.：RFY4II-20B
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. RFY4II-20B Production Capacity 100 Sets/Month

Product Description

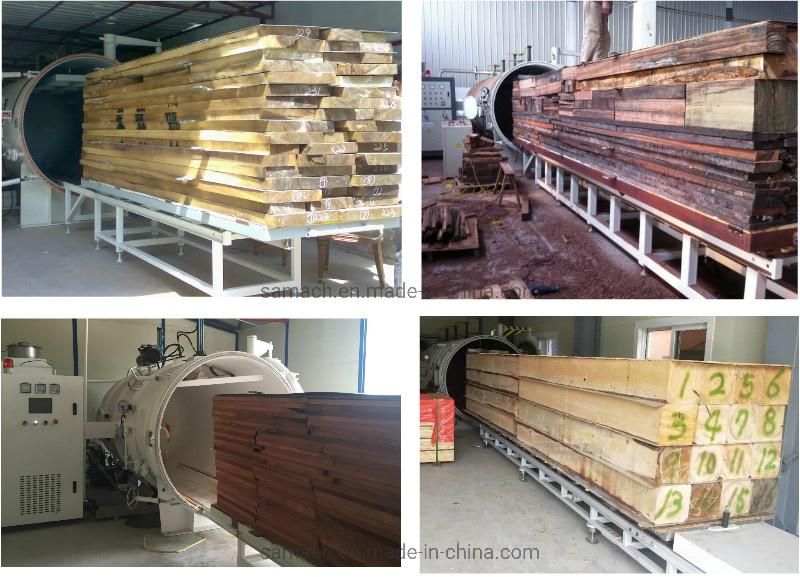

Solid Wood Fast Vacuum Drying Machine




Introduction

High-frequency vacuum drying is a continuous and continuous vacuum drying process, which is a fast and safe way to dry wood. For wood drying, drying equipment, wood drying equipment, vacuum drying, high frequency drying, wood vacuum drying, high frequency wood vacuum drying, high frequency vacuum drying working principle: after the electrode plate on the material pile is connected to the high frequency feeder The wood between the two poles acts as a medium in the working capacitor in the high-frequency oscillator circuit. Under the action of the high-frequency electric field, the water molecules in the wood are polarized and rapidly oscillate, and the molecules rub against each other to generate a large amount of heat. The wood is heated quickly. Since the pile is placed in a negative pressure environment, the moisture in the wood will likely to rely on the large differential pressure formed inside and outside the wood to quickly flow to the surface of the wood under low water content gradient conditions, and at low temperature conditions. Discharged quickly. The drained water is pumped out by a vacuum pump to allow the wood to dry quickly.




High-frequency vacuum drying machine features:

1. High efficiency: high-frequency heating, heat for both inside and outside at the same time, heat evenly, fast speed.
2. Stable quality: Combined with vacuum system, reduce the boiling point of water, and quickly dehydrate under the condition of vacuum and low temperature. To balance the moisture content of the wood and ensure the color and size of wood.
3.Relieve stress: Equipped with pressing system, which keeps the wood drying process under pressure, removes the wood stress,to avoid the deformation.
4. Sterilization: Insecticidal and sterilizing functions.
5.Environmental protection: No "wastes" are generated, which meets national environmental protection standards.
6. Versatility: Adjust the drying process according to the thickness, density and moisture content of the wood, suitable for all wood drying.

Parameter


Model	RFY4II-20B	RFY6II-20B	RFY10II-50B	RFY14II-60B
Capacity	4 m³	6m³	10m³	14m³
Working temperature	50-90°C	50-90°C	50-90°C	50-90°C
HF power	10-30KW	10-30KW	30-50KW	30-50KW
Stacking size	4000*1000*1000*4m³	6000×1000×1000 *6m³	6000*1300*1300*10m³	8000*1300*1300*14m³
Frequency	6.78MHZ	6.78MHZ	6.78MHZ	6.78MHZ
Vacuum pressure	Limit -0.092Mpa	Limit -0.092Mpa	Limit-0.092Mpa	Limit -0.092Mpa
