• Model NO.：1325
• Customized：Customized
• Color：Customized
• Feed Mode：Mechanical
• Control System：Syntec 6MB Control System
• Inverter：5.5kw E Type Taiwan Delta Inverter
• Linear Rail：Taiwan PMI 25# Linear Guide
• Rotary Device：Diameters: 200mm
• Dimension(L*W*H)：3050*1940*2200mm
• Transport Package：Plywood Box
• Specification：3050*1940*2200mm
• Trademark：sea eagle
• Origin：China
• HS Code：84659900
• Production Capacity：2000sets,Year

Working area

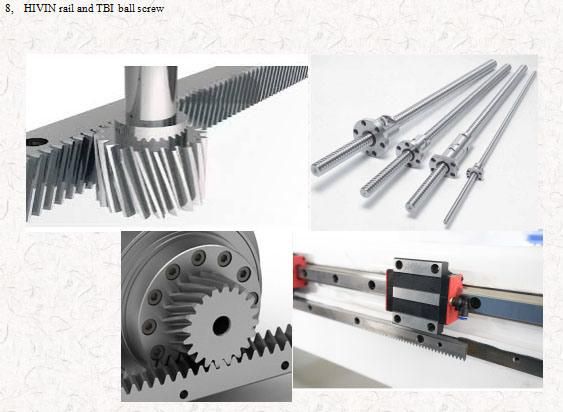

Working areaX1,300mmY2,500mmZ210 mmTransmission systemXHiwin square rail,-No.25, Helical - Rack & PinionYHiwin square rail,-No.25, Helical - Rack & PinionZball screw ,Hiwin square rail.SpindlePower6 kw HQD Spindle , 4 sets;  or 4.5kw ,2 sets, 6kw 2 setsInverterYaskawa or FullingRotating Speed24000rpmCooling Typewater- cooling or air-coolingDrive systemsX,Y,ZYaskawa or leadshinePrecision<0.01mmPositioning accuracy<0.01mmidling speed0~24000mm/minMax speed90m/minWorking speed40m/min

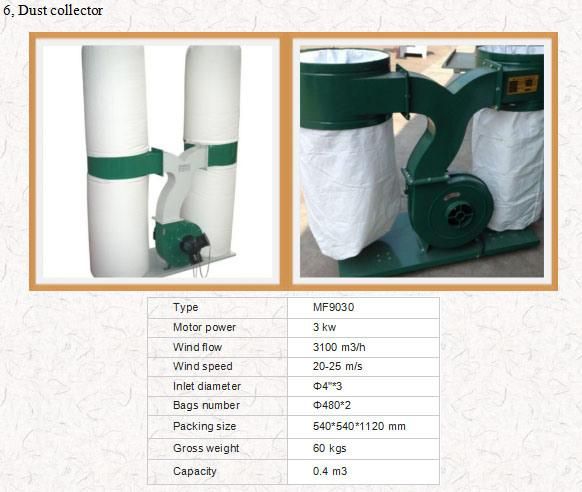

Machine bodySteel structure Table,Seamless welded steel structure / Lathe bed welded with thick square tube and slot steel,tablevacuum adsorption table.Control SystemLNC control system, or SYNTEC system, mach3Working VoltageAC380V±30V, 50HZCommand CodeG Code, *.mmg, *.plt, *.engTool sensor systemAvailablePackingPlywood  caseNet Weight3600KGPacking Size4000*1970*1930(mm)Gross Weight3000KGdust collector4.0 kw  380VReducer systemTiming Pulley

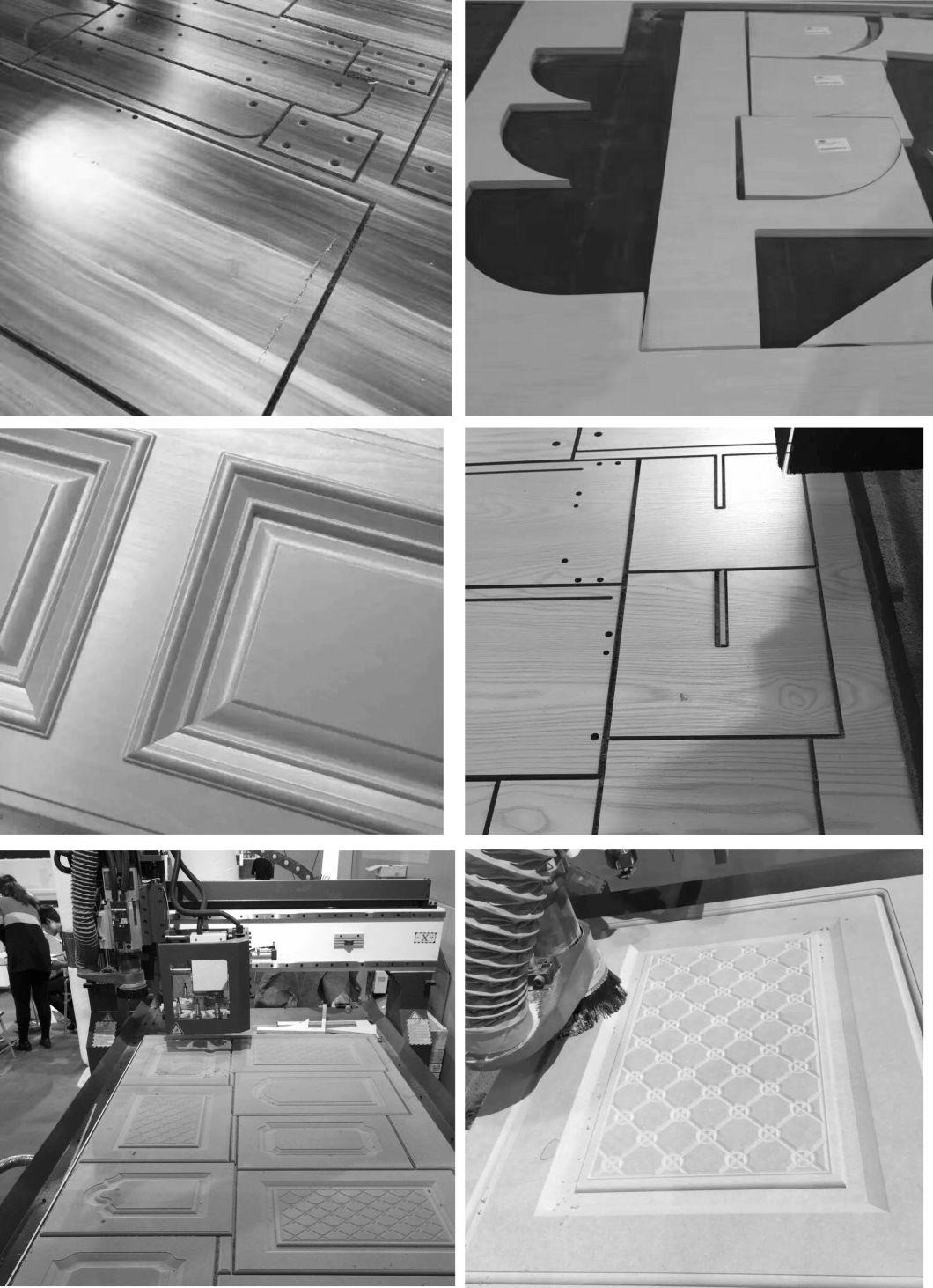

samples

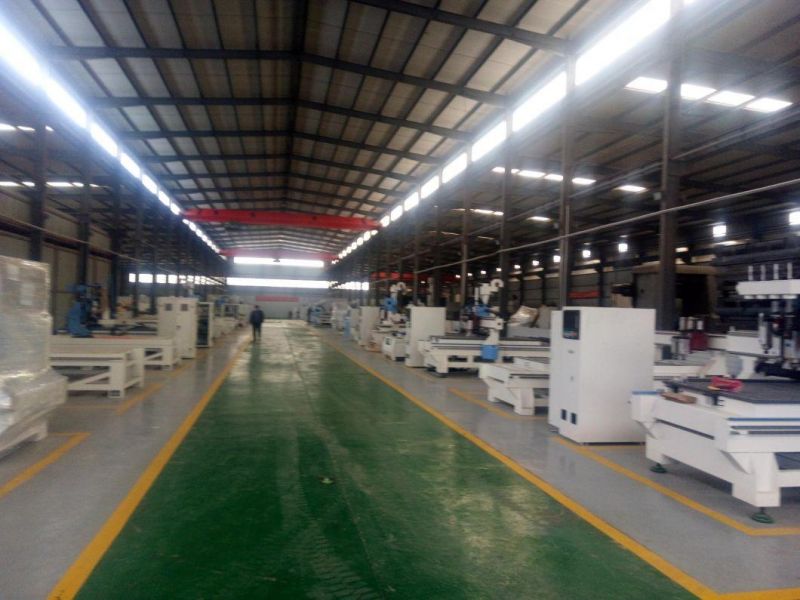

our workshop
