• Model NO.：MJ6115
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Green
• Transport Package：Plywood Case
• Specification：1550*3150*900mm
• Trademark：ZD
• Origin：China
• HS Code：84659100
• Production Capacity：500 Set,Month

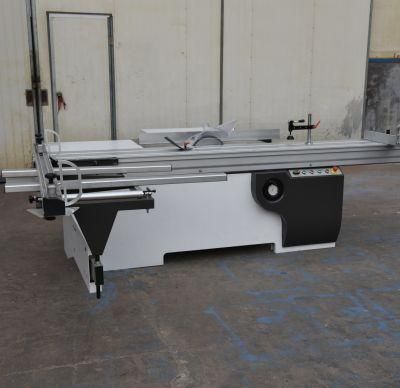

ModelMJ6115/ZD150Dimension of sliding table1500*375mmGross cut capacity1500mmTilting saw group0-45°Diameter of main saw blade300mmMax. cutting height (90°)80mmSpeed of main saw spindle4000/6000r.p.mMain saw motor power5.5kwMain spindle diameter30mmDiameter of scoring saw blade120mmSpeed of scoring saw spindle8000 r.p.mScoring saw motor power1.1kwScoring saw spindle diameter20mmWeight650kgOverall dimension1550*3150*900mm



Components:

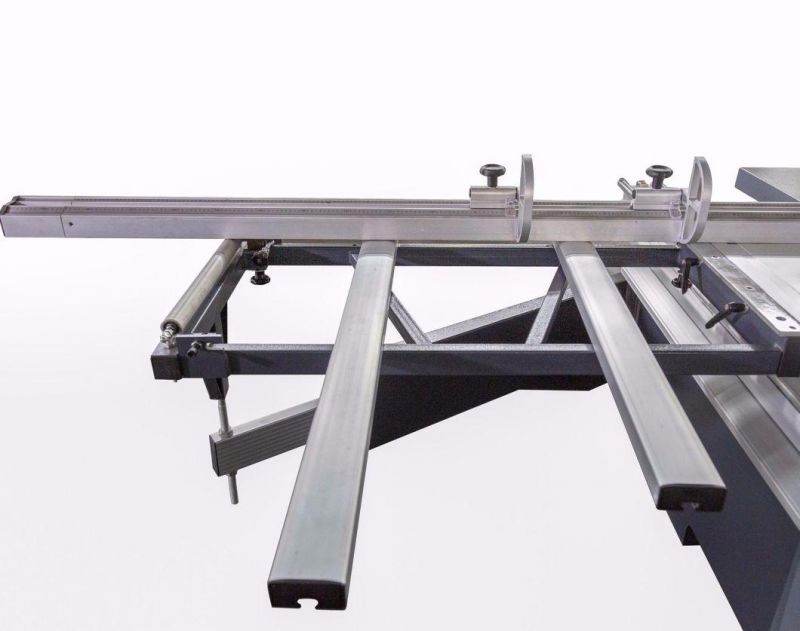

roller guide -- Euro-Seating (at your option)

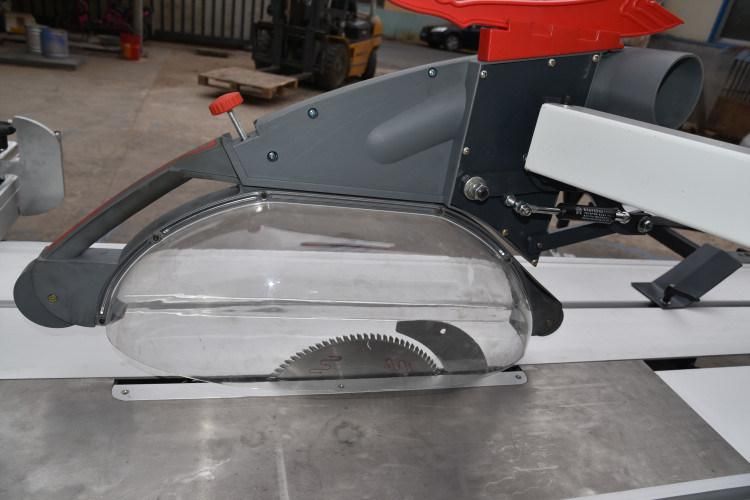

Dust hood with high arresting efficiency, remove dust and protect the environment. Equipped with small one, but big one is Optional.

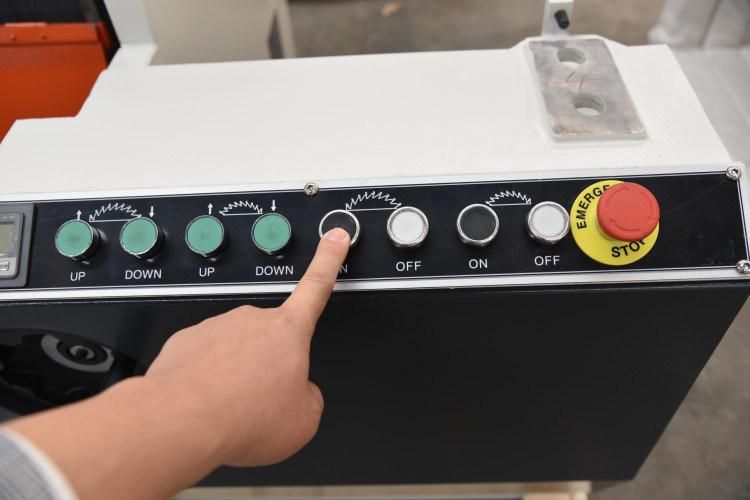

Buttons -- controlling the whole machine



Main table--made of cast iron, firm, abrasion proof and uneasy deformation



Auxiliary table --made of cast iron

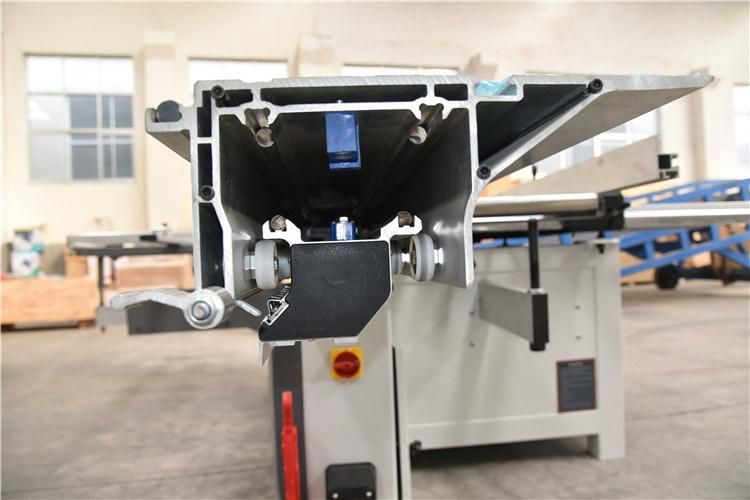

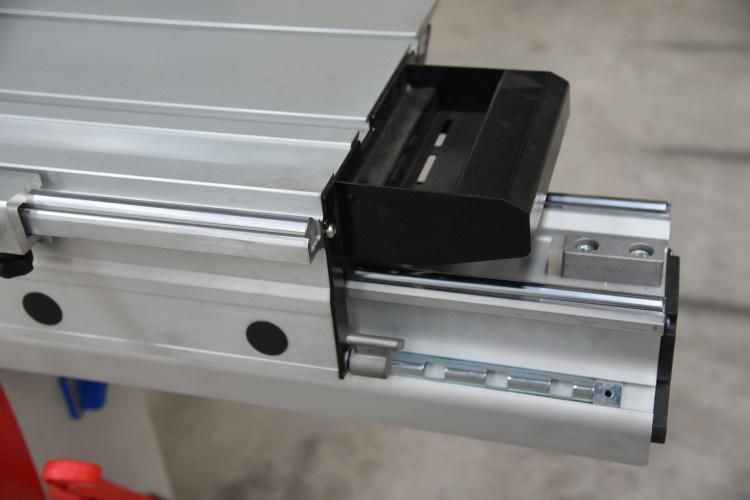

Sliding table-made of high-strength extruded aluminum alloy , light and uneasy distortion. Double layer sliding table.

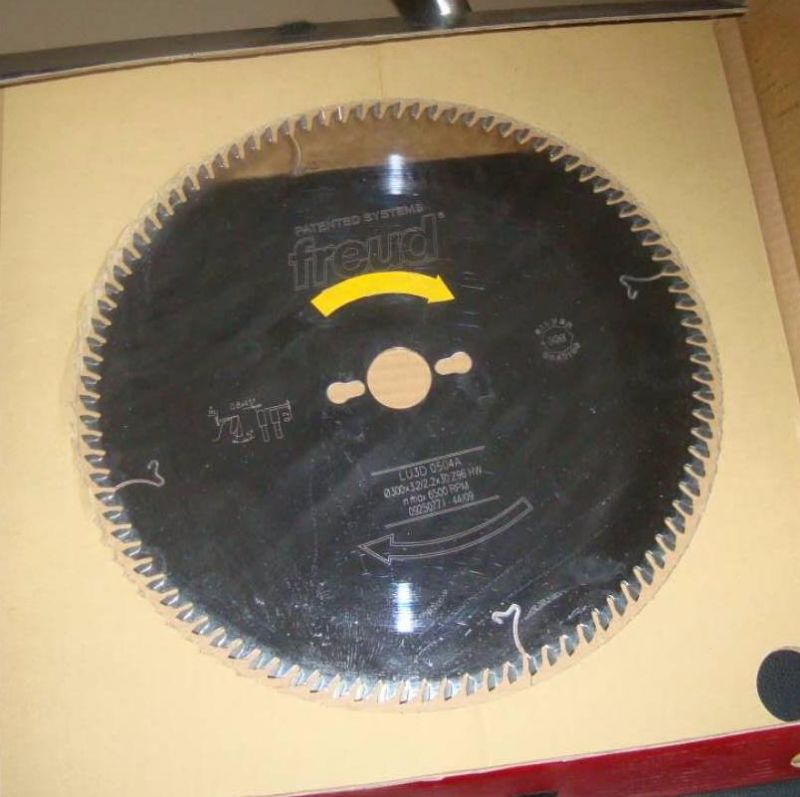

Main saw blade--made of duralumin







Main ruler--made of aluminum,ensure the cutting precision, strength saving

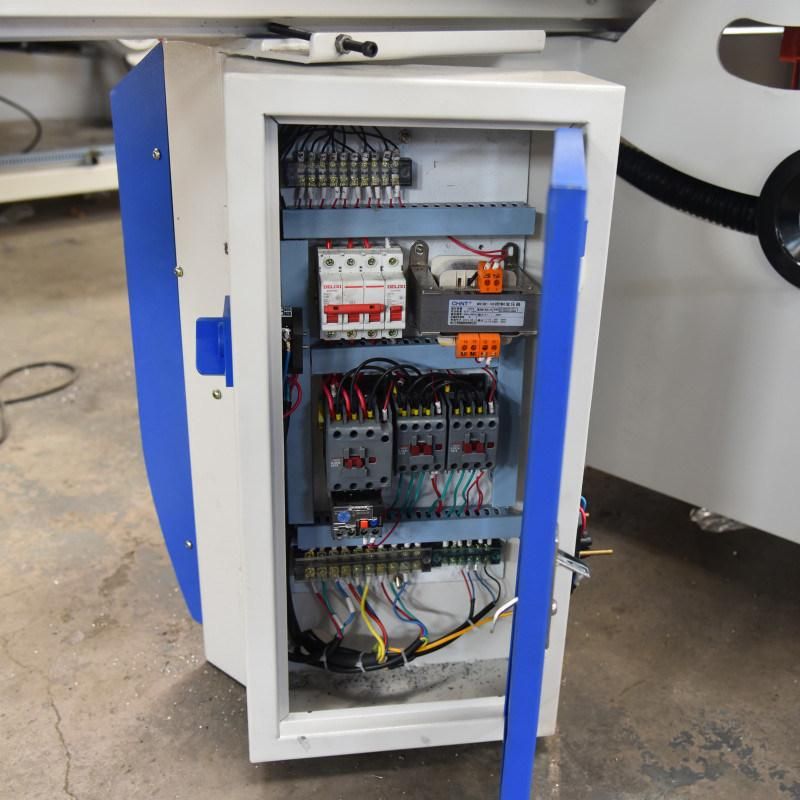

Indepent electric box:






Packaging:

About our company



For more details, pls feel free to contact us.
