1500mm Length Woodworking Small Sliding Table Panel Saw

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Table Panel Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：Artificial
  • Automatic Grade：Manual
  • Precision：High Precision

Base Info

  • Model NO.：MJ6115
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Green
  • Transport Package：Plywood Case
  • Specification：1550*3150*900mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659100
  • Production Capacity：500 Set,Month

Description

ModelMJ6115/ZD150Dimension of sliding table1500*375mmGross cut capacity1500mmTilting saw group0-45°Diameter of main saw blade300mmMax. cutting height (90°)80mmSpeed of main saw spindle4000/6000r.p.mMain saw motor power5.5kwMain spindle diameter30mmDiameter of scoring saw blade120mmSpeed of scoring saw spindle8000 r.p.mScoring saw motor power1.1kwScoring saw spindle diameter20mmWeight650kgOverall dimension1550*3150*900mm



Components:

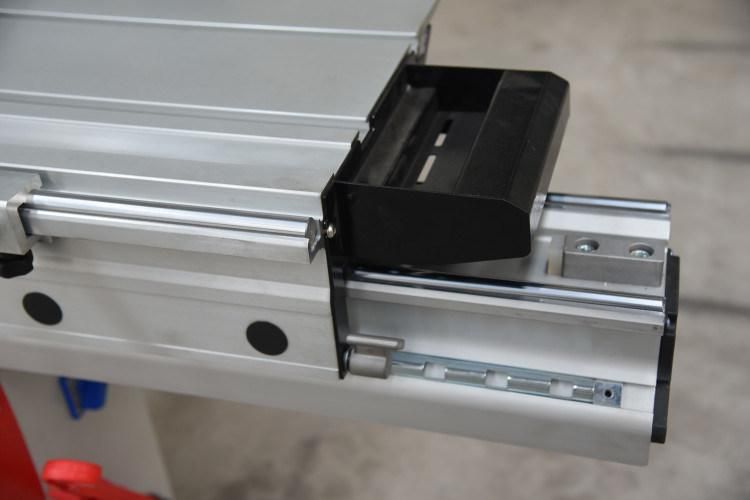

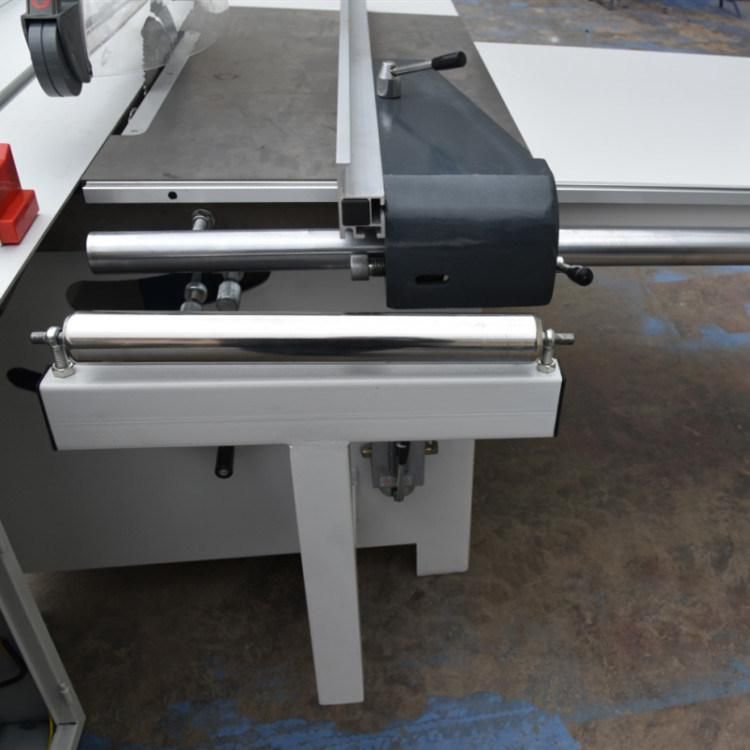

roller guide -- Euro-Seating (at your option)

1500mm Length Woodworking Small Sliding Table Panel Saw

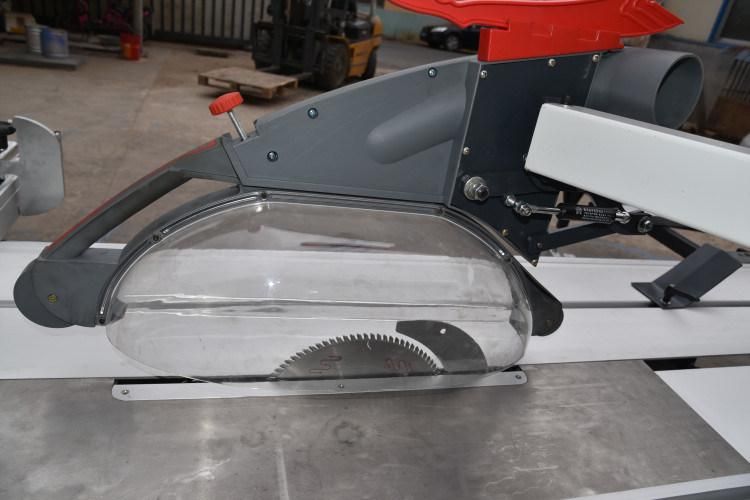

Dust hood with high arresting efficiency, remove dust and protect the environment. Equipped with small one, but big one is Optional.

1500mm Length Woodworking Small Sliding Table Panel Saw

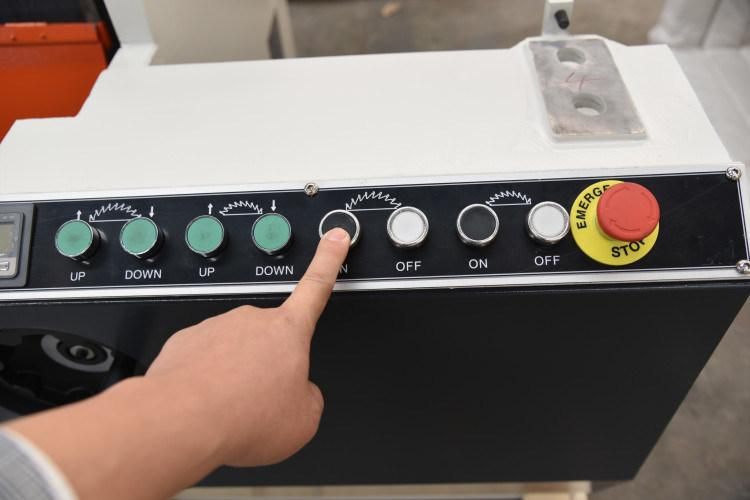

Buttons -- controlling the whole machine
1500mm Length Woodworking Small Sliding Table Panel Saw


Main table--made of cast iron, firm, abrasion proof and uneasy deformation
1500mm Length Woodworking Small Sliding Table Panel Saw

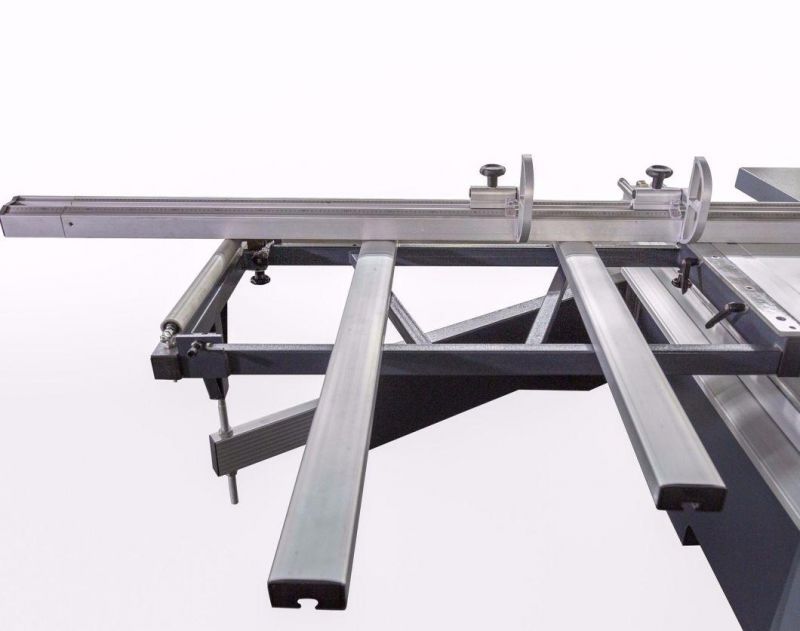

Auxiliary table --made of cast iron

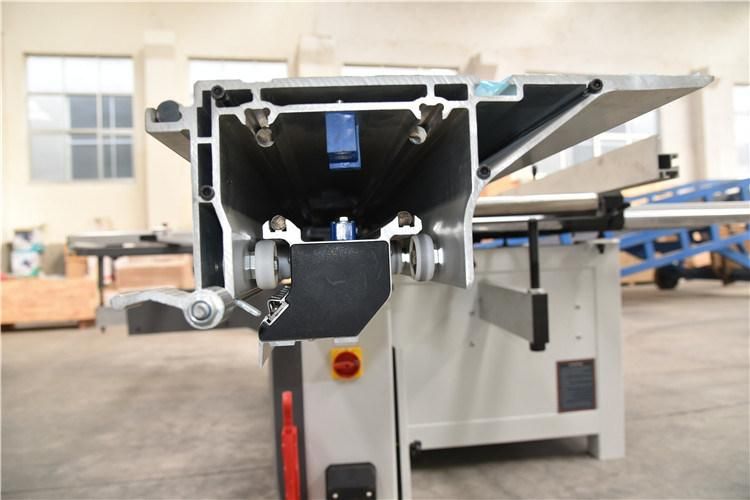

Sliding table-made of high-strength extruded aluminum alloy , light and uneasy distortion. Double layer sliding table.

1500mm Length Woodworking Small Sliding Table Panel Saw

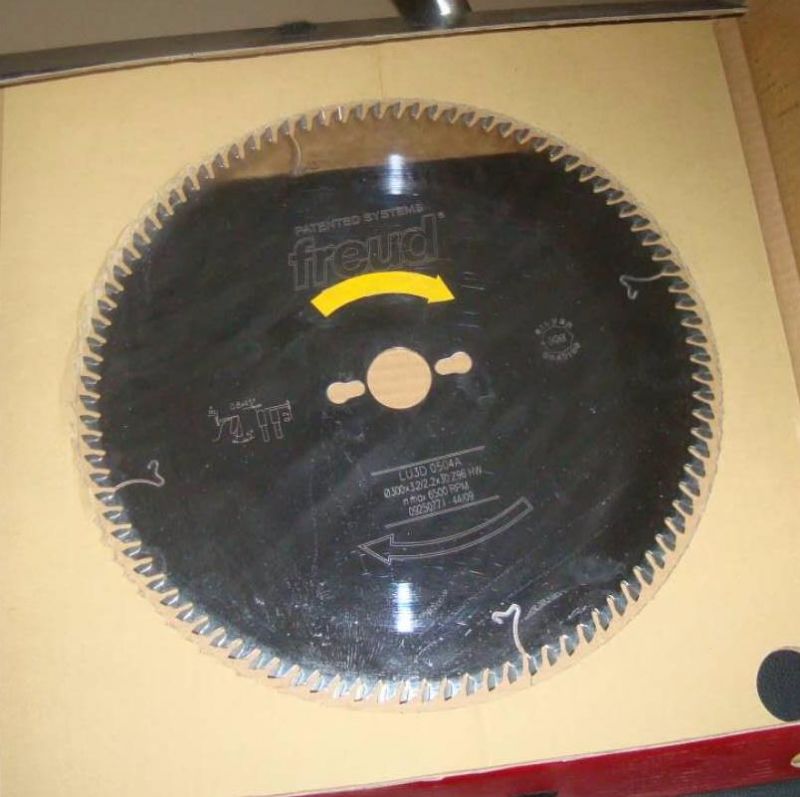

Main saw blade--made of duralumin



1500mm Length Woodworking Small Sliding Table Panel Saw




Main ruler--made of aluminum,ensure the cutting precision, strength saving

1500mm Length Woodworking Small Sliding Table Panel Saw

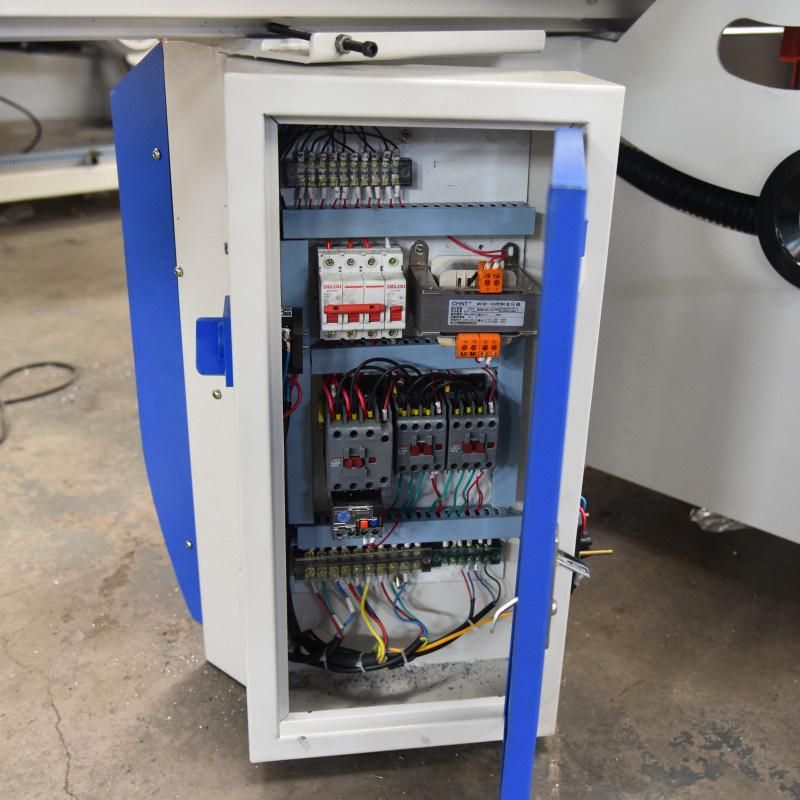

Indepent electric box:


1500mm Length Woodworking Small Sliding Table Panel Saw




Packaging:

1500mm Length Woodworking Small Sliding Table Panel Saw
About our company
1500mm Length Woodworking Small Sliding Table Panel Saw
1500mm Length Woodworking Small Sliding Table Panel Saw



For more details, pls feel free to contact us.
