• Model NO.：JC1325XP
• Customized：Customized
• Condition：New
• Color：Customized
• Spindle：4.5kw Air Cooling Spindle
• Power：Stepper Motor
• System：DSP Control System
• Table Surface：Vacuum Table
• X Y Structure：Rack and Pinion, Linear Square Rail
• Z Structure：Ball Screw, Linear Square Rail
• Transport Package：Wooden Case
• Specification：1300*2500*200mm
• Trademark：CHAODA
• Origin：Linyi, China
• HS Code：84649900
• Production Capacity：5000 Pieces,Year

1	X, y, z working area	1300*2500*200mm
2	Lathe bed structure	Steel frame
3	Table surface	Vacuum table
4	X structure	Rack and pinion, linear square rail
5	Y structure	Rack and pinion, linear square rail, y-double motor drive
6	Z structure	Ball screw, linear square rail
7	Resolution	±0.025mm
8	Reposition accuracy	±0.05mm
9	Max.Operating speed	0-30000mm/min
10	Max.Working speed	0-25000mm/min
11	Spindle motor	4.5kw air cooling spindle
12	Spindle speed	0-18000 rpm
13	Working mode	Stepper motor and driver
14	Operating system	Dsp control system
15	Command code	G code(*uoo, *nc, *mmg, *plt)
16	Compatible software	Type3 or artcam
17	Working voltage	3 phase ac380v 50hz/60hz
18	Running circumstance	Temperature:0ºc~45ºc
		Relative humidity:30%~75%
19	Weight	1200kg

Spare part1 software cd, 1 education cd, 1 data cable, 1 power cable, 12 tools, 2 wrench, 1 dust collectorPackingIron frame and standard wooden caseDelivery time10-15 daysPayment term50%t/t advance, 50% balance before shipmentWarrantyMain parts free charge for one year, offer 24 hours online and phone service

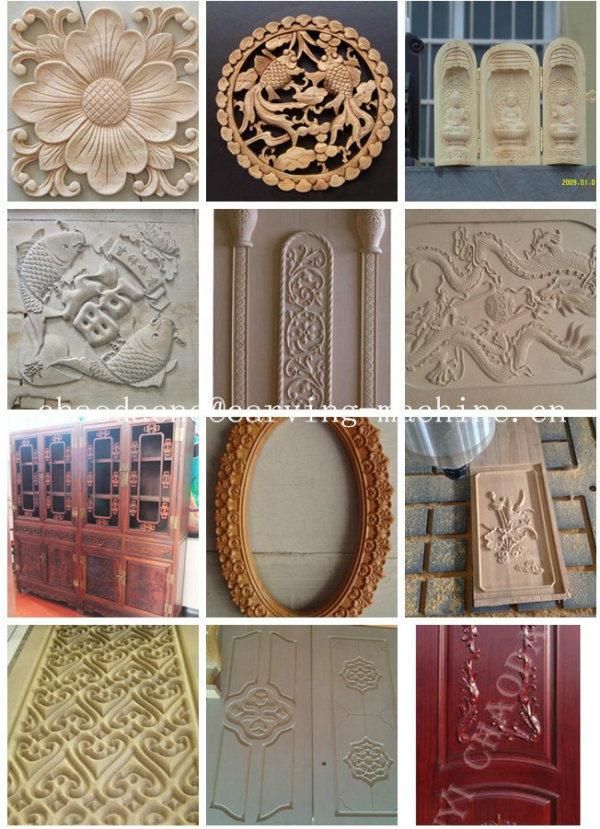

Samples picture
It is suitable for processing of solid woods, hardwood, mdf, composite boards, pvc, rigid
Plastics, acrylic sheets, glass, organic glass, aluminum plates and other material.

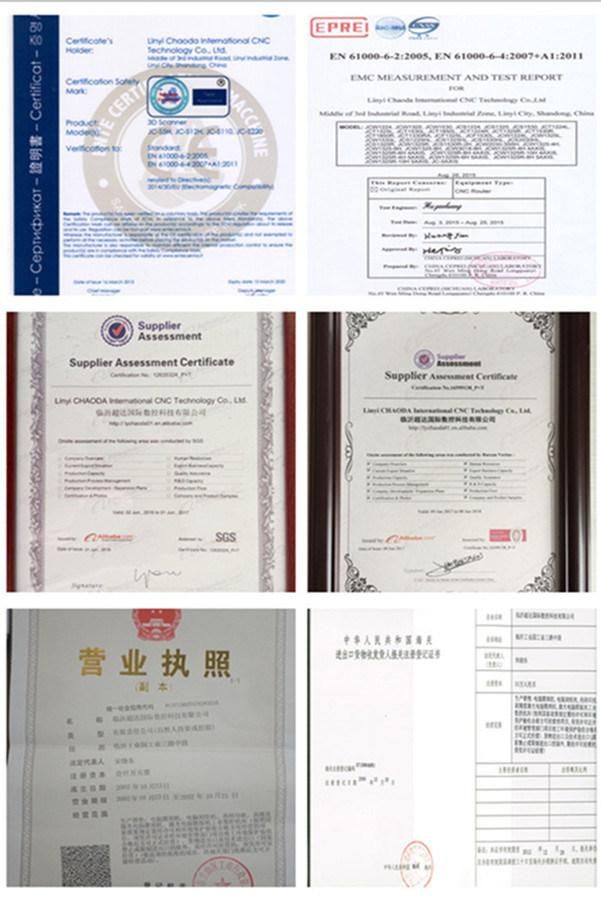

Product certification


Customer visiting & training

Packaging & shipment

Technical support of 3 axis cnc solid wood carving machine router:
1.Free machine training course in our factory.
2.Free manual operation, operating instructions, video, software cd.
3.Engineer available to service machinery overseas if necessary.
4.Offer 24 hours technical support and after-sale services online.
