• Model NO.：RMJ-4TS
• Customized：Customized
• Condition：New
• Color：Customized
• Transport Package：Soft Package
• Specification：6600*3600*2200mm
• Trademark：SAMACH
• Origin：China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. RMJ-4TS Customized Customized Condition New Color Customized Transport Package Soft Package Specification 6600*3600*2200mm Trademark SAMACH Origin China Production Capacity 300 Sets/Month

Product Description

Woodworking Machine Double-sided Processing Four Shafts CNC Double Sides Milling Machinery

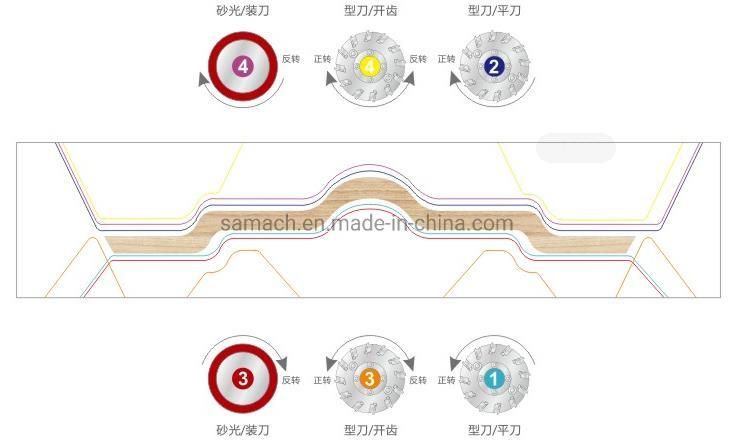

Machine Processing Diagram





Machine Performance Characteristics

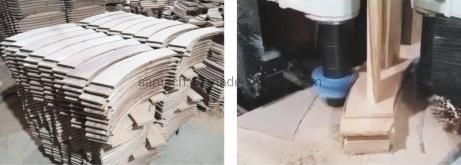

1. Numerical control equipment for bilateral precision milling, forming, tenoning and sanding of special-shaped products.

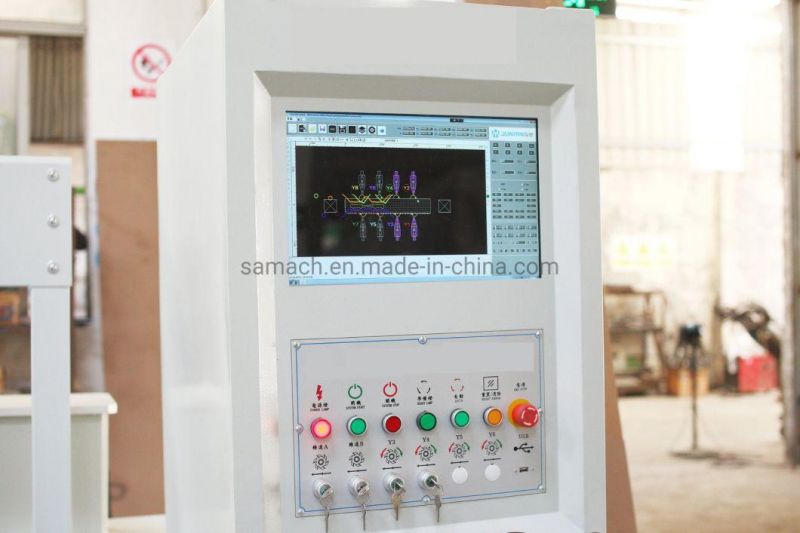

2. Germany original beckhoff (Beifu) CNC system, with independent research and development of operating software, easy to learn and understand, simple and fast operation, powerful control, high precision, responsive, can be connected to the external network, remote control equipment, equipment Perform remote maintenance.


3. One-piece body design with imported transmission accessories, making the processing stable and durable, to achieve high-speed precision machining.

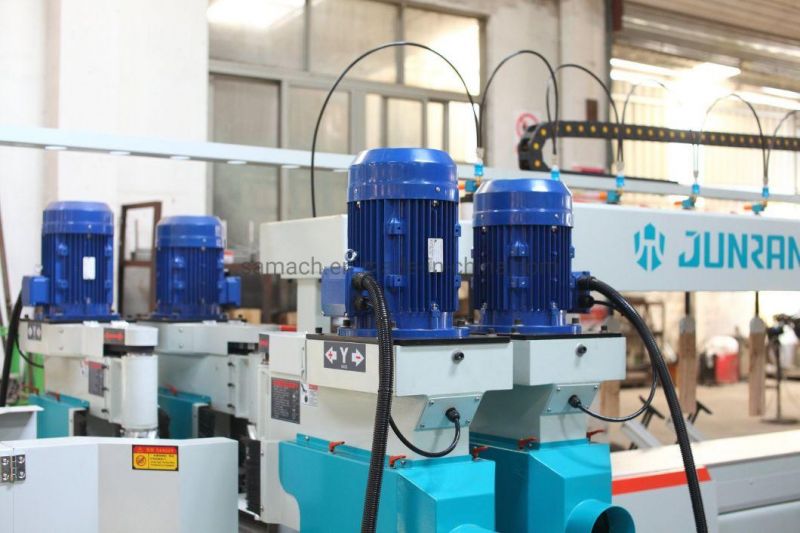

4. Europe imported cutting power assembly, the main shaft is made of German mold steel grinding, with Swedish SKF high-speed bearings.

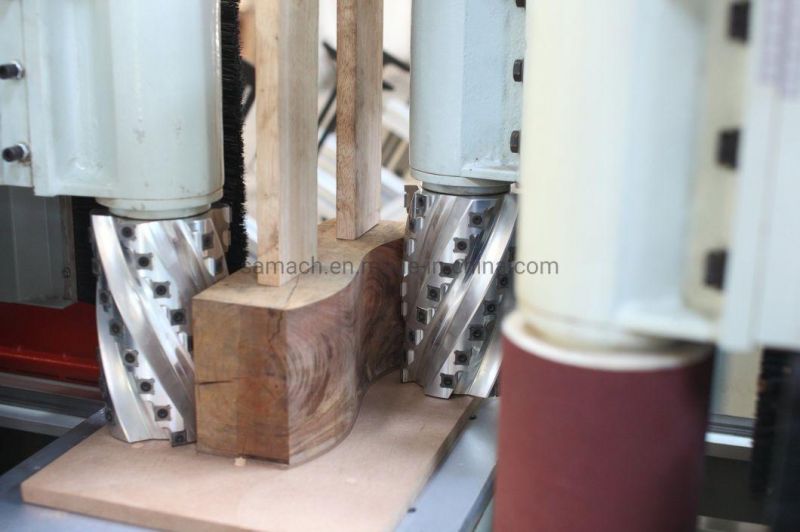

5. Shaft steering mode: specially designed for anti-loose function (the cutter shaft can be rotated forward and backward), the shaft can be selected according to the direction of the wood grain, the plane profile processing, forming, sanding, overcoming the reverse grain, chamfering angle, and improving the processing effect.

6.  The processing efficiency is 3-5 times higher than the traditional processing efficiency, and the production cost is lower and the efficiency is higher.

Machine Configuration

1. Independent research and development operating software.

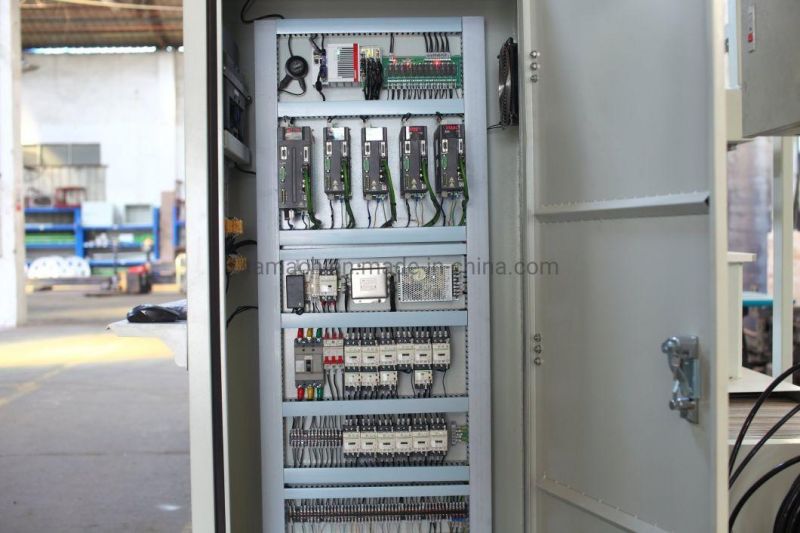

2. Germany beckhoff system, Taiwan delta drive system.



3. France schneider electric components.

4. One-piece high-speed mechanism design



5. Heavy cutting mechanism.

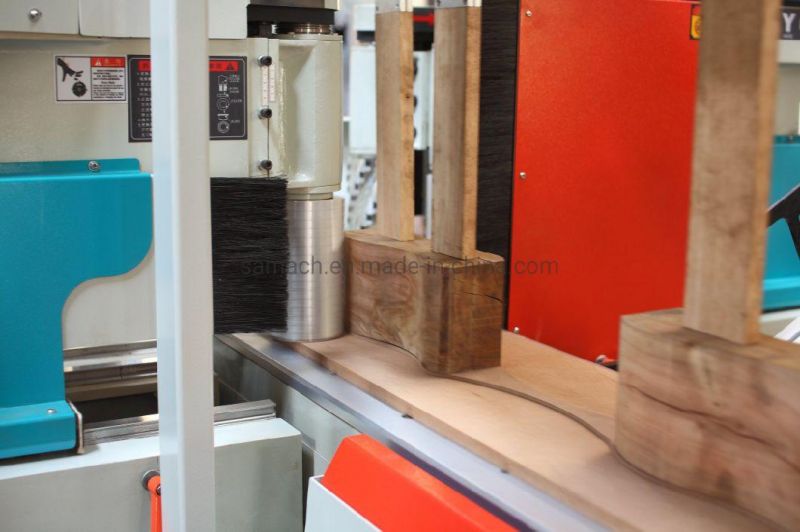

6. Sanding mechanism.



7. European imported two-speed moto.



8. Multi-directional pressure cylinder with fast valve.



9. Dust removal system adopts automatic spiral dust collection.

Technology Parameter


Model	RMJ-8TS	RMJ-6TS	RMJ-4TS	RMJ-2TS
Processing length	2500mm	2500mm	1500/2000/2500mm	1500/2000/2500mm
Processing width	15-400/15-600mm	15-400/15-600mm	15-400/15-600mm	15-400/15-600mm
Processing height	200mm	200mm	200mm	200mm
Processing speed	1-20m/min	1-20m/min	1-20m/min	1-20m/min
Return speed	100m/min	100m/min	100m/min	100m/min
Tool shaft power	7.5kw*4 /8kw(2p/4p)*4	7.5kw*4 /8kw(2p/4p)*4	7.5kw*4 /8kw(2p/4p)M	7.5kw*4/8kw(2p/4p)*4
Knife shaft speed	9000r/min-3000r/min	9000r/min-3000r/mirt	9000r/min-3000r/min	9000r/min-3000r/min
Spindle diameter	Φ40	Φ40	Φ40	Φ40
X-axis transmission power	2kw/3kw	2kw/3kw	2kw/3kw	2kw/3kw
Y_axis transmission power	1kw*8	1kw*6	1kw*4	1kw*2
Total power	72kw	55kw	38kw	20kw
Dimensions	9400*3600*2200mm	9000*3600*2200mm	6600*3600*2200mm 7600*3600*2200mm 8600*3600*2200mm	5500*3600*2200mm 6500*3600*2200mm 7500*3600'2200mm
Weight	9.5t	7.8t	5.5t	3.6t

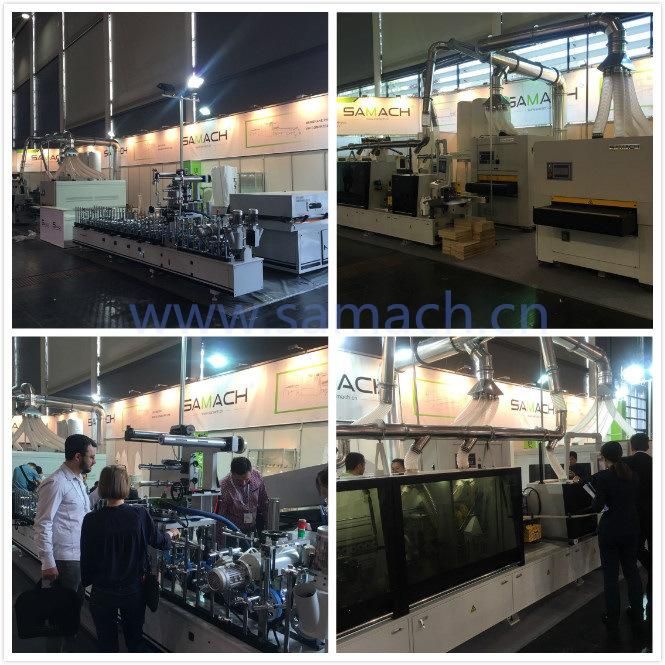

Exhibition

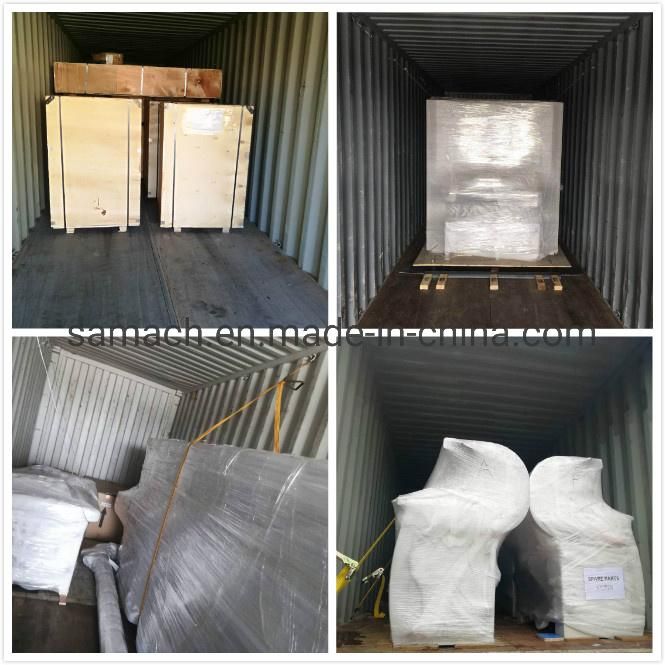

Packing and transportation

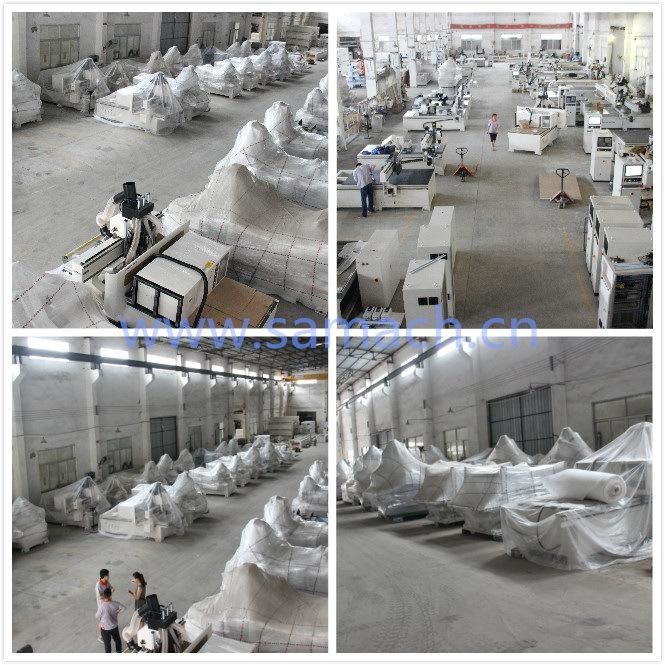

Factory



Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after services.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
