Qingdao Zhongding Woodworking Table Saw Machine Zd400t
Qingdao Zhongding Machinery Co., Ltd.- Type：Table Panel Saw
- Power Type：Electric
- Layout：Horizontal
- Controlling Mode：Artificial
- Automatic Grade：Manual
- Precision：Precision
Base Info
- Model NO.：ZD400T
- Certification：CE, ISO
- Customized：Customized
- Condition：New
- Color：Customized
- Transport Package：Wooden Box
- Specification：3CBM
- Trademark：QDZD
- Origin：China
- Production Capacity：100sets,Year
Description
Basic Info.
Model NO. ZD400T Certification CE, ISO Customized Customized Condition New Color Customized Transport Package Wooden Box Specification 3CBM Trademark QDZD Origin China Production Capacity 100sets/YearProduct Description
Qingdao zhongding woodworking table saw machine ZD400T TECHNICAL SPECIFICATION| Type | ZD400T |
| Dimension of sliding table | 3200x415 mm |
| Gross cut capacity | 3200 mm |
| Width of cut between saw blade and rip fence | 1250 mm |
| Tilting saw group | 0-45° |
| Diameter of main saw blade | 300 mm |
| Max cutting height (90°) | 80 mm |
| Speed of main saw spindle | 4000/6000 r.p.m |
| Main saw motor power | 5.5 kw |
| Main spindle diameter | 30 mm |
| Diameter of scoring saw blade | 120 mm |
| Speed of scoring saw spindle | 8000 r.p.m |
| Scoring saw motor power | 1.1 kw |
| Scoring saw spindle diameter | 20 mm |
| Weight | 1100 KGS |
| Overall dimension | 3250x3150x900 mm |

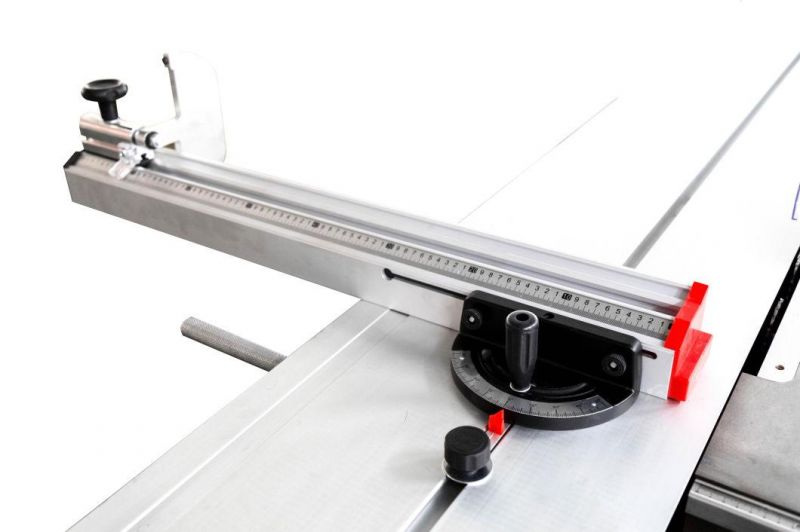

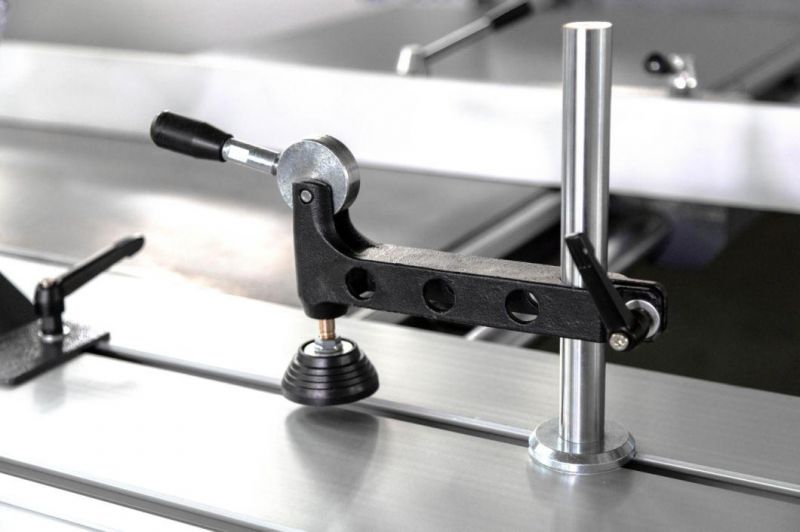

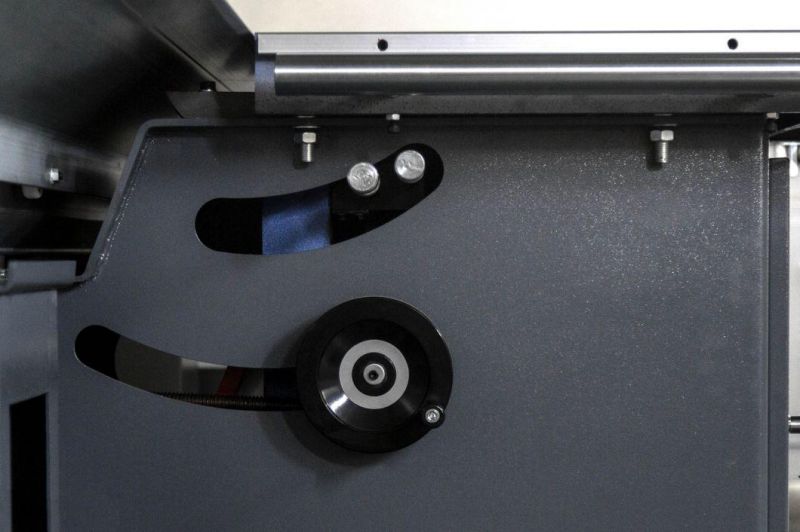

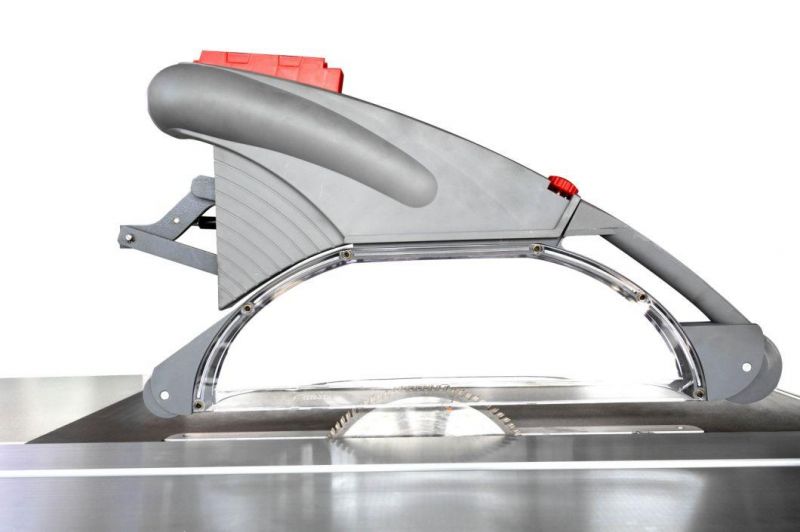

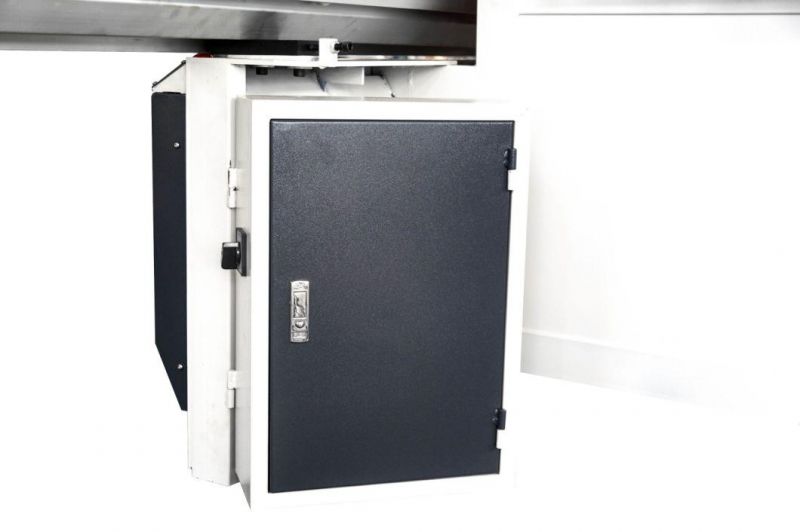

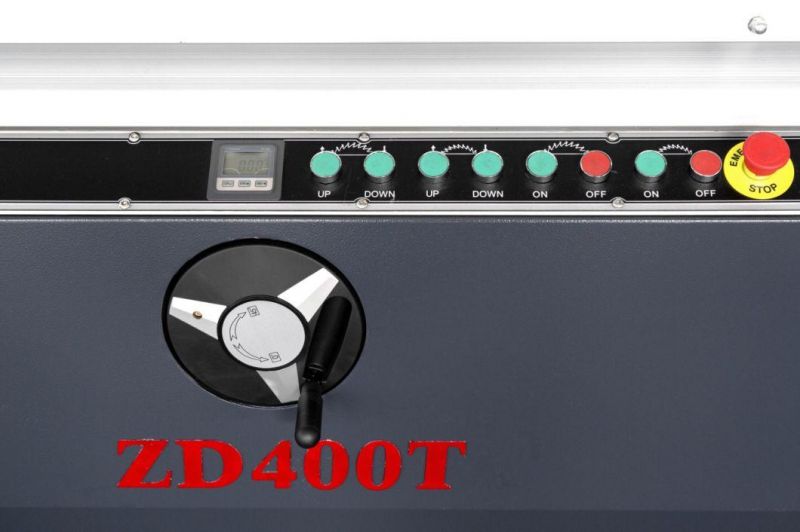

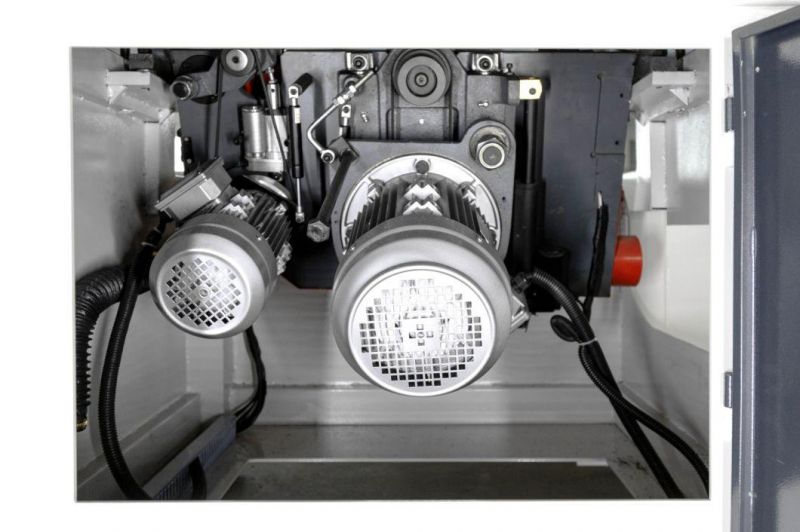

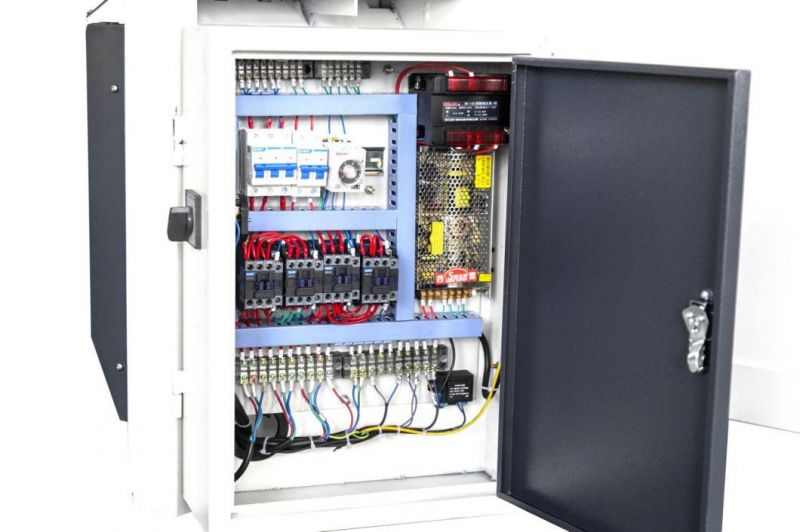

DETAILS
PACKAGE

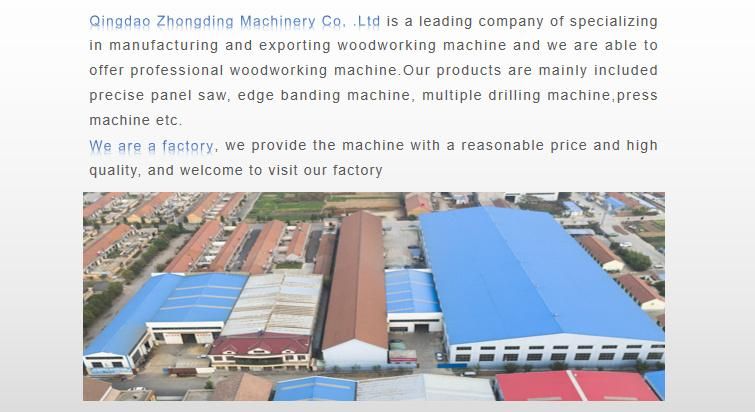

INTRODUCTION OF FACTORY
