• Model NO.：LT-1325
• Working Table：Vacuum Tabe with 5.5kw Vacuum Pump
• Control System：95A-3L Control System
• Guide Rail：Hiwin Linear Square Guide Rail
• Transmission：X, Y by Gear Rack, Z by Ball Screw
• Spindle Rotating Speed：6000-24000rpm
• Inverter：Fuling Inverter
• Software：Artcam
• Motor：Leadshine Hybrid Servo Motor
• Driver：Leadshine Hybrid Servo Driver
• Reducer：Shimpo Reducer
• Transport Package：3300*1950*1950mm
• Specification：12.548
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：500sets,Year

Pneumatic wood cnc router three spindles LT-1325Working area1300*2500*200mmTable styleAluminum T-slot table with pvc;Machine structureWelded steel tube,cast iron vertical shafts and steel gantrySpindle3*3.5kw air cooling spindleSpindle rotating speed0-18000rpmCollect sizeER20Guide railHiwin square guide railDriving methodX,Y axis by helical gear rack,Z axis by pneumaticMotors and driversStepper motor450B,Leadshine drivers MA860HControl systemWeihong 95A-3LInvert Fuling invertMax.idling speed25m/minMax.working speed12m/minWorking accuracy<0.05/300mmInstruction formateG cose*u00*mmg*pltWorking voltageAC220V,1 phase,50-60HzCompatible softwareType3/CastmateControl cabinetIndependentOtherTool sensor,oiling system,water pump,tool box etc.

Application

Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on

Advertisement: engraving and cutting various labels and number plate.

Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.

Applicable materials

wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.

Normal wood cnc router LT-1325Basic configuration

1)Working area:1300*2500mm aluminum T-slot table with pvc;

2)Bed structure: welded steel tube, cast iron vertical shafts and steel gantry;

3)Guide rail:square linear guide rail;

4)Driving method: X,Y axis by helical gear rack, Z axis by TBI ball screw

5)Spindle:3.0 KW water cooling spindle;

6)Motors and drivers:86BYG-450B stepper motors and MA860H Leadshine Driver;

7)Control system:Ncstudio control system;

8)Software: Artcam;

9)Tool box;Tool sensor;

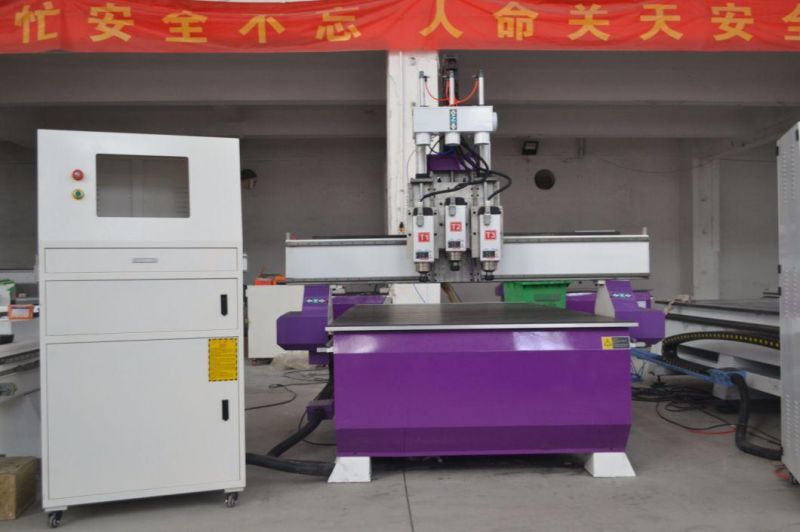

Machine picture Samples

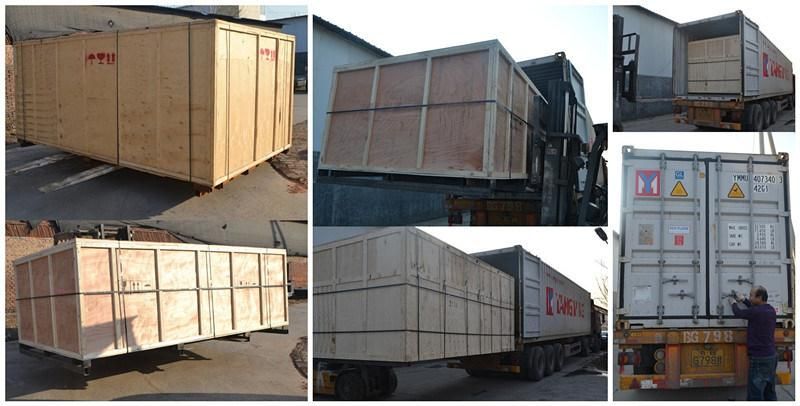

Packaging & Shipping



Packing size: 3300*1950*1950mm;

Gross weight: 1700kg

FAQ



1) This is the first time I use this kind of machine, is it easy operate?

There are English manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, please tell me the max working

area, materials for processing and the thickness for materials processing engraving

or cutting.

Then perfect suitable CNC router will be recommended

3) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

we will give you 24hours service from phone and Skype.

4) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly,

please tell us your port name. There will be best shipping freight and machine price

send to you

5)Payment terms

a. 30% by T/T in advance,70% by T/T before shipping b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.

6)Delivery terms

We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
