• Model NO.：SMF-515C
• Panel Thinkness：10-60mm
• Min.length panel：120mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Transport Package：Plywood Case
• Specification：1050*1080*1120mm
• Trademark：ZD
• Origin：China
• HS Code：84659400
• Production Capacity：4 Sets,Week

Basic Info.

Model NO. SMF-515C Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Transport Package Plywood Case Specification 1050*1080*1120mm Trademark ZD Origin China HS Code 84659400 Production Capacity 4 Sets/Week

Product Description

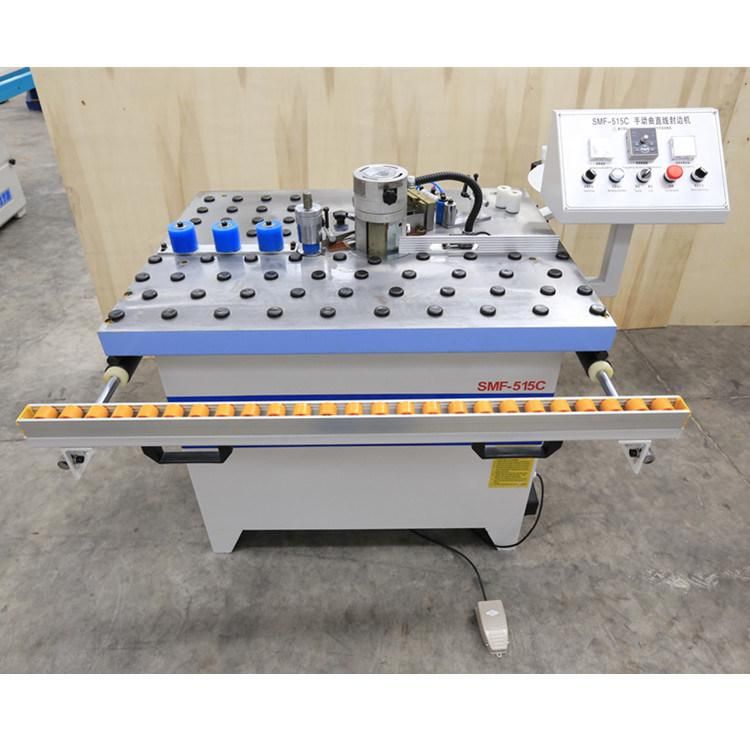

Woodworking Machinery Manual Edge Banding Machine



Technical Specifications:


Model	ZD-515A	ZD-515B	ZD-515C
Glue pot volume	1.0kg	3kg	3kg
Width of banding	10-50mm	10-60mm	10-60mm
Sending power	0.37kw	0.37kw	0.37kw
Heating power	1.8kw	1.8kw	1.8kw
Thickness of banding	0.15-3mm	0.15-3mm	0.15-3mm
Speed of adjustment	Stepless speed regulation	Stepless speed regulation	Stepless speed regulation
Shape of work piece	Straight & curve	Straight & curve	Straight & curve
Feeding speed	1-18m/min	1-18m/min	1-18m/min
Air pressure	>=4kg/m2	>=4kg/m2	>=4kg/m2
Weight	120kg	160kg	170kg
Size	1110*930*1050mm	800*1080*1120mm	1050*1080*1120mm

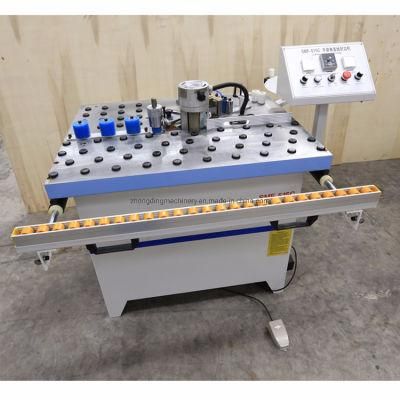

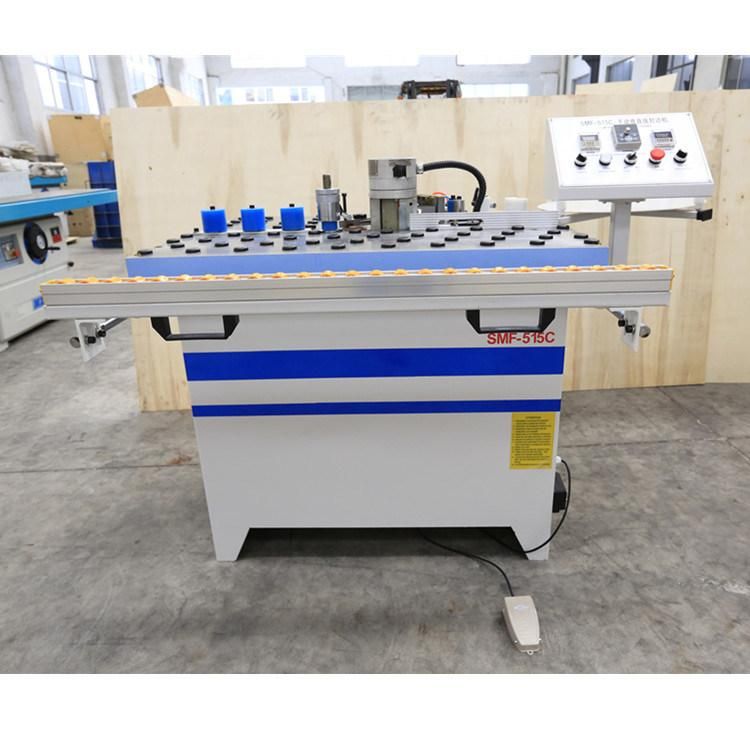

Detailed pictures:





Packaging & shipping:

package: Plywood case.




Payment: 30% T/T deposit, balance before shipment, or L/C at sight.


About us:






FAQ:

1. The MOQ is 1 set.
2. The delivery time is 15-20 days after deposit.
3. The voltage can be customized.
4. OEM service is available as we are factory.
5. Factory address: Wangtai twon, Jiaonan city, Qingdao, China. Welcome to visit us!



For more details, pls feel free to contact us.
