Wood Sander Planer Wide Belt Sander Machine Woodworking Machine
Qingdao Zhongding Machinery Co., Ltd.- Type：Belt Wood Sander
- Automatic Grade：Automatic
- Variable Speed：Variable Speed
- Certification：CE, ISO
- Customized：Customized
- Condition：New
Base Info
- Model NO.：ZDP-R-RP1000
- Color：Customized
- Gross Weight：3600kg
- Sliding Table：European Style
- Voltage：220V 1phase , 380V 3phase (Optional)
- Shipping Port：Qingdao
- HS：8465930000
- Size of Sanding Belt：1020*2020mm
- Working Air Pressure：0.6MPa
- Main Motor Power：41kw
- Feeding Speed：5-25m,Min
- Min. Working Length：500mm
- Max Working Width：1000mm
- Transport Package：Wooden Box
- Specification：1750*2450*2050mm
- Trademark：QDZD
- Origin：China
- HS Code：8465930000
- Production Capacity：500sets,Month
Description
Basic Info.
Model NO. ZDP-R-RP1000 Color Customized Gross Weight 3600kg Sliding Table European Style Voltage 220V 1phase / 380V 3phase (Optional) Shipping Port Qingdao HS 8465930000 Size of Sanding Belt 1020*2020mm Working Air Pressure 0.6MPa Main Motor Power 41kw Feeding Speed 5-25m/Min Min. Working Length 500mm Max Working Width 1000mm Transport Package Wooden Box Specification 1750*2450*2050mm Trademark QDZD Origin China HS Code 8465930000 Production Capacity 500sets/MonthProduct Description

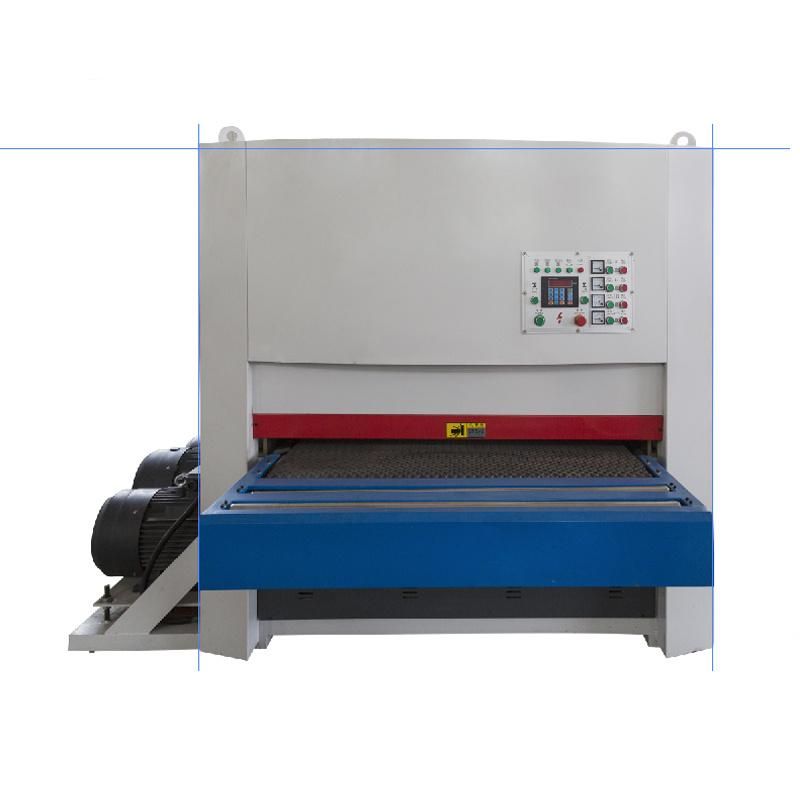

Wood Sander Planer Wide Belt Sander Machine woodworking Machine
Technical Parameters
| Model | ZDP-R-RP630 | ZDP-R-RP1000 | ZDP-R-RP1300 |
| Max working width | 630mm | 1000mm | 1300mm |
| Material thickness | 10-100mm | 10-100mm | 10-100mm |
| Min. Working length | 500mm(option400mm) | 500mm(option400mm) | 550mm(option400mm) |
| Feeding speed | 5-25m/min | 5-25m/min | 5-25m/min |
| Size of sanding belt | 650*1900mm | 1020*2020mm | 1320*2020mm |
| Total power | 29.5kw | 41kw | 81kw |
| Working air pressure | 0.6mpa | 0.6mpa | 0.6mpa |
| Volume of dust collecting | 6500m³/h | 15000m³/h | 15000m³/h |
| Speed of dust collecting | 25-30m/s | 25-30m/s | 25-30m/s |
| Overall dimension (L*W*H) | 1450*2450*2050mm | 1750*2450*2050mm | 2150*3000*2050mm |
| Weight | 3000kg | 3600kg | 4500kg |
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
The Workshop

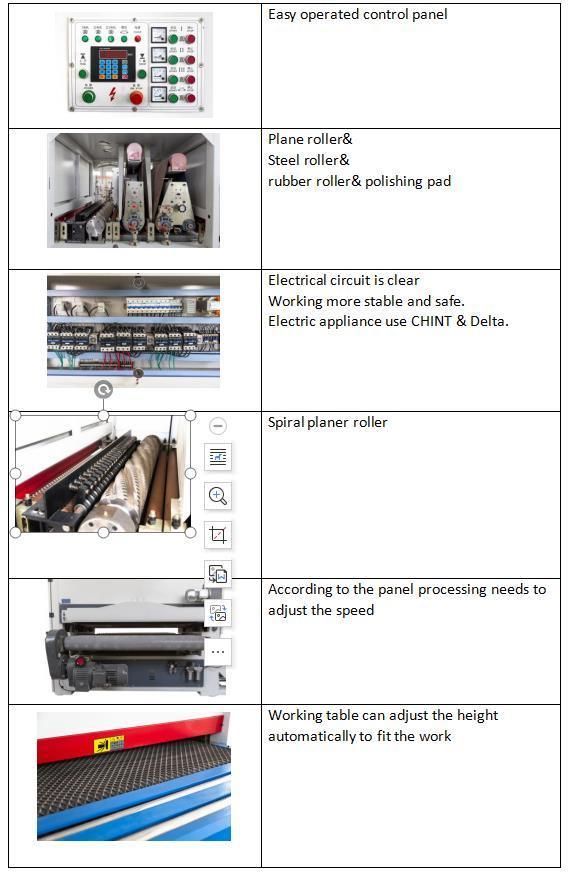

Product Details:
