• Model NO.：AG
• Warranty：2 Years
• Customized：Customized
• Condition：New
• Color：Multi Color
• Output：500 Kgs,Hour
• Motor：45 Kw
• Power Supply：380V 50Hz
• Pellet Size：6mm 8mm
• Weight：1300 Kgs
• Keywords 4：Wood Pellet Making Machine
• Keyword 1：Wood Pellet Line

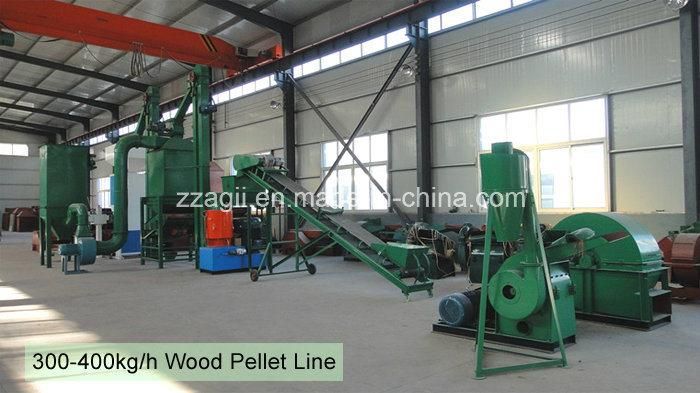

• Keyword 3：Wood Pellet Production Line
• Keywords 5：Biomass Pellet Line
• Keyword 2：Sawdust Pellet Line
• Transport Package：Wooden Case
• Specification：1* 0.45* 0.8 m
• Trademark：AGII
• Origin：China
• HS Code：8474802000
• Production Capacity：200 Sets Per Month

ModelCapacity
(kg/h)Motor
(kw)Pellet Size
(mm)Dimension
(m)Weight
(kg)KAF-200100-1507.5 kw6,8,101* 0.45* 0.8320KAF-250150-20015 kw1.2* 0.6* 1.3350KAF-300200-30022 kw1.3* 0.6* 1.3560KAF-350350-45030 kw1.4* 0.8* 1.2880KAF-450400-60045 kw1.8* 1* 1.651300


Advantages:

1.  CE certificate
2.  Mould and roller both made of alloy steel.
3.  Gearbox life without refueling.
5.  The quick-wear parts (die and roller) warranty more than 2.000 working hours.


Features:

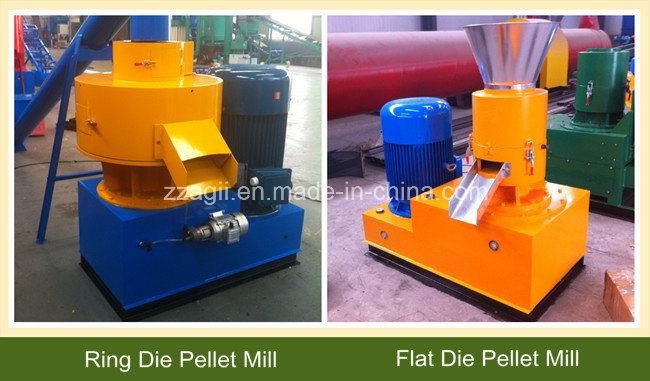

1. The flat die wood pellet mill machine are easier to clean than the ring die pellet mill.
2. Able to change die and roller faster and easily.
3. Small and lightweight, making small-scale production possible.
4. Visibility. It is possible to view into the chamber when pelletizing, so you can solve any problem in time.




Wood Pellets:
 Diameter6-12 mmDensity>1.12g/cm3length<40mmMoisture content<7.32%Ash content<3.38%Sulfur content<0.05%Calorie>4953 Kcal/kgPacking25kg/bagThermal efficiency                >=85%Burning rate>=95%
Wood pellets fuel is a limitless and environment friendly fuel source. It is a clean-burning and cost stable home heating alternatives. To burn wood pellet is a good way to divert millions of tons of waste from landfills and timber industry and turn it into energy. Their free-flowing characteristics make them easy to handle and ideal for automatic heating systems.

wood pellet fuel is renewable and does less harm to our environment. It does not add more carbon dioxide to the atmosphere as it absorbs the same amount of carbon in growing as it releases when consumed as a fuel.

Wood pellet fuel is an important source of energy and the most important fuel worldwide after coal, oil and natural gas. Anybody who is involved in this line of business is actually making the contribution to the earth, the home land of the human beings.




Application of biomass wood pellet mill:

1. Widely used in households, farming and industries.

2. Mainly suitable for producing feed pellets, fuel pellets, fertilizer pellets,etc.

3. Applied to different grains such as corn, wheat, sorghum, and any type of agro-forestry waste: crops straw, husks, vines, wood chips, etc. (Energy-saving & Environment-protecting)

4. Size range of making wood pellets: Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12mm
