• Model NO.：QMB412D
• Motor Power：＞10Kw
• Cutter Shaft：4
• Spindle Speed：＞5000rpm
• Process Type：Medium-Sized Processing
• Certification：CE, ISO
• After-sales Service：3 years
• Certificate：Ce & ISO
• Transport Package：Plywood Carton
• Specification：2960x1450x1660
• Trademark：Qingcheng
• Origin：China
• HS Code：84659200

Basic Info.

Model NO. QMB412D Motor Power ＞10Kw Cutter Shaft 4 Spindle Speed ＞5000rpm Process Type Medium-Sized Processing Certification CE, ISO After-sales Service 3 years Certificate Ce & ISO Transport Package Plywood Carton Specification 2960x1450x1660 Trademark Qingcheng Origin China HS Code 84659200

Product Description

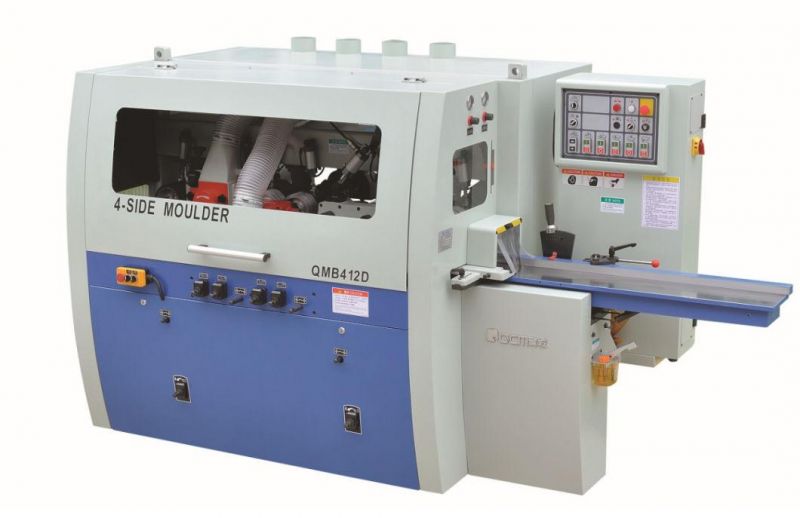

High-Speed 4-side Moulder/Four-Side Moulder/Woodworking planer/Moulder Machinery For Solid wood
QMB412D


Specifications	Unit	QMB412D
Working width	mm	20-120
Working thickness	mm	8-100
Min.working length(intermittent/continuous)	mm	450/180
Dia of spindle	mm	Φ40
Feeding speed	m/min	8-33
Rotation speed of spindle	r/min	/
The First spindle speed	r/min	6800
Other spindle speed	r/min	8000
Cutter dia of first bottom cutter	r/min	Φ125
Left/Right vertical cutter	mm	Φ115-Φ140
The first upper cutter	mm	Φ105-Φ140
The Second upper cutter	mm	/
Back bottom cutter	mm	/
The Second right vertical cutter	mm	/
Total power	kW/HP	16.75/23
The First bottom cutter	kW/HP	3/4
Left vertical cutter	kW/HP	3/4
Right vertical cutter	kW/HP	3/4
The first upper cutter	kW/HP	4/5.5
The second upper cutter	kW/HP	/
The second bottom cutter	kW/HP	/
The second right vertical cutter	kW/HP	/
Feeding motor	kW/HP	3/4
Beam lifting motor	kW/HP	0.75/1
Air supply pressure	MPa	0.3-0.6
Vacuum port diameter	mm	4*Φ120
Overall dimensions	mm	2960x1450x1660
Weight	kg	2300

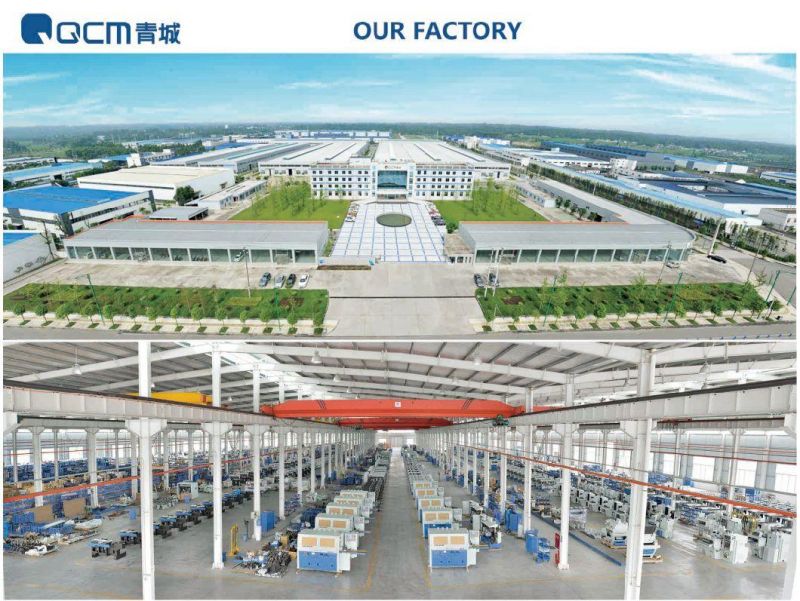

Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.

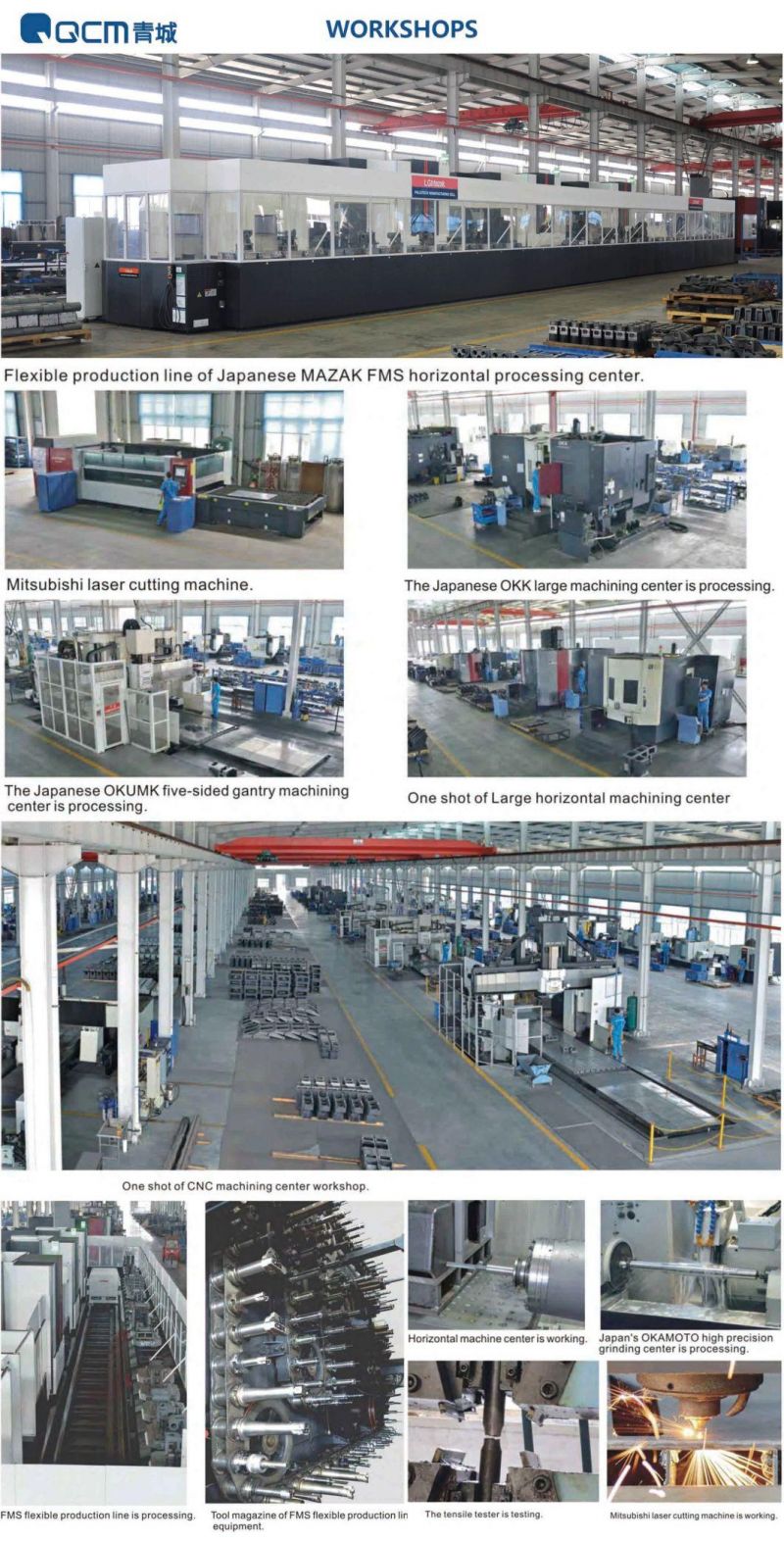

It's been 70years since we have devoted our-self to the development and manufacturing of woodworking machinery. As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.

Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.





FAQ

Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 70 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.

2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, Warranty of your products?
Its warranty is 12 months.

5, What's your leading time?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.

7, What's your delivery term?
---FOB shanghai/Ningbo
