• Model NO.：JZ-C-118
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Dimensions：9000+5000*1300mm
• Power：43.5kw
• Weight：3.5t
• Blade Linear Velocity：90-120m,S
• Blade Diameter：305mm
• Thickness of Procession：5-60mm
• Feeding Speed：40-70m,Min
• Lead Time：Within 20 Days
• Long Saw Cutting Size：2440mm
• Lateral Saw Cutting Size：1220mm
• Work Methods：Full Automatic
• Transport Package：Container
• Specification：steel
• Trademark：JZ
• Origin：China
• HS Code：8465910000
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. JZ-C-118 After-Sales Service Engineers Available to Service Machinery Overseas Dimensions 9000+5000*1300mm Power 43.5kw Weight 3.5t Blade Linear Velocity 90-120m/S Blade Diameter 305mm Thickness of Procession 5-60mm Feeding Speed 40-70m/Min Lead Time Within 20 Days Long Saw Cutting Size 2440mm Lateral Saw Cutting Size 1220mm Work Methods Full Automatic Transport Package Container Specification steel Trademark JZ Origin China HS Code 8465910000 Production Capacity 1000 Sets/Year

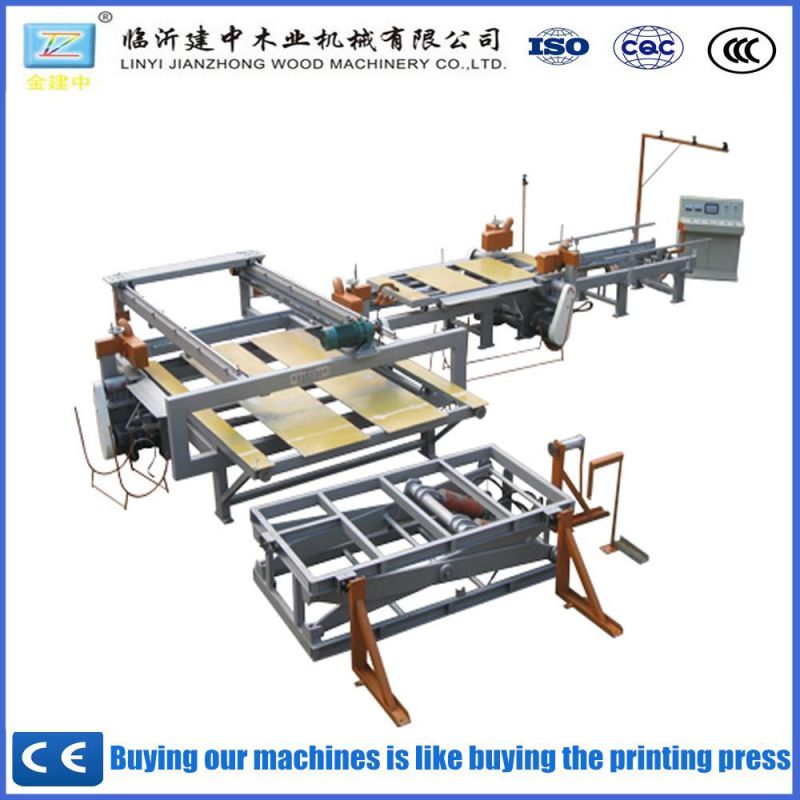

Product Description




Brife Product Description:
1.Our plant Saw-edge microcomputer control, high degree of automation, the use of automatic stacking.

2.saving manpower and resources.

3.Infrared control, sawing precision, small error, high degree of automation,.

4.large output the automatic saw by infrated positioning, pre plate device, vertical saw car, sawn lengthwise dolly pressing mechanism.

5.sawn lengthwise car chain transmission part, a slitting saw head, crosscut frame, crosscut car, cross cutting saw head.

6.crosscut car chain transfer part, automatic stacking device, the whole action by the PLC control.

7.the realization of automatic cutting and stacking of the saw, divided into 3*6 feet, 4*8 feet two specifications.

8.power 5.5kw, 7.5kw, 11kw three specifications.

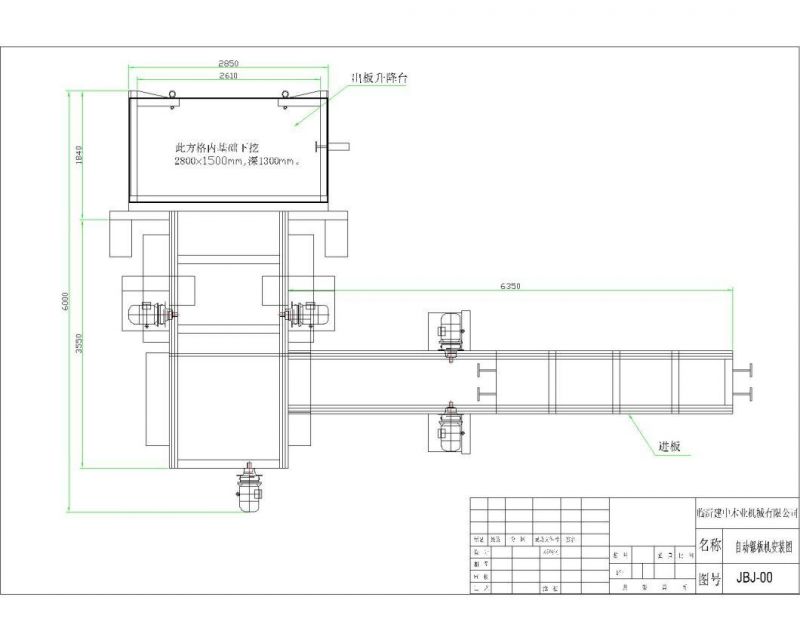

 Drawing:



Advantage:

1.The machine adopts pre-load device, just need two workers, one work shift can produce 3000-4000Pcs 16mm plywood.

2.The main electric units adopt famous brand Omron, Schneider, safety and reliable.

3.The operating system is accurately controlled by PLC to achieve the high precision sawing size and automatic stacking, reduce the labor's intensity.

4.It has the automatic saw waste remover device.

Product Parameters:


Long saw cutting size	1880mm-2440mm
Lateral saw cutting size	910mm-1220mm
Working speed	40-70m/min
Power	49KW
Saw blade dimension	Diameter 305mm,inner diameter 25.4mm
Capacity	8-12pcs/min
The working style	Infrared ray guidance
Feed way	Full automatic
Work methods	Full automatic
Weight	5.5T
Overall dimension	9000*6000*1300mm

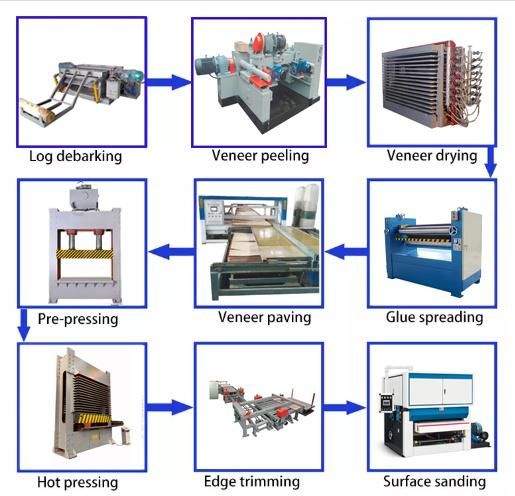

Production Line:

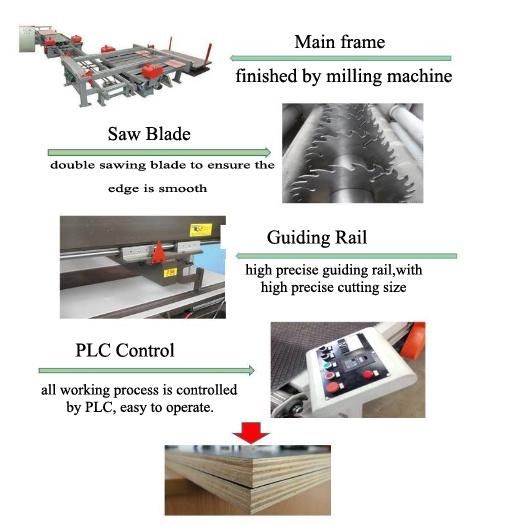

Detail images:

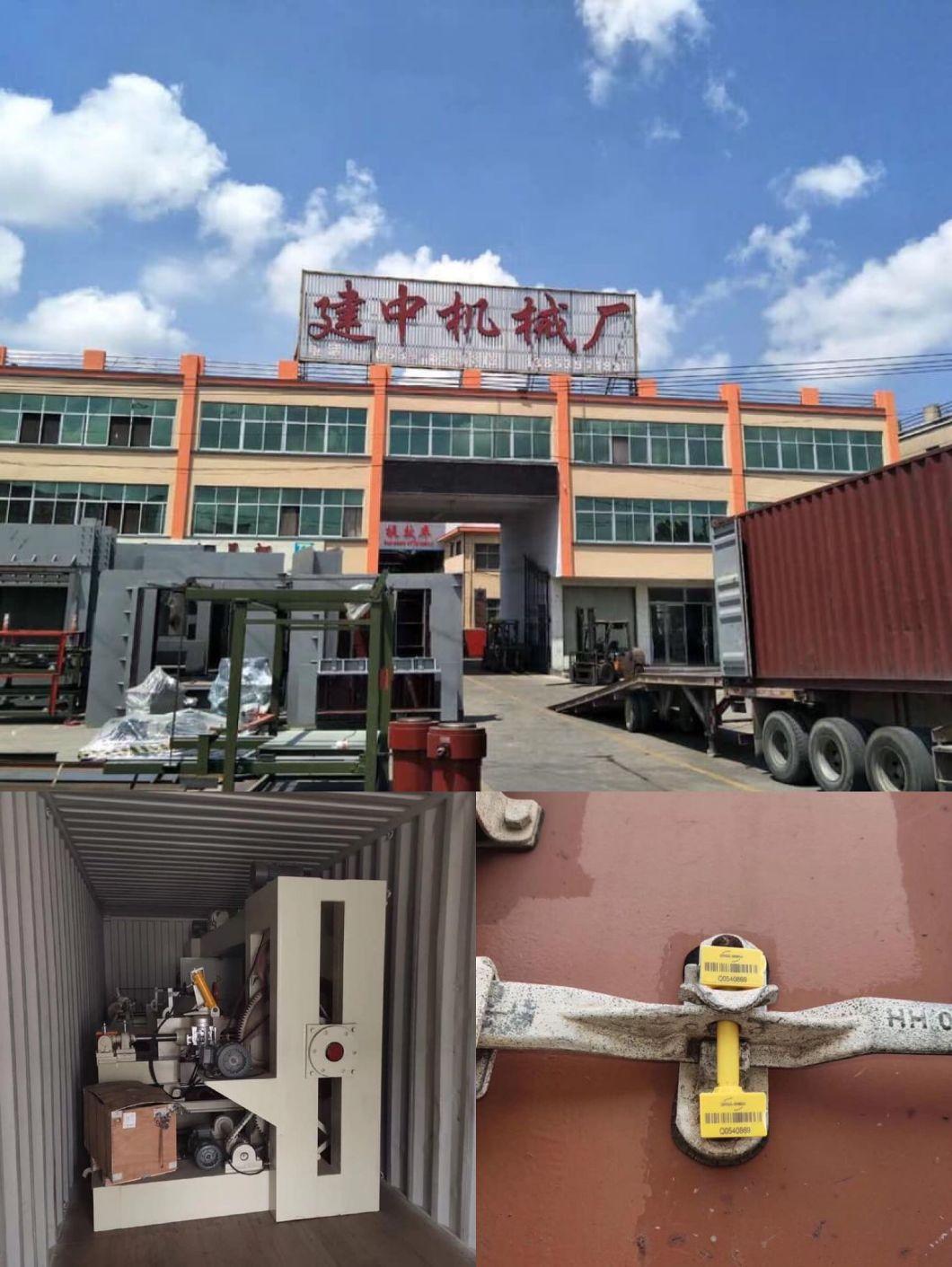

Packing&Shipping:





Serivice:

There are complete Pre-sale services, After-sales service, Technical service and communication, Delivery. Our staff of sales and technical support is available to help you in selecting the right equipment for your application; Also according to the actual requirements provide solutions with clients.

1. All kinds of mold can be made by customer's requirements.

2. All price are based on FOB, QINGDAO, China.

3. Payment: by T/T 30% down payment, 70% upon mchinery completion.

4. Delivery: After finishing all the payment .

5. All the parameters above just for reference, for they are updating all the time.

6. Package: Standard packing.

7. Warranty: All the machine enjoys one year's warranty, in this period.

Any problems of machine, please feel free to contact us. We will try our best to make it.

8.Engineers available to service machinery overseas;

For the installation, seller will send the drawing for fabrication on site. Seller shall send
engineers to guide installation. Buyer shall supply all the necessary help during
installation. Air tickets and accommodation will be borned by buyer, our engineers should be paid 100USD per day.

By the way,our product can be customized according to customer requirements,I am very happy to rechieve your consultation.

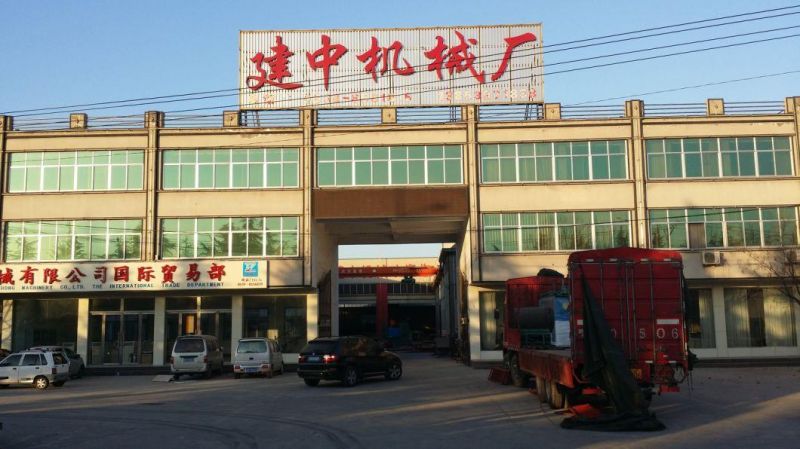

About us:
