• Model NO.：ZD1325
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659900
• Production Capacity：500sets,1month

Basic Info.

Model NO. ZD1325 Trademark QDZD Origin Qingdao HS Code 84659900 Production Capacity 500sets/1month

Product Description

Woodworking CNC router with line tool magazine

 Features:
 Engraving, drilling, cutting, leading edge, milling and so on, 12 tools, the tool change process is uninterrupted and automated.
 Taiwan Baoyuan intelligent control system, the control interface design is humanized, fool-like operation, the operator can be employed through simple training.
No skilled workers are needed. The machine moves quickly and quickly, helping you achieve a leap in productivity.
 This machine adopts HQD 9KW power air-cooled spindle, full servo drive system, original electrical components and other components, and the performance is stable.

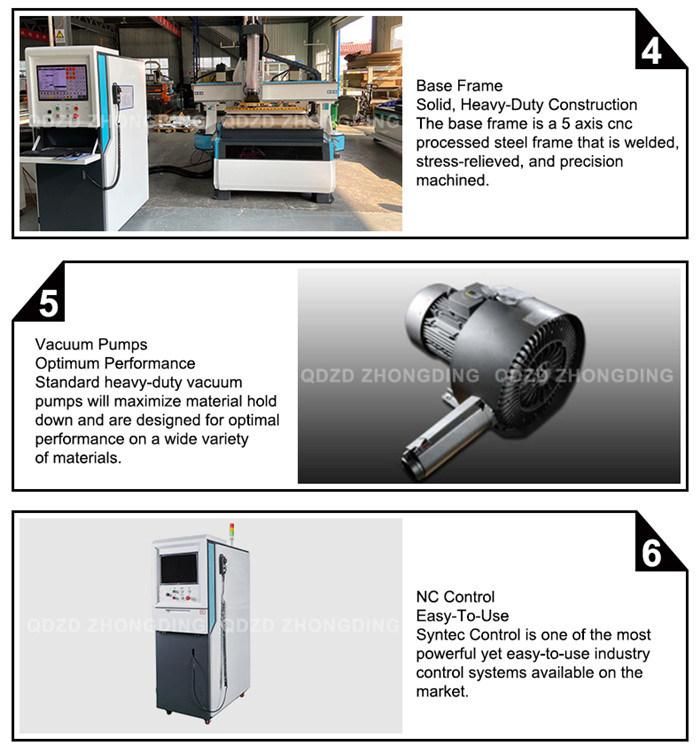

 The table top is a vacuum adsorption table, which can strongly adsorb materials of different areas. The small plates are processed without displacement, the processing surface is smooth, and the plate size is accurate.
 Electric oil filling, automatic oiling according to time setting, ensuring lubrication of the slider screw guide rail and prolonging service life.
 Taiwan high-precision square linear guide, high precision, long service life, large contact surface, strong load carrying capacity, and the use of vertical rail technology can better ensure the stability of operation.

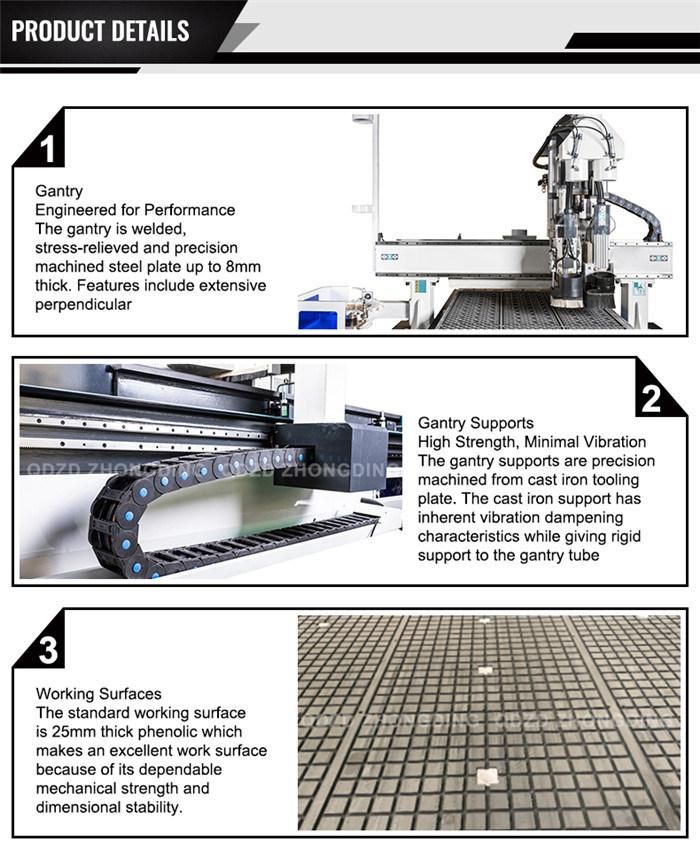

 Reinforced thickened heavy gantry, steel plate processed by precision cutting and planer, plus welding, equivalent to secondary tempering treatment, ensuring long-lasting gantry and no deformation.
 The whole cast iron side plate is treated with high temperature tempering to prevent the side plate deformation from affecting the Y axis travel accuracy.

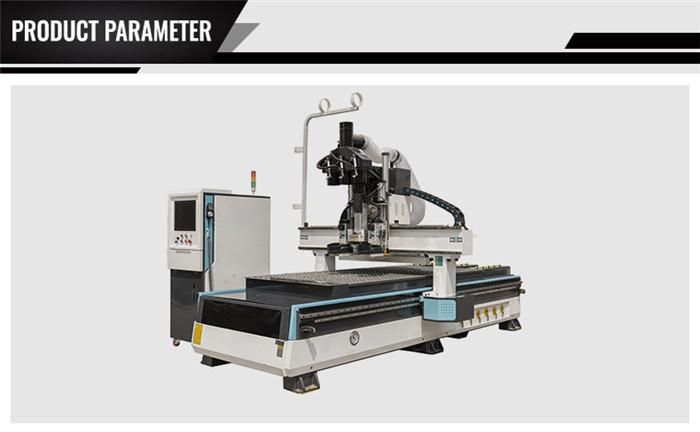

 ZD1325 - Atc cnc router with disc round tool magazine

Model	ZD1325 - Atc cnc router with disc round tool magazine
Stroke	1300*2500*280
Platform size	1380x2750mm
X, Y, Z structure	Z screw, X, Y rack
Empty line speed	80000mm/min(80 m)
Speed of work	25000mm/min(25 m)
Precision	≤0.05mm
Repeat positioning accuracy	≤0.02mm
Guide	Taiwan TBI25 square track
Spindle	HQD9KW air-cooled tool change spindle
Operating mode	Kane 1500 watt high power pure servo absolute drive motor
Operating Voltage	AC380V/50Hz
Tool	12 tools
Operating system	Beijing Kai Endi Processing Center dedicated control system
Net weight	3000kg
Pushing system	Automatic processing after processing
Tool setting system	High precision automatic tool setting instrument
